Engine Wire Harness




Connector and Harness Locations

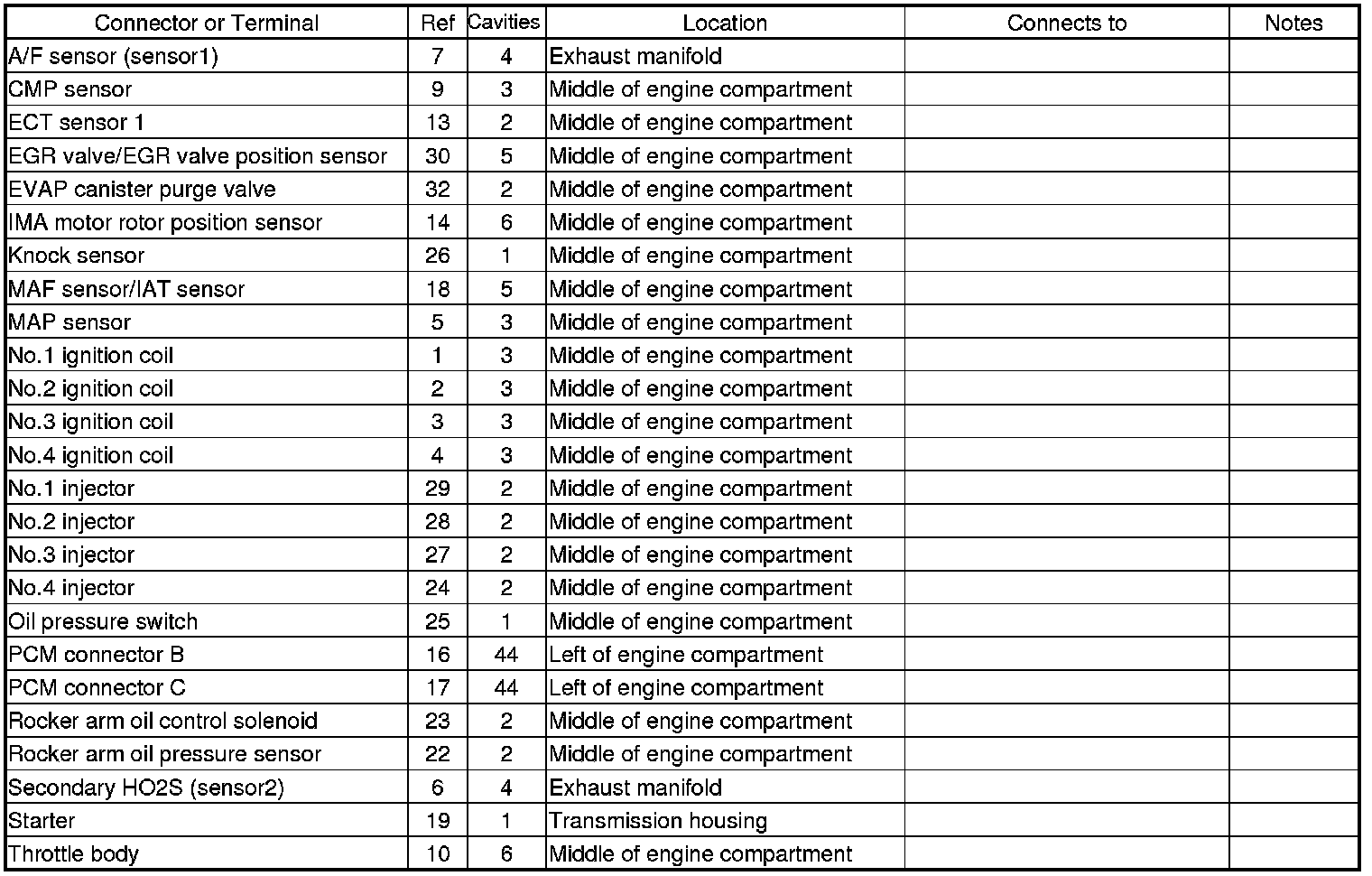

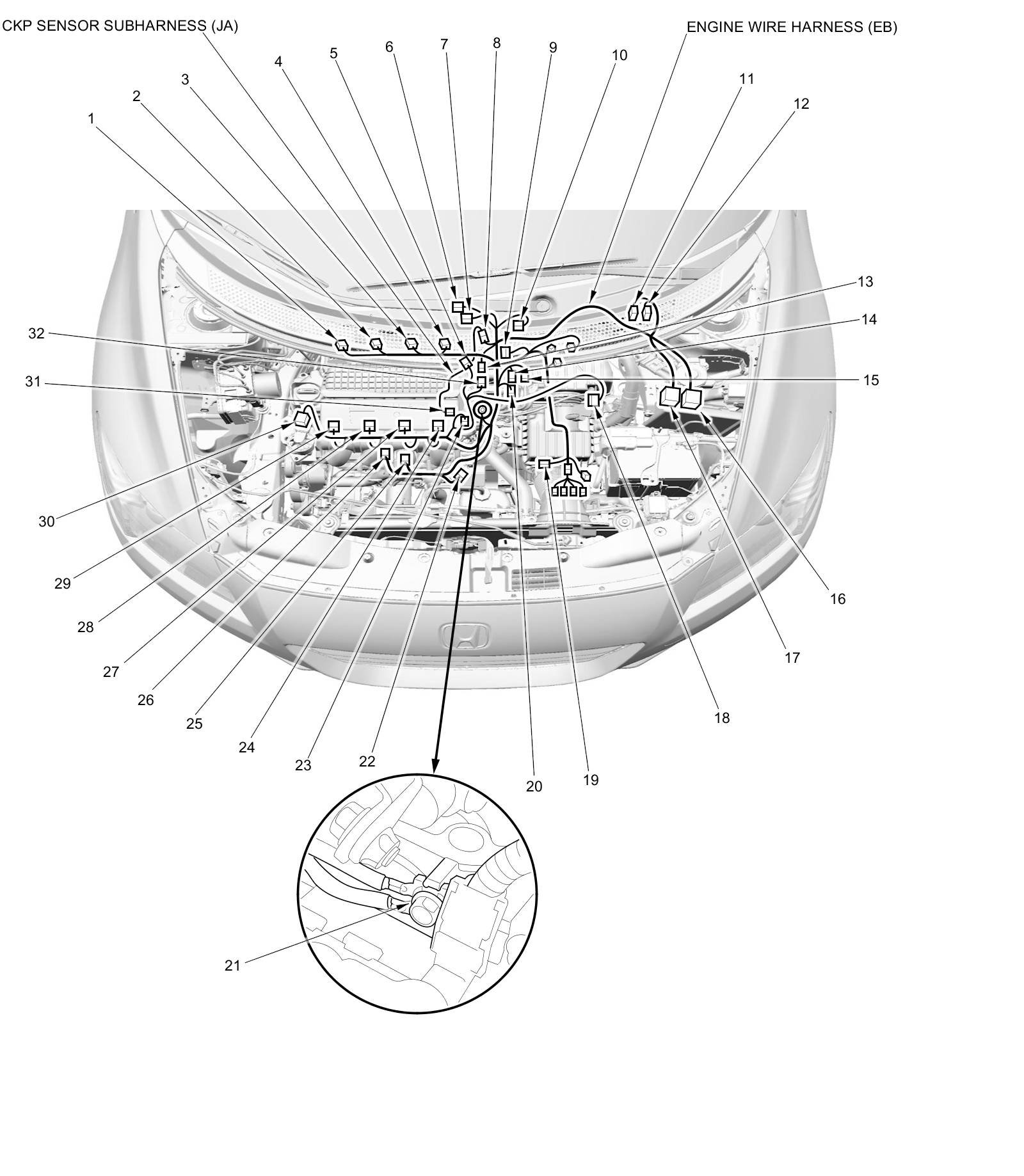

Engine Wire Harness (M/T) (EB)

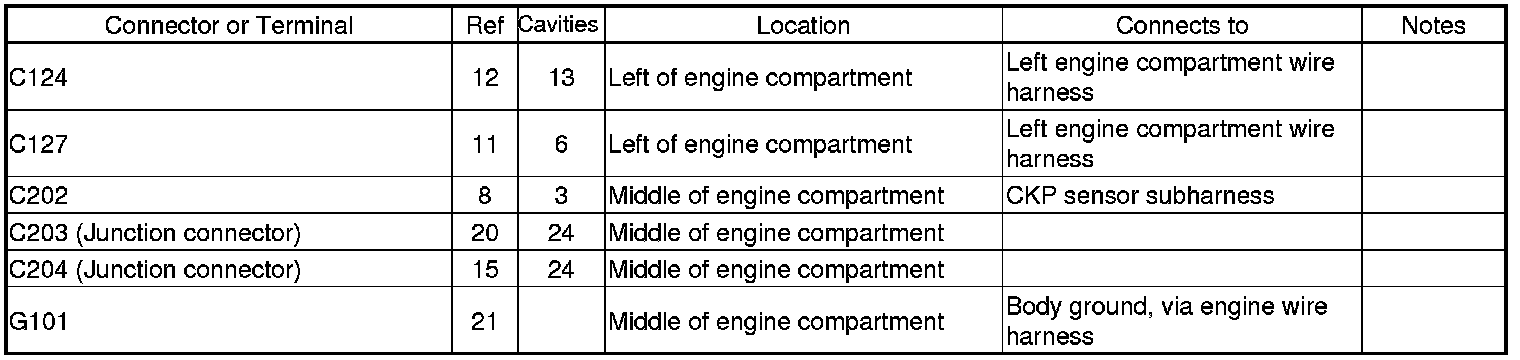

Engine Wire Harness (M/T) (EB) (cont'd)










Engine Wire Harness (CVT) (engine section) (EB)










Engine Wire Harness (CVT) (engine section) (EB) (cont'd)

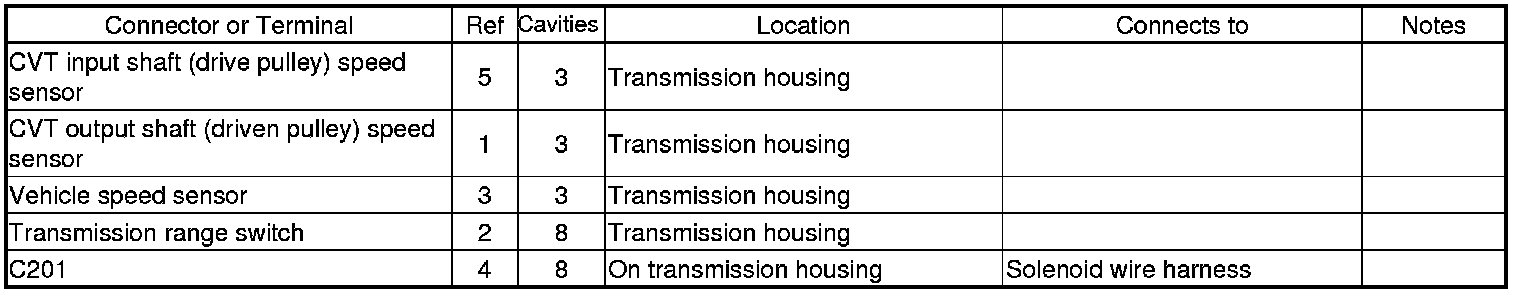

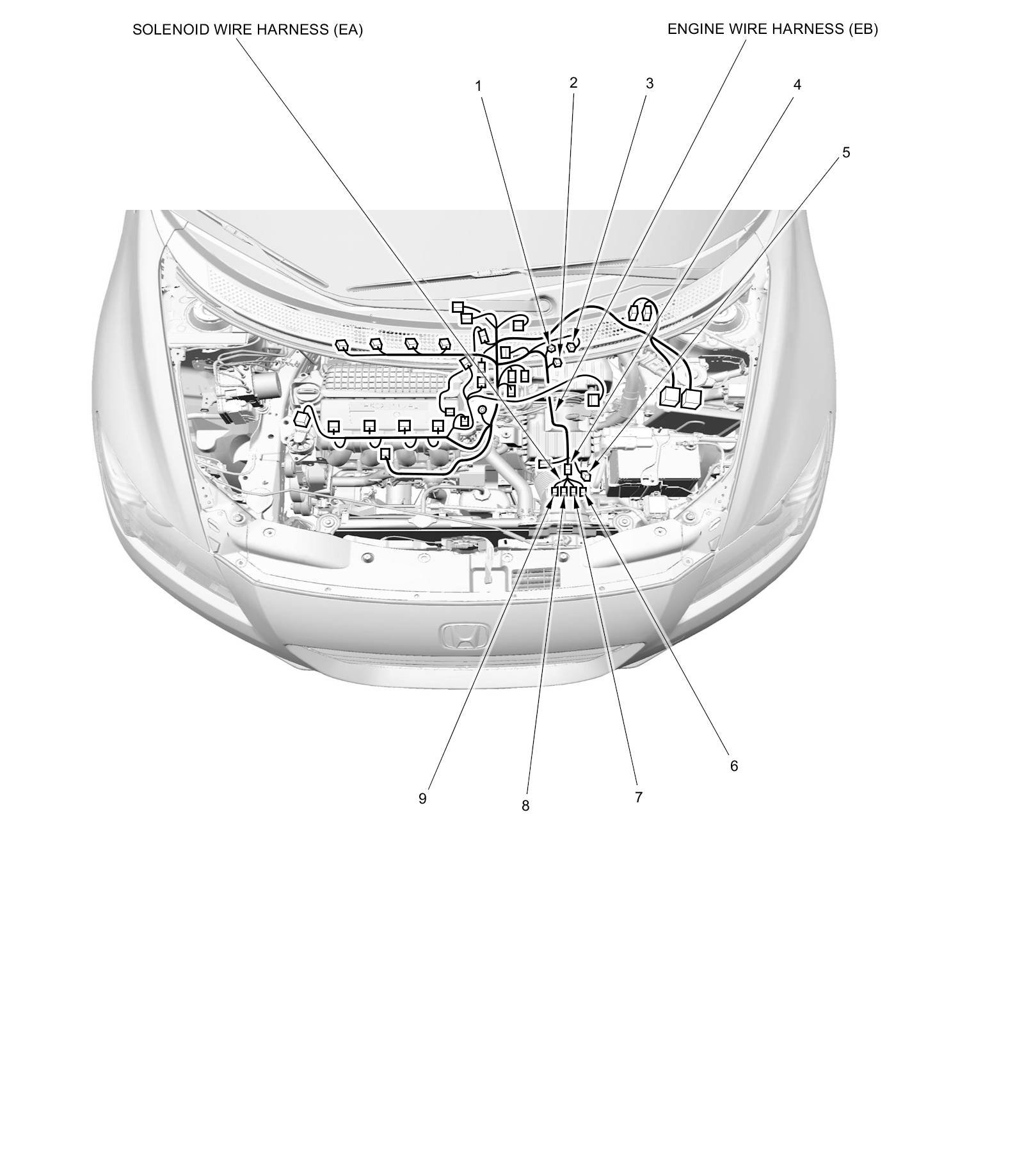

Engine Wire Harness (CVT) (transmission section) (EB)
