Left Engine Compartment Wire Harness




Connector and Harness Locations

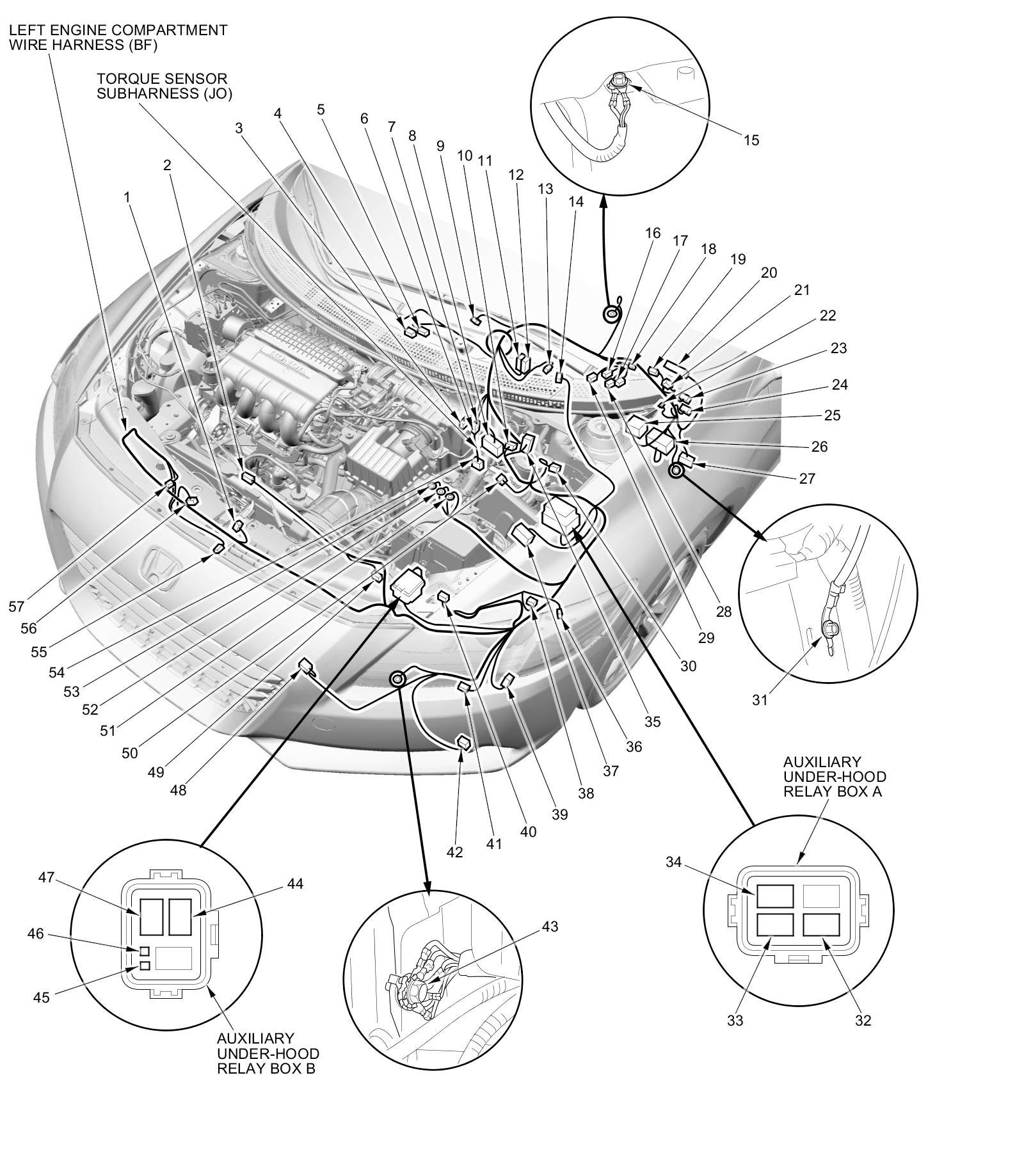

Left Engine Compartment Wire Harness (BF)

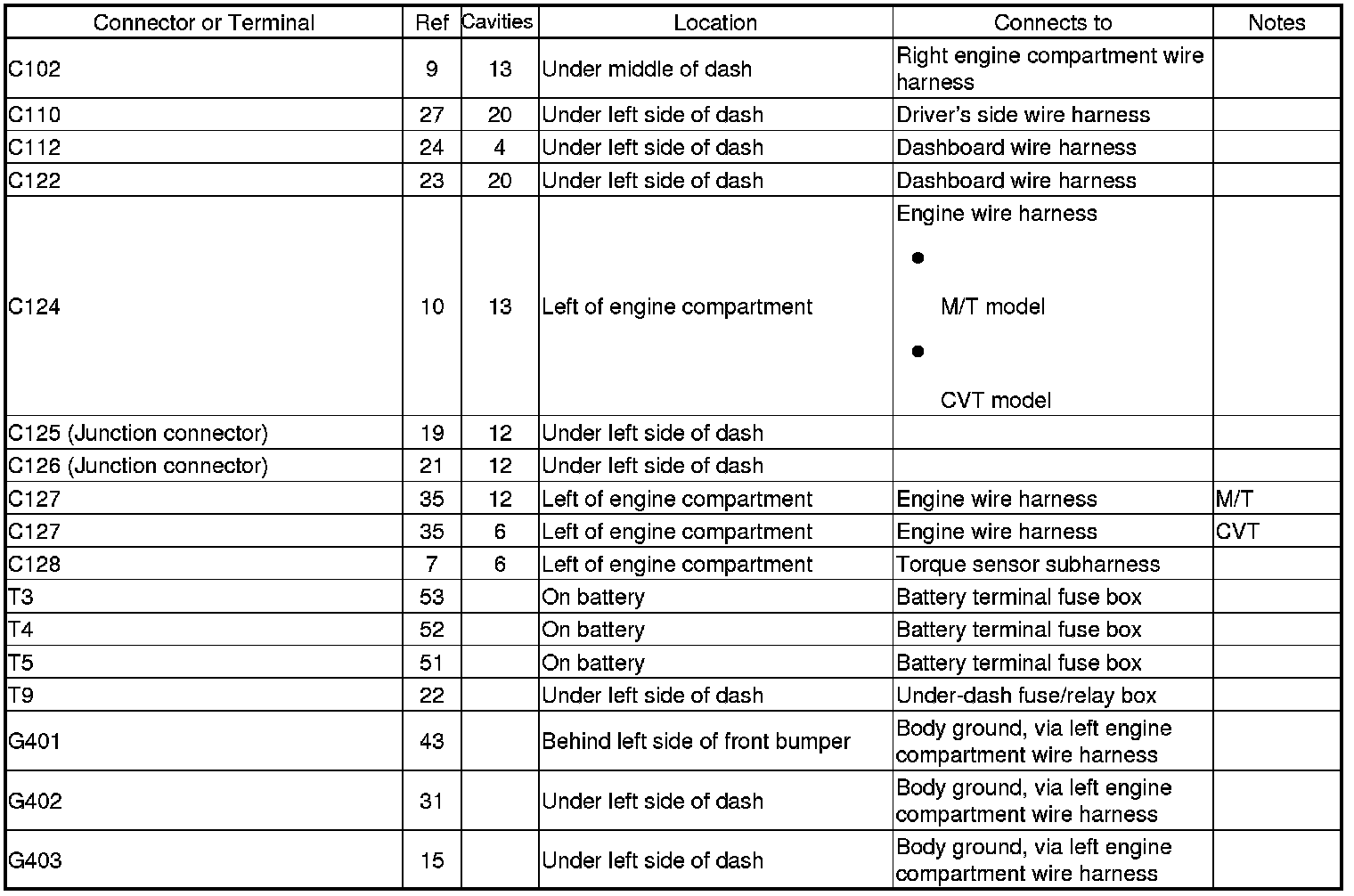

Left Engine Compartment Wire Harness (BF) (cont'd)














Left Engine Compartment Wire Harness (BF) (cont'd)
