Right Engine Compartment Wire Harness
Right Engine Compartment Wire Harness
Connector and Harness Locations

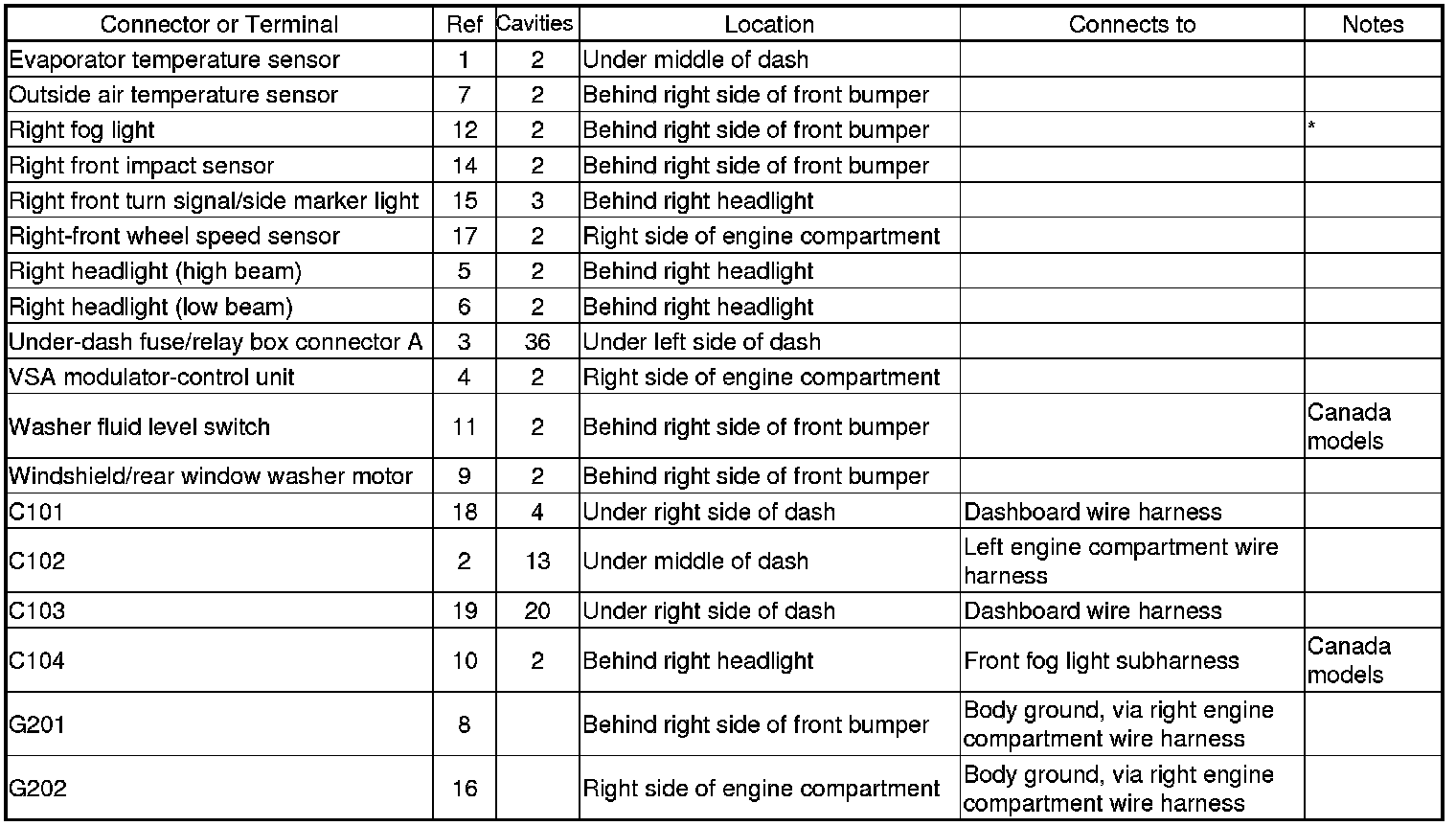

Right Engine Compartment Wire Harness (BA)
