Clutch: Description and Operation

Clutch System Description

Clutch Pedal Position Switch

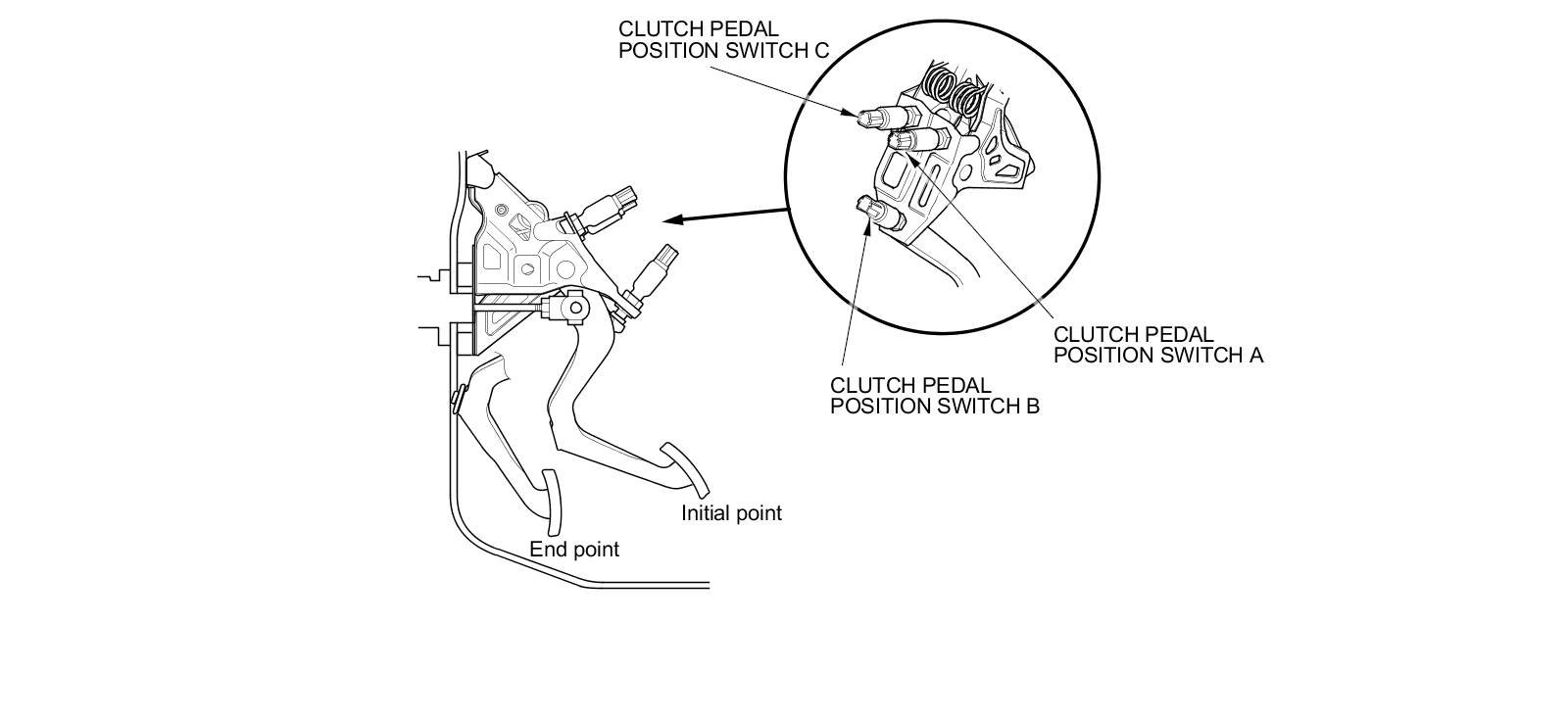

The clutch pedal has clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C installed.

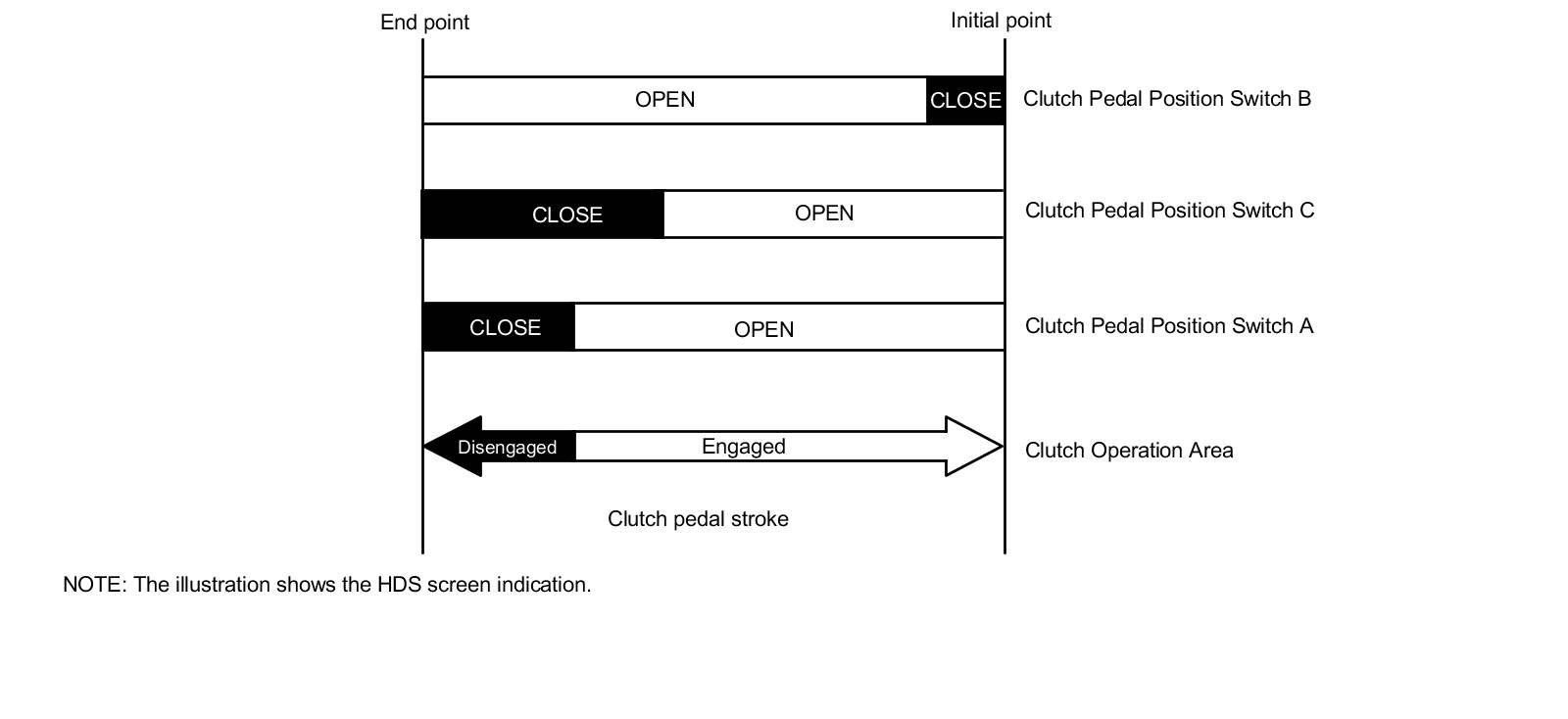

- Clutch Pedal Position Switch A (clutch interlock operation): Turned ON (CLOSE) when the pedal position is within the area where clutch is disengaged.
- Clutch Pedal Position Switch B (cruise control): Turned OFF (OPEN) when the clutch pedal is pushed down.
- Clutch Pedal Position Switch C (shift indicator operation): Turned ON (CLOSE) when the clutch pedal is about to be halfway through its stroke.
