Washer Fluid Level Switch Test

Washer Fluid Level Switch Test

Canada models

1. Remove the front bumper center upper beam Front Bumper Center Upper Beam Replacement.

2. Remove the front bumper Front Bumper Removal / Installation.

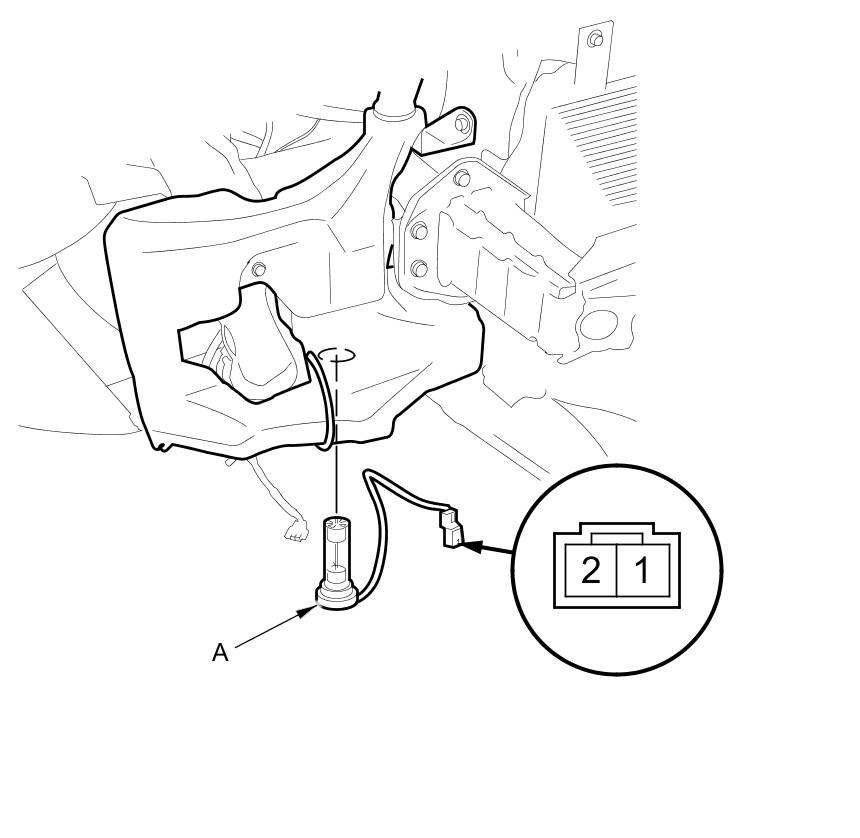

3. Remove the washer fluid level switch (A) from the washer reservoir.

NOTE: Fluid may flow out of the opening.





4. Check for continuity between terminals No. 1 and No. 2 in each float position.

- There should be continuity when the float is down.
- There should be no continuity when the float is up.

5. If the continuity is not as specified, replace the switch.
