Automatic Transmission DTC Troubleshooting Index

Trans/ Driveline

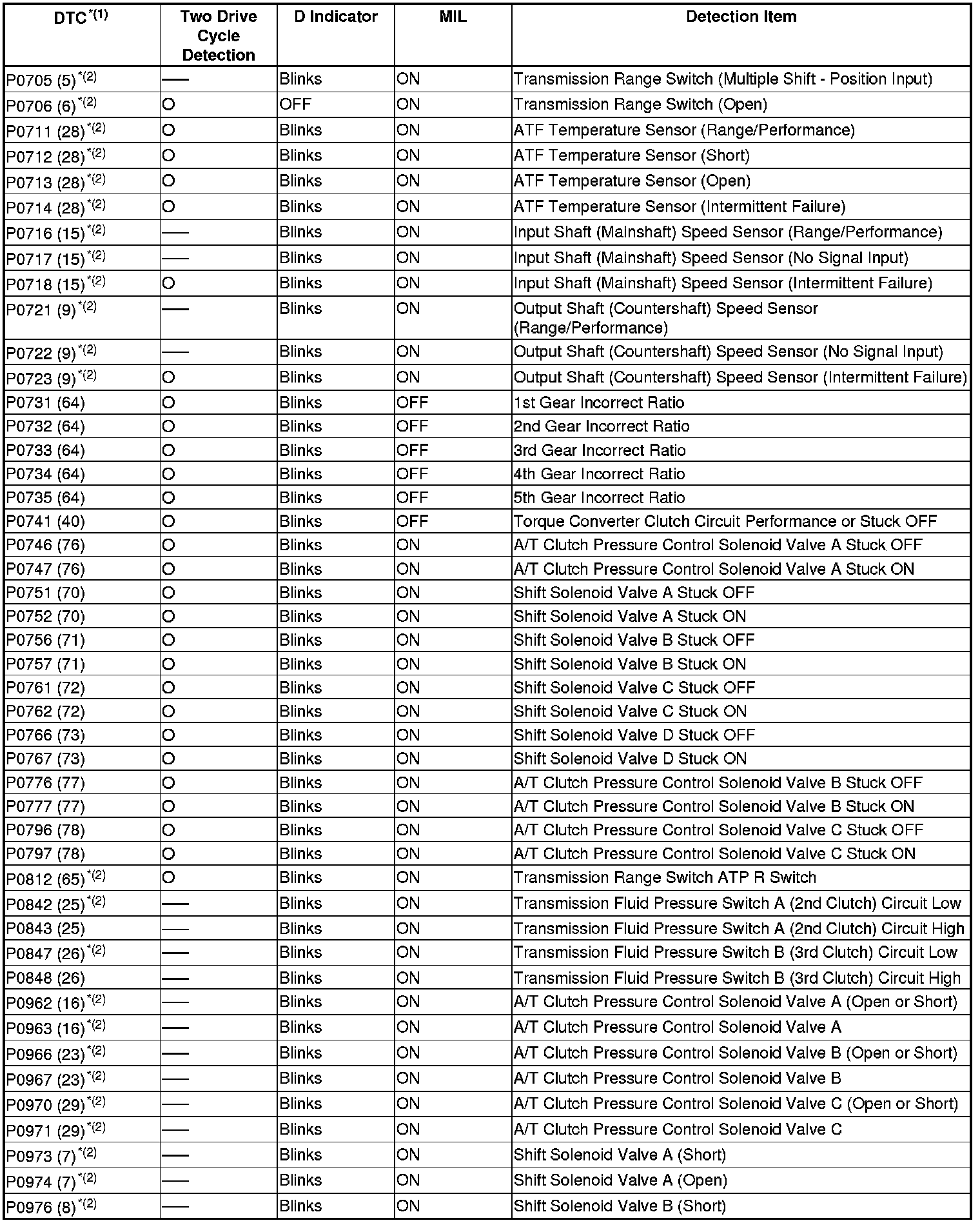

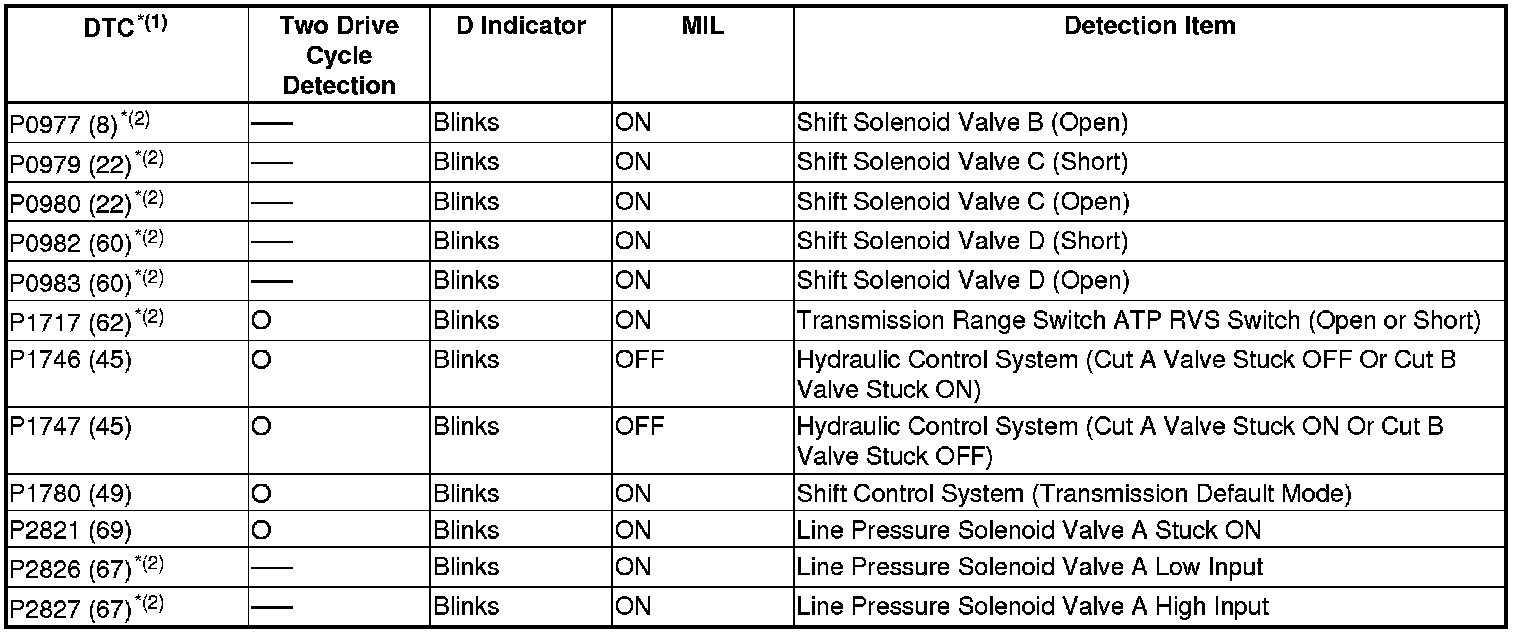

Automatic Transmission DTC Troubleshooting Index

Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review the General Troubleshooting Information How To Troubleshoot The A/T System.










NOTE:
*(1): The DTC in parentheses is the flash code the D indicator indicates when the data link connector (DLC) is connected to the HDS, and in the SCS mode.
*(2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
