SRS DTC Troubleshooting Index

Driving Support & Restraints

SRS DTC Troubleshooting Index

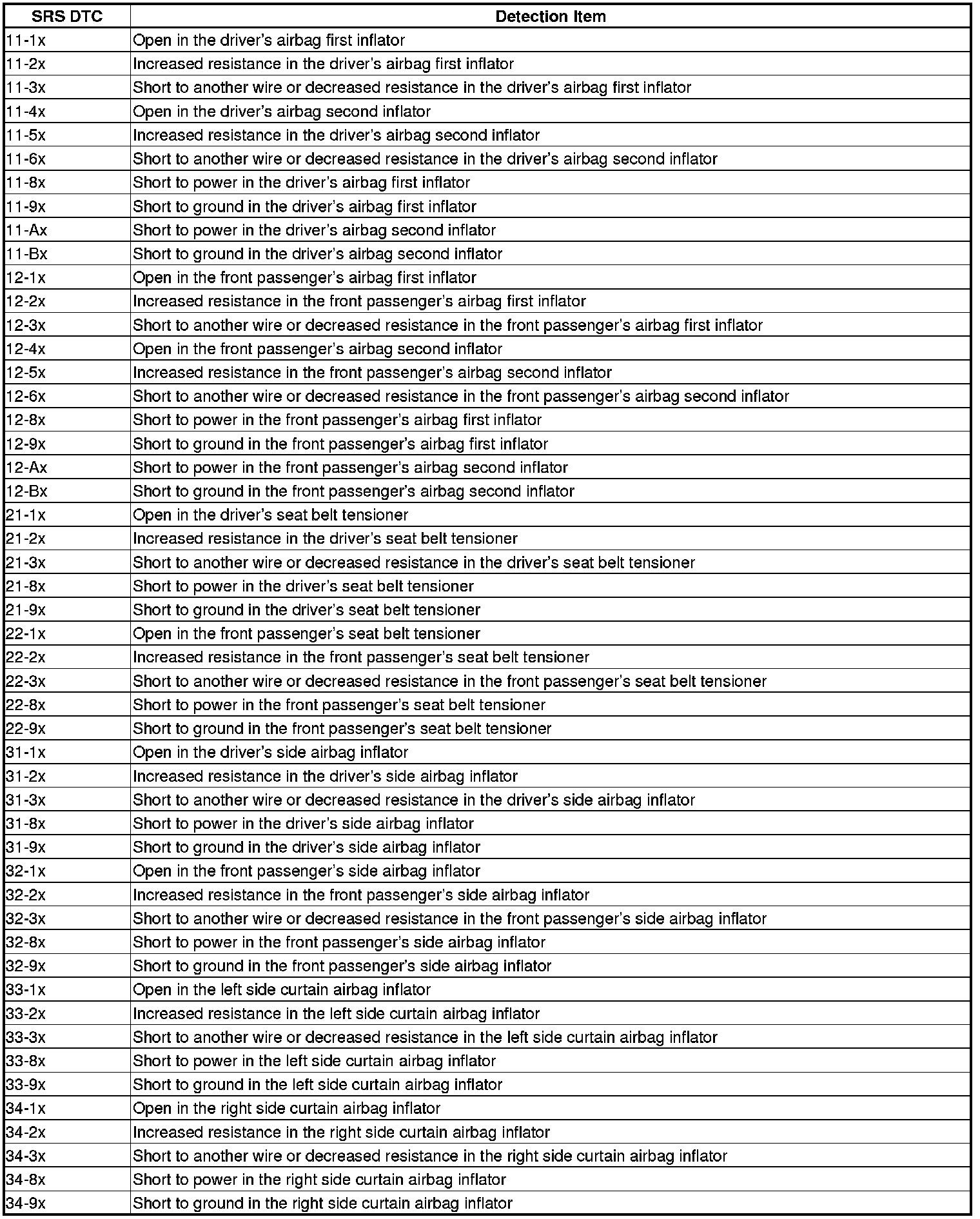

NOTE: The "x" at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you may also see on the HDS display. The alphanumeric character is unrelated to your DTC troubleshooting; it is used by the SRS unit manufacturer.

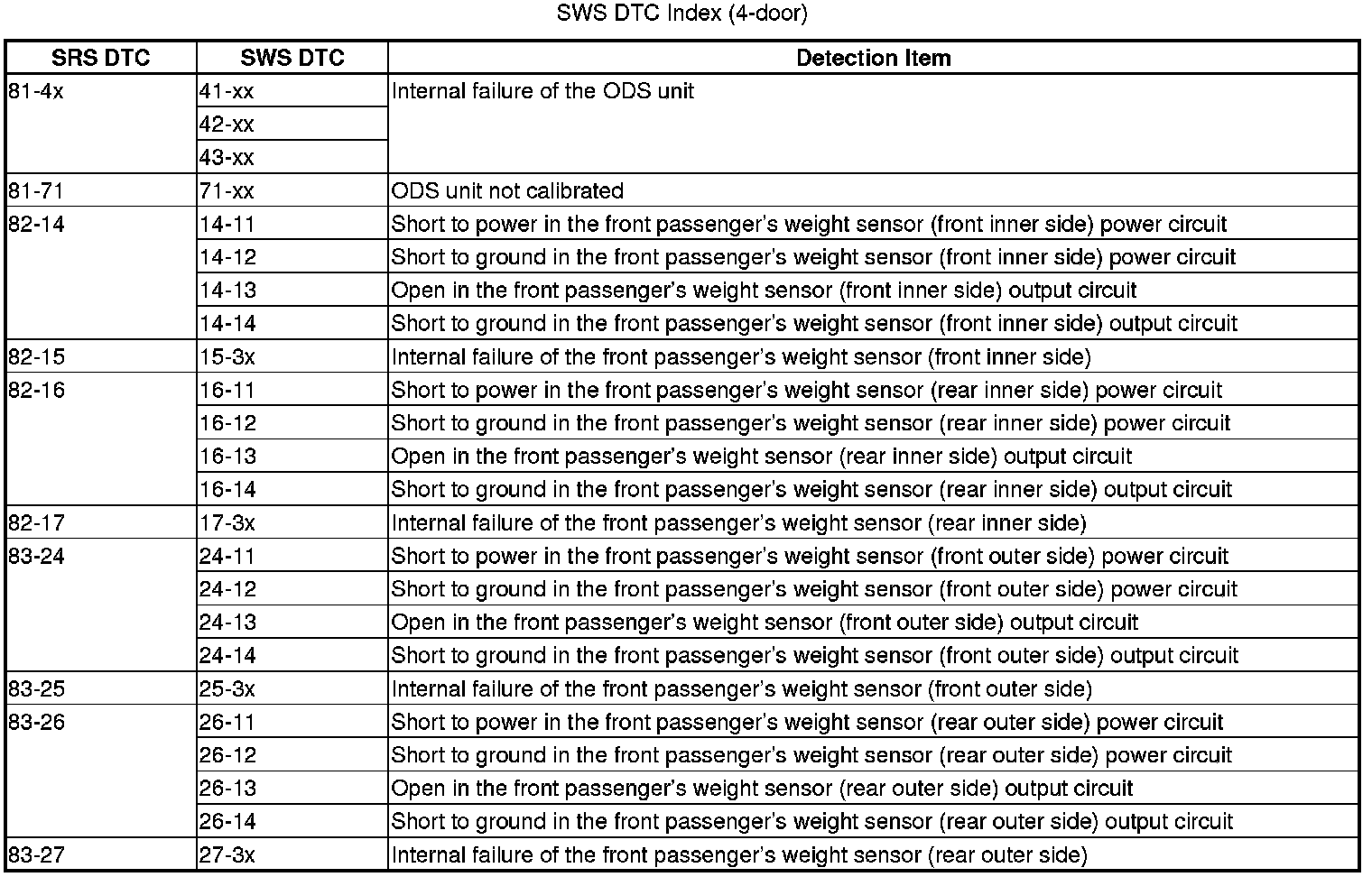

Only read DTCs from the SRS menu, not from SWS menus unless instructed to check SWS DTCs. SWS (ODS unit) DTCs are subcodes of SRS unit DTCs. Only troubleshoot the corresponding SRS DTCs. These SWS DTCs are cleared when you turn the ignition switch to LOCK (0).





NOTE: The "x" at the end of each DTC denotes a numeric character (0 thru 9), or an alpha character (A thru F) that you may also see on the HDS display. The alphanumeric character is unrelated to your DTC troubleshooting; it is used by the SRS unit manufacturer.





NOTE: The "x" at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you may also see on the HDS display. The alphanumeric character is unrelated to your DTC troubleshooting; it is used by the SRS unit manufacturer.
