Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter Removal and Installation

Removal

1. Glove Box - Move

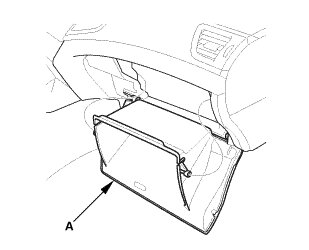

1. Lower the glove box (A).

2. Dust and Pollen Filter

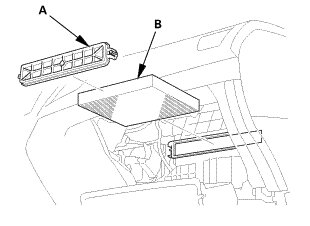

1. Remove the lid (A).

2. Pull out the dust and pollen filter (B).

Installation

1. Dust and Pollen Filter





1. Install the dust and pollen filter (A).

2. Install the lid (B).
NOTE: Make sure there is no air leaking out of the blower unit.

2. Glove Box - Move





1. Install the glove box (A).
