Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Locations
>>

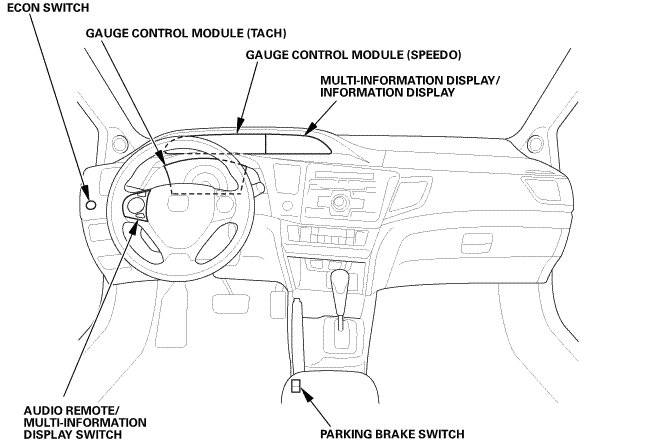

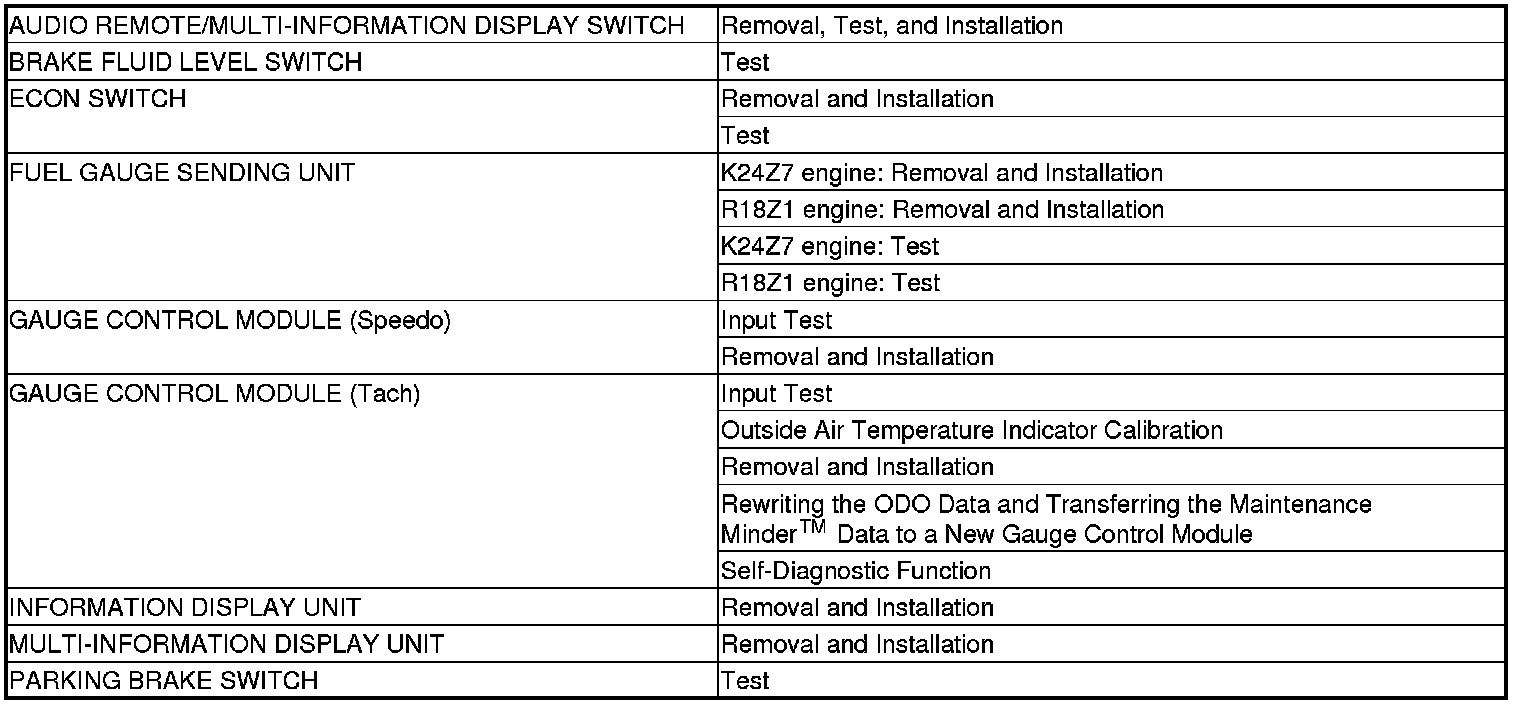

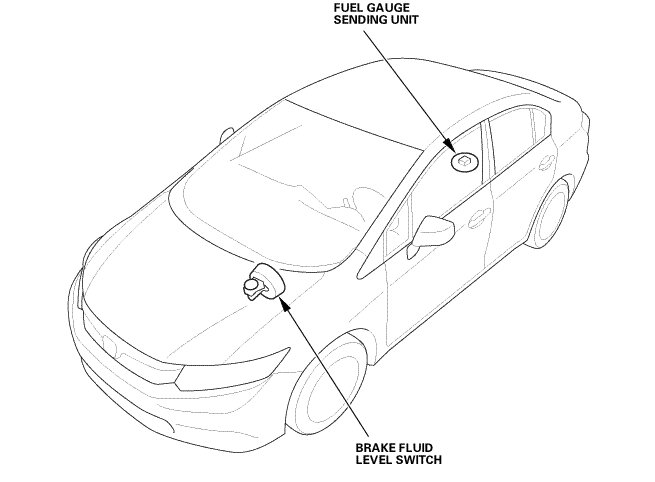

Gauges Component Location Index
Gauges Component Location Index
Gauges Component Location Index

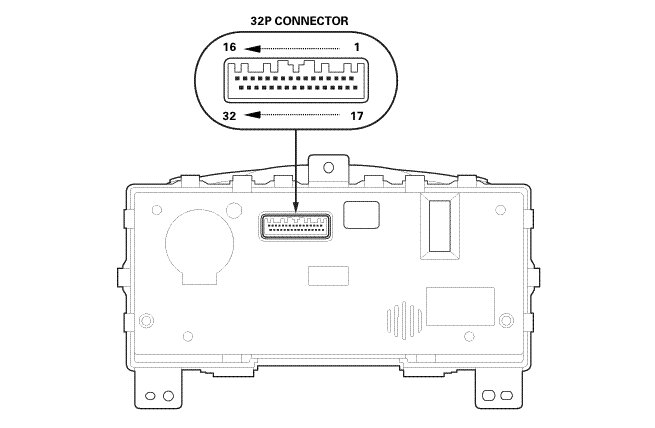

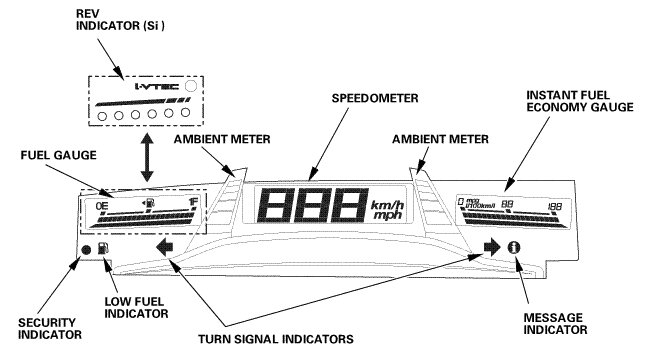

SPEEDOMETER

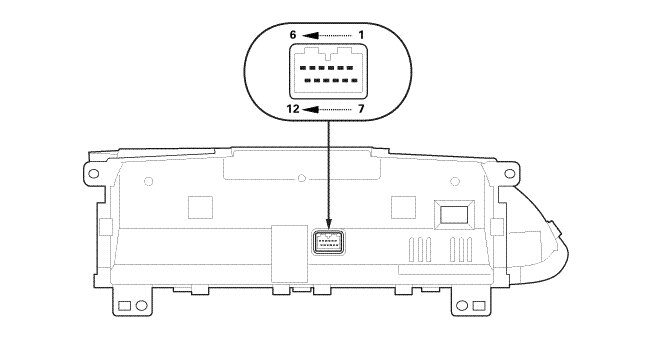

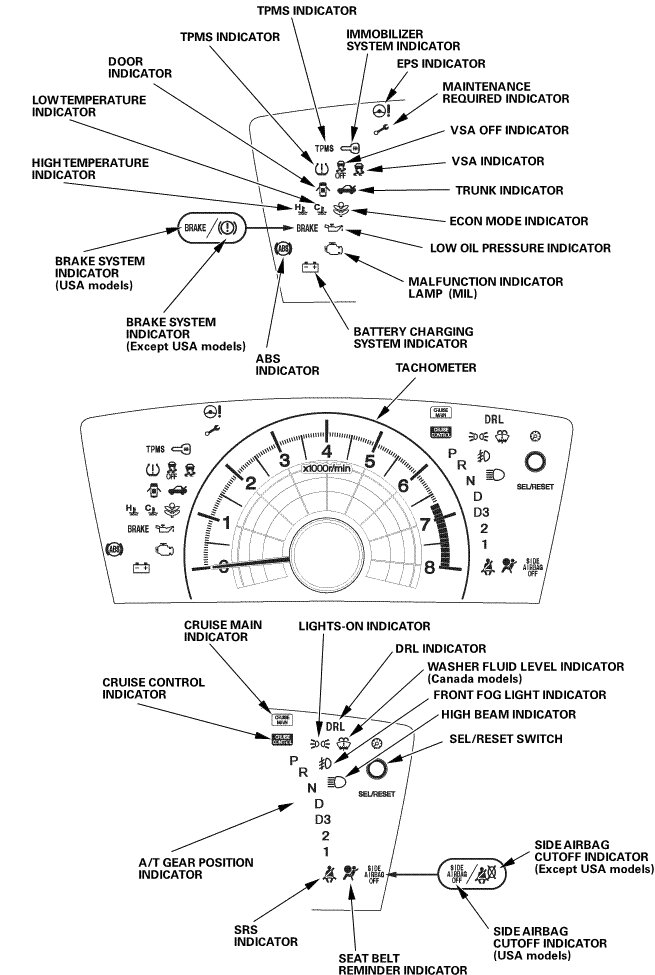

TACHOMETER
