Oil Pressure Sender: Service and Repair

Engine Oil Pressure Switch Removal and Installation

Removal

1. Oil Pressure Switch





1. Remove the oil pressure switch (A).

2. Remove any old liquid gasket from the switch mounting hole.

Installation

1. Oil Pressure Switch





1. Apply liquid gasket (P/N 08718-0004 or 08718-0009) to the oil pressure switch threads. Install the component within 5 minutes of applying the liquid gasket.

NOTE:
* Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the oil pressure switch.
* If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

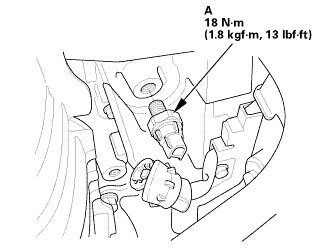

2. Install the oil pressure switch (A).
