Dome Lamp: Service and Repair

Ceiling Light Removal, Installation, and Test

Removal

1. Ceiling Light





1. Turn the ceiling light switch OFF.

2. Carefully pry off the lens (A).

3. Remove the ceiling light (B).

4. Disconnect the connector.

Test

1. Ceiling Light - Test









NOTE: When doing the ceiling light test, make sure to install the bulb correctly.

1. Check for continuity between the terminals in each switch position according to the table.

2. If the continuity is not as specified, replace the bulb or the ceiling light (A).

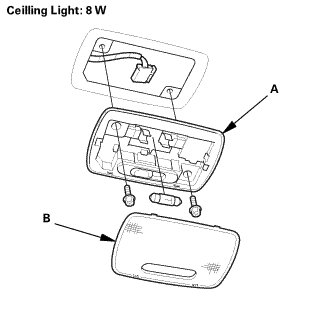

Installation

1. Ceiling Light





1. Connect the connector.

2. Install the ceiling light (A).

3. Carefully install the lens (B).
