Wiper Arm: Service and Repair

Wiper Arm Removal and Installation

Removal

1. Wiper Arm Assembly





NOTE: Set the wiper arms to the auto-stop position before removal.

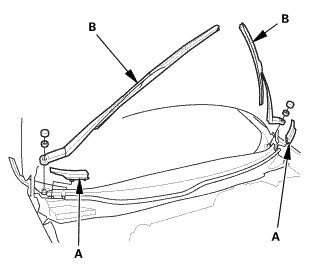

1. Remove the cowl top wiper covers (A).

2. Remove the wiper arms (B).

Installation

1. Wiper Arm Assembly





NOTE: Set the wiper arms to the auto-stop position before installation.

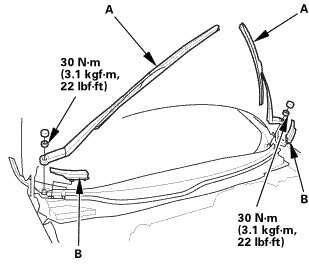

1. Install the wiper arms (A).

2. Install the cowl top wiper covers (B).

2. Wiper Arm/Nozzle - Adjustment

NOTICE:

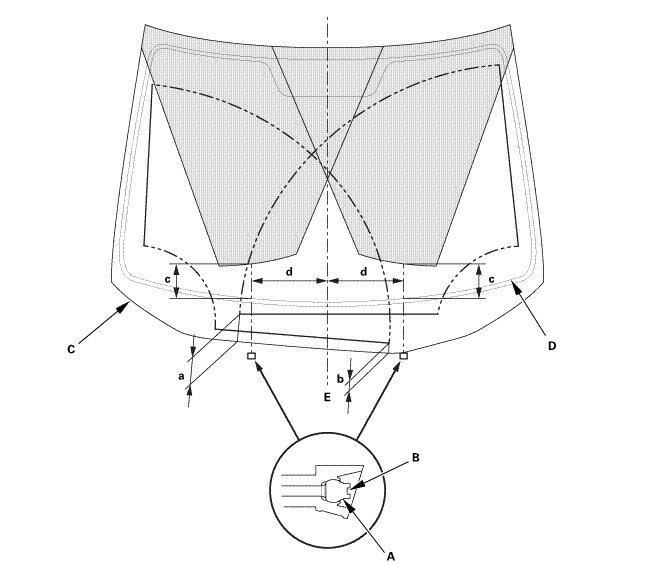

* Adjust the washer nozzles by gently gripping, and then moving, the outside of each nozzle (A).
* Do not insert tools into the nozzle hole (B), as it may cause the washer fluid to spray incorrectly.

1. Turn the ignition switch to ON (II), then turn the wiper switch ON, and then back OFF.






2. When the wiper arms stop at the auto-stop position, make sure that they are at the correct position:

* Position (a) from the top of the cowl cover (C):

- 2-Door: 63.5 mm (2.500 in)
- 4-Door: 72.4 mm (2.850 in)

* Position (b) from the top of the cowl cover:

- 2-Door: 24.5 mm (0.965 in)
- 4-Door: 25.6 mm (1.008 in)

3. When you turn on the washer(s), make sure 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzle(s):

* Position (c) from the top of the black ceramic area (D) at the lower windshield:

- 2-Door: 155.1 mm (6.106 in)
- 4-Door: 133 mm (5.24 in)

* Position (b) from the windshield center line (E):

- 2-Door: 250 mm (9.84 in)
- 4-Door: 250 mm (9.84 in)
