XM Receiver Removal And Installation

Service Information

XM Receiver Removal and Installation

Removal

1. Trunk Floor

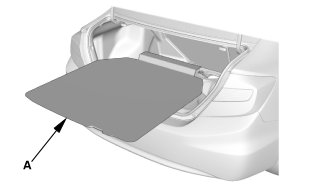

1. Remove the trunk floor (A).

2. Trunk Rear Trim Panel

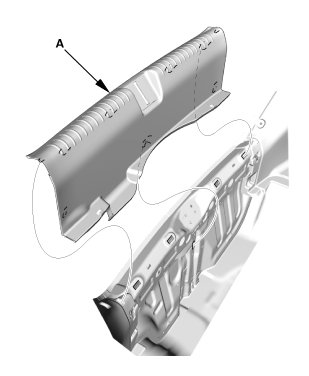

1. Remove the trunk rear trim panel (A).

3. Trunk Lid Weatherstrip As Needed

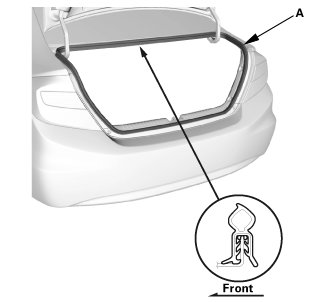

1. Remove the trunk lid weatherstrip (A) as needed.

4. Right Trunk Side Trim Panel as Needed

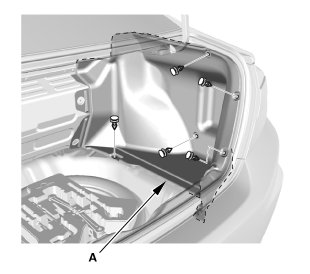

1. Remove the trunk side trim panel (A) as needed.

5. XM Receiver





1. Disconnect the connectors.

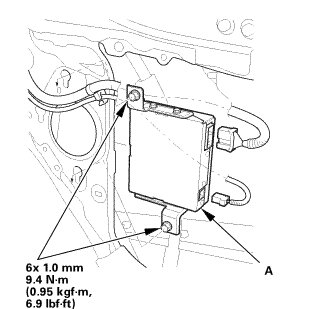

2. Remove the XM receiver (A).

Installation

1. XM Receiver





1. Install the XM receiver (A).

2. Connect the connectors.

2. Right Trunk Side Trim Panel as Needed





1. Install the trunk side trim panel (A).

3. Trunk Lid Weatherstrip





1. Install the trunk lid weatherstrip (A).

4. Trunk Rear Trim Panel





1. Install the trunk rear trim panel (A).

5. Trunk Floor





1. Install the trunk floor (A).
