Glove Compartment: Service and Repair

Service Information

Glove Box Removal and Installation

Removal

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

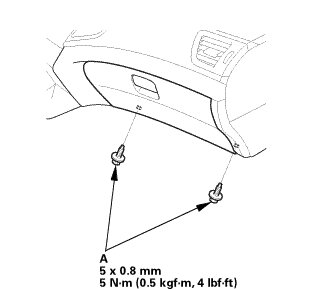

1. Glove Box





1. Remove the bolts (A).





2. Remove the glove box (A).

Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

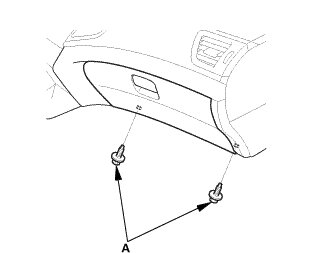

1. Glove Box





1. Install the glove box (A).





2. Install the bolts (A).
