Driver's Kick Panel Removal And Installation

Service Information

Driver's Kick Panel Removal and Installation

Removal

1. Front Door Sill Trim

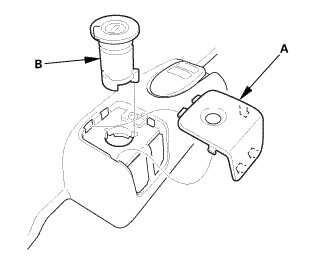

1. Remove the cap (A).

2. Remove the opener lock cylinder (B).

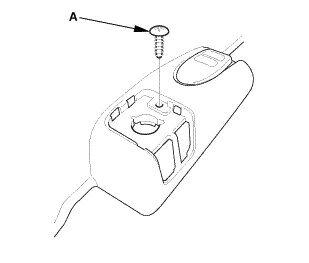

3. Remove the screw (A).





4. Remove the front door sill trim (A).

2. Kick Panel

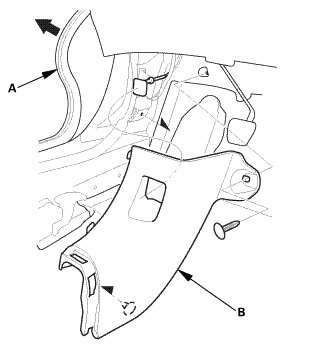

1. Pull out the front door opening seal (A) as needed.

2. Remove the kick panel (B).

Installation

1. Kick Panel





1. Install the kick panel (A).

2. Install the front door opening seal (B).

2. Front Door Sill Trim





1. Install the front door sill trim (A).





2. Install the screw (A).





3. Install the opener lock cylinder (A).

4. Install the cap (B).
