Mirror Holder Removal And Installation

Service Information

Mirror Holder Removal and Installation

Removal

1. Door Mirror Holder

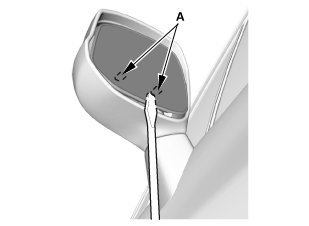

1. Release the hooks (A).

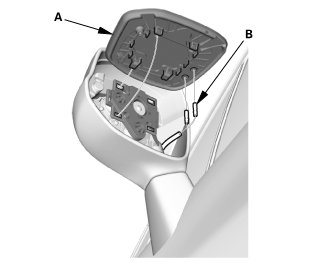

2. Remove the mirror holder (A).

3. For some models: Disconnect the connectors (B).

Installation

1. Door Mirror Holder

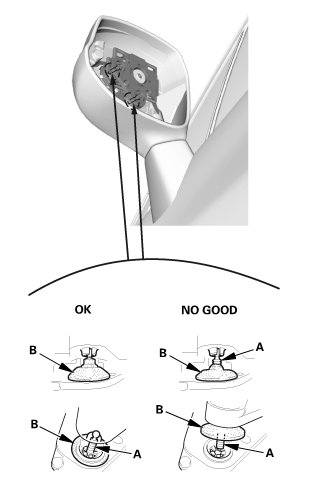

1. Check the actuator rods (A) and the actuator boots (B).





2. For some models: Connect the connectors (A).

3. Install the mirror holder (B).
