Mirror Housing Cover Removal And Installation

Service Information

Mirror Housing Cover Removal and Installation

Removal

1. Door Mirror Holder

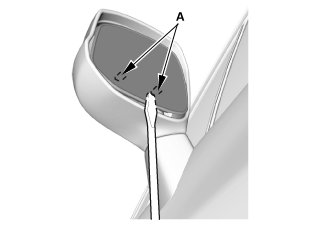

1. Release the hooks (A).





2. Remove the mirror holder (A).

3. For some models: Disconnect the connectors (B).

2. Door Mirror Housing Cover





1. Remove the screws (A).

NOTE: Turn the mirror housing (B), then remove the lower screw (C).

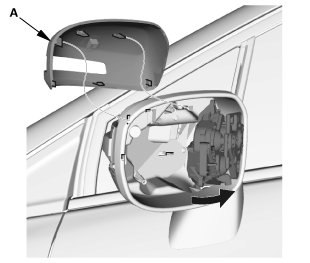

2. Remove the mirror housing cover (A).

Installation

1. Door Mirror Housing Cover





1. Install the mirror housing cover (A).





2. Install the screws (A).

2. Door Mirror Holder

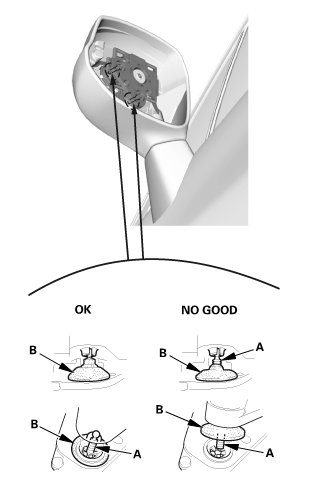

1. Check the actuator rods (A) and the actuator boots (B).





2. For some models: Connect the connectors (A).

3. Install the mirror holder (B).
