Removal and Replacement




Service Information

Brake Pedal Removal and Installation

Removal

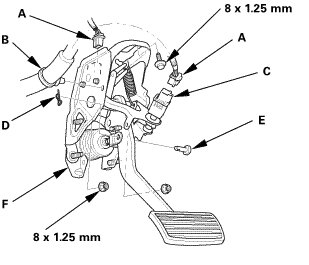

1. Brake Pedal Assembly





1. Disconnect the connectors (A).

2. Remove the harness clip (B).

3. Remove the brake pedal position switch (C).

4. Remove the lock pin (D) and the clevis pin (E).

5. Remove the brake pedal with bracket (F).

Installation

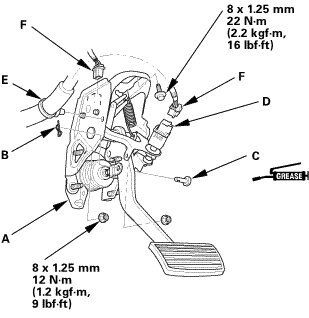

1. Brake Pedal Assembly





1. Install the brake pedal with bracket (A).

2. Install the lock pin (B) and the clevis pin (C).

3. Install the brake pedal position switch (D).

4. Install the harness clip (E).

5. Connect the connectors (F).

2. Brake Pedal Height - Inspection

1. Inspect the brake pedal height. Adjustments

3. Advanced Hydraulic Booster Memorizing 0 (Zero) Position

1. Clear the DTC(s) by following the screen prompts on the HDS.

2. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.

3. Check for DTCs and make sure no DTC is indicated.

4. Memorize the 0 (zero) position of the brake pedal stroke sensor and the servo unit by following the screen prompts on the HDS.

NOTE:
* See the HDS Help menu for specific instructions.
* If the memorization process does not work, replace the servo unit.

5. Turn the ignition switch to LOCK (0).
