Civic Hybrid L4-1.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
KX Mexico Models
KX Mexico Models

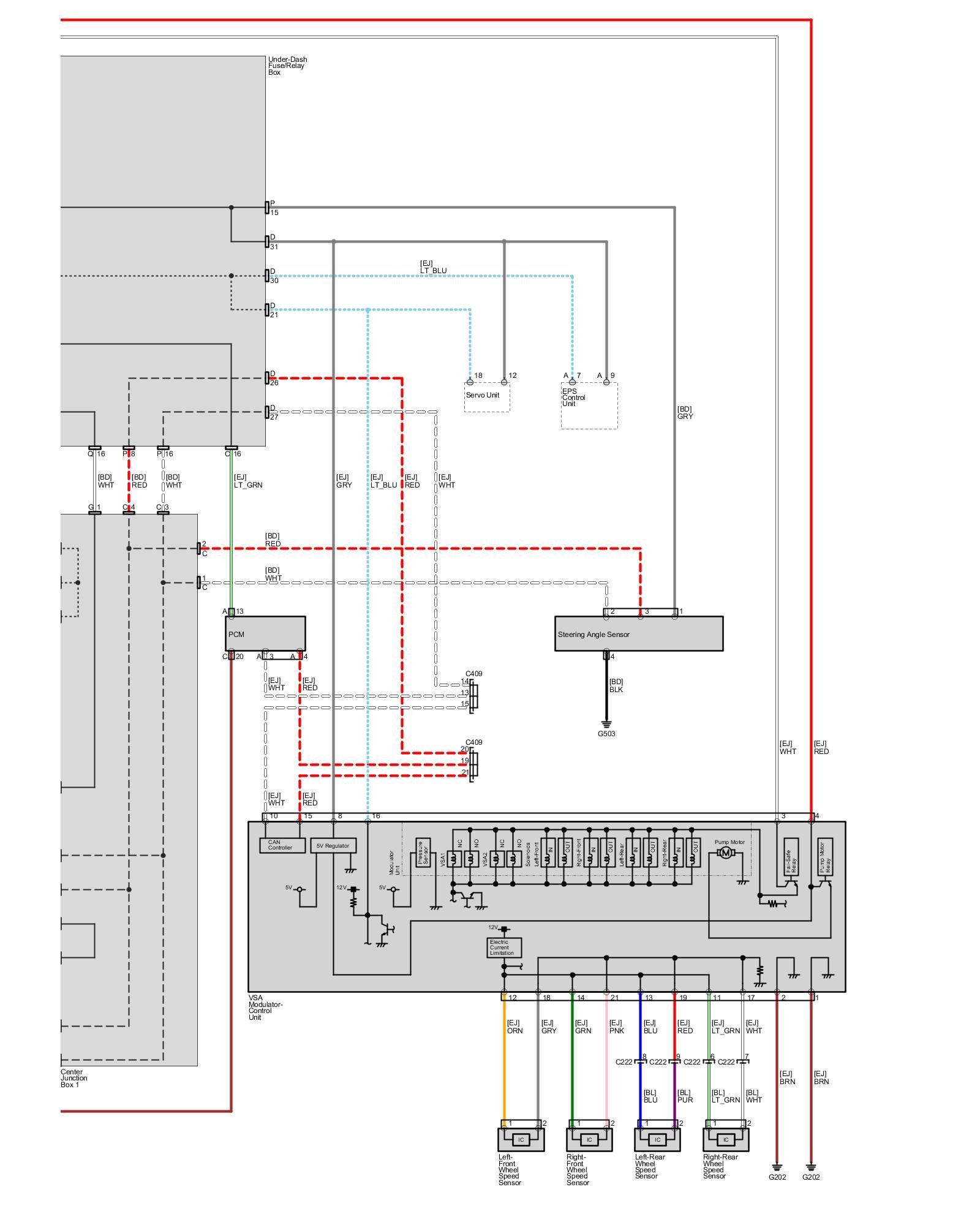

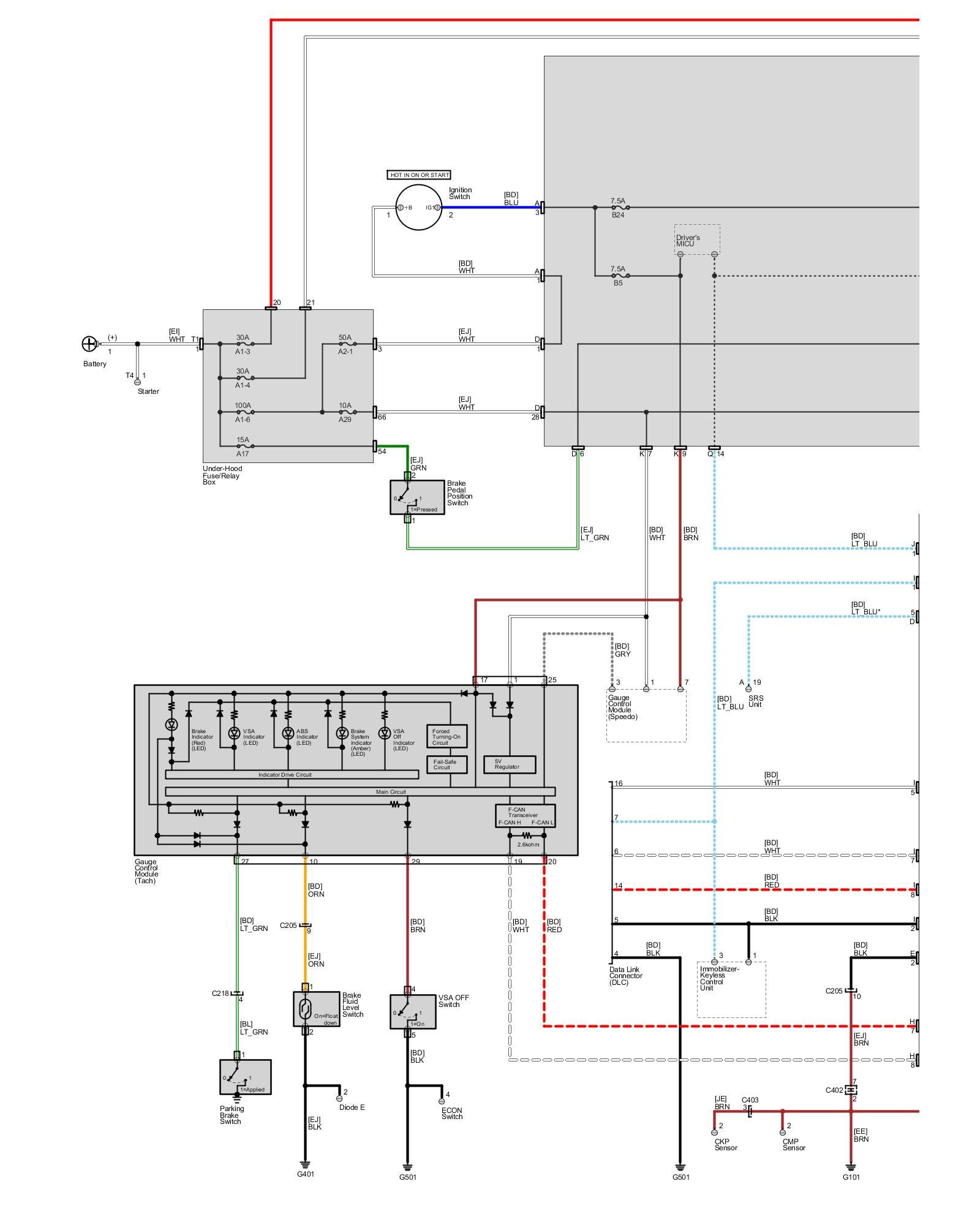

Brakes - VSA
KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
