Home >> Honda >> 2012 >> Civic Hybrid L4-1.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Lamp >> KX Mexico Models

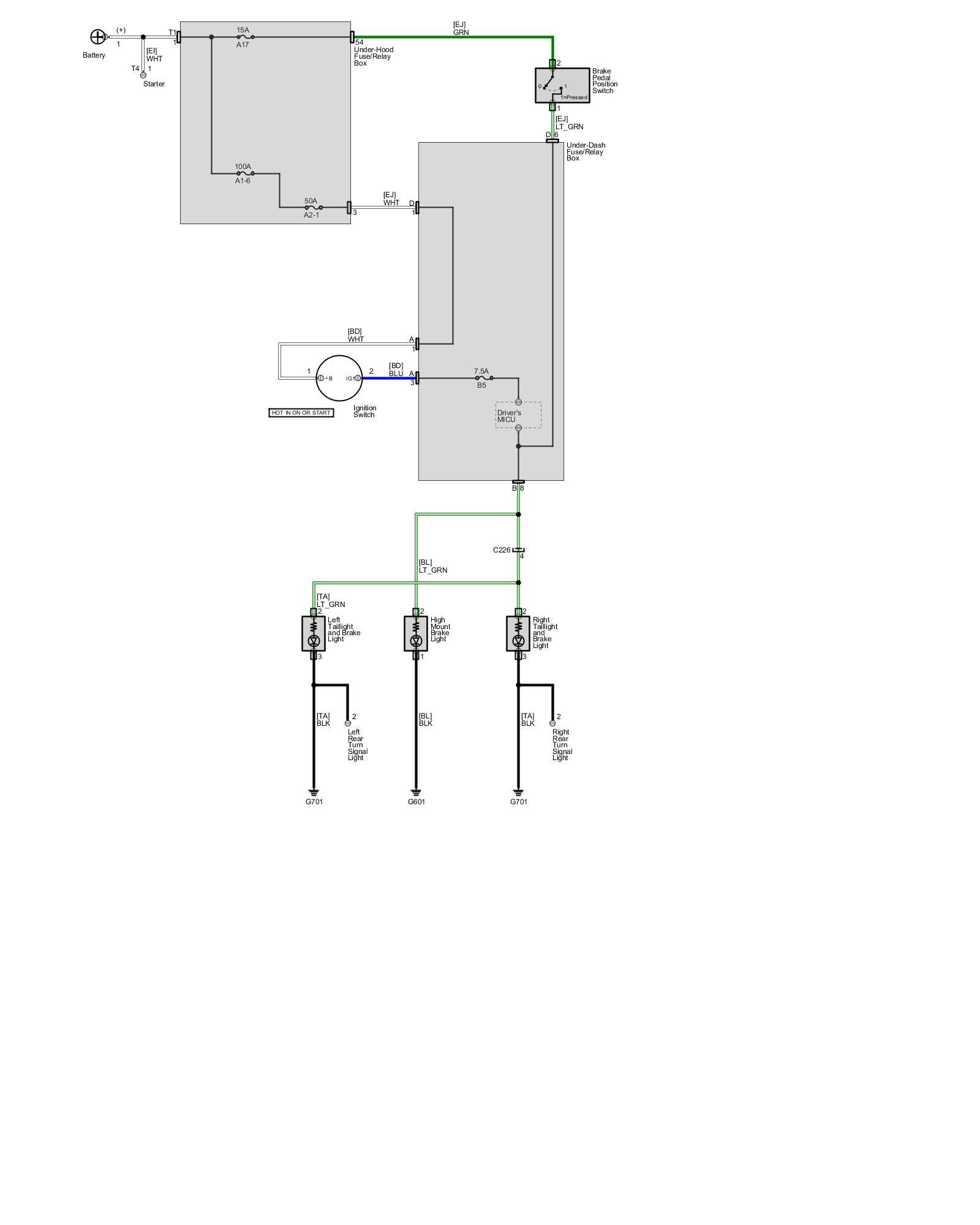

KX Mexico Models



Body - Exterior Lights - Brake Lights

KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
