Cooling System
>>
KX Mexico Models
KX Mexico Models

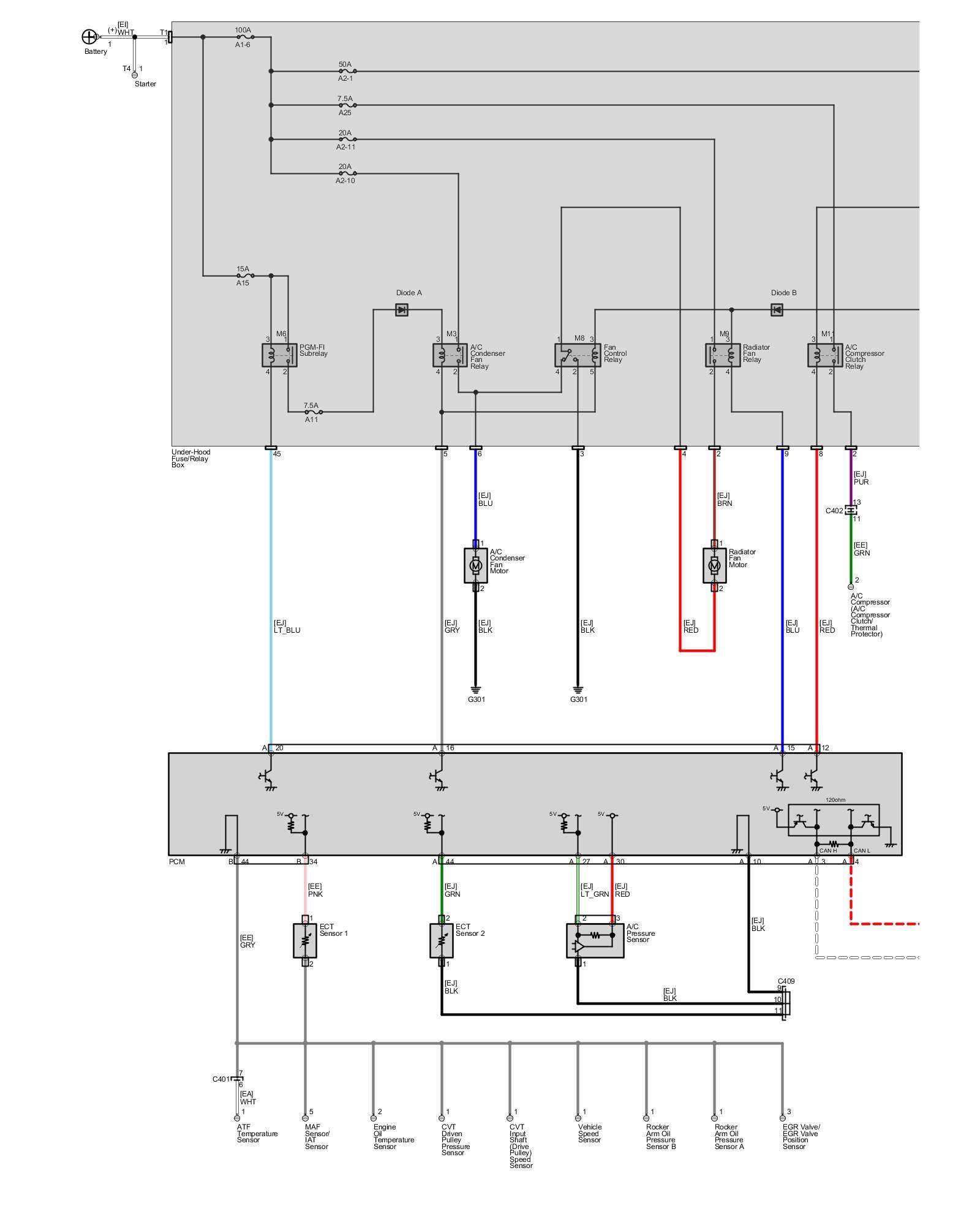

Engine - Fans
KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
