Hydraulic Brake Booster
>>
KX Mexico Models
KX Mexico Models

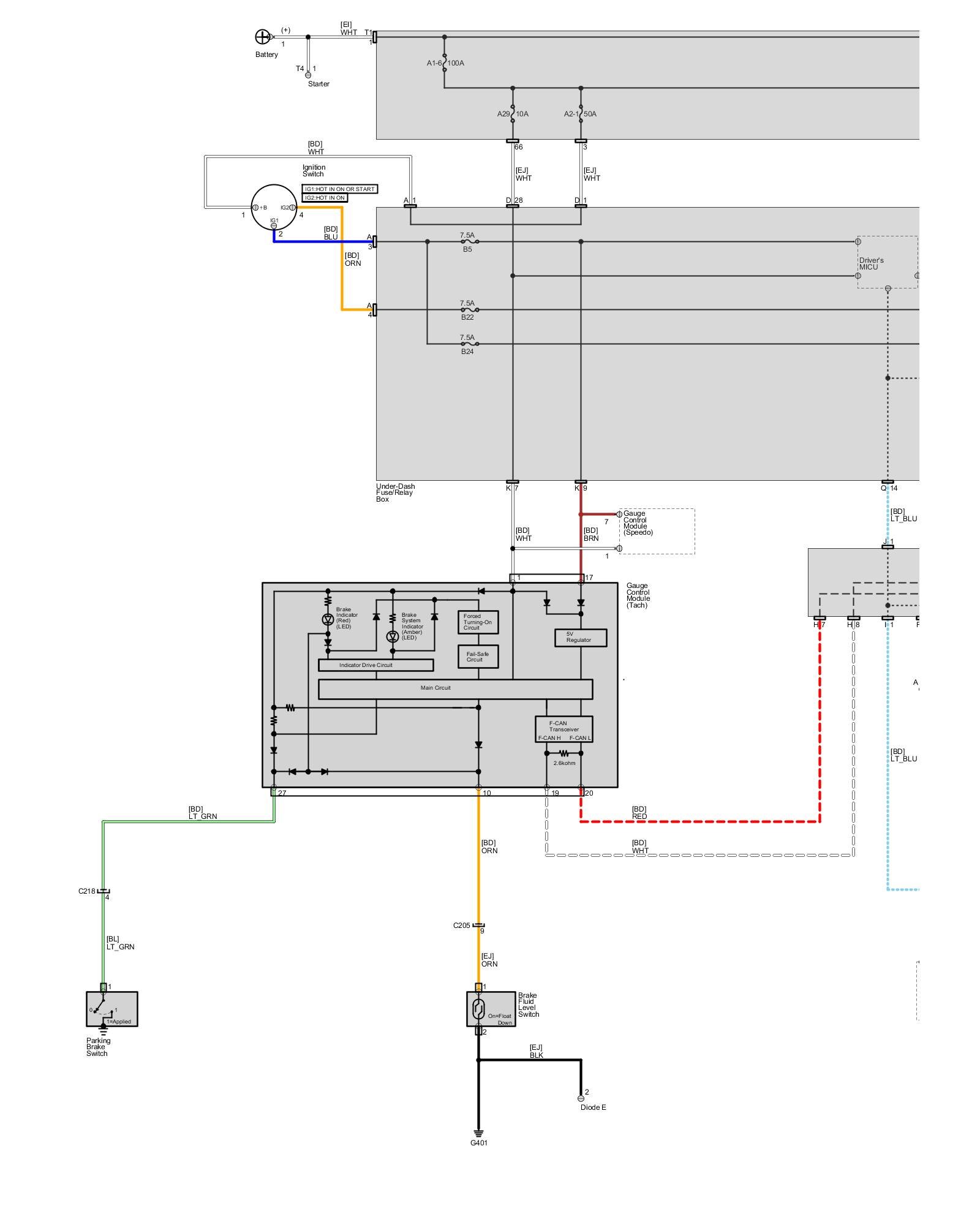

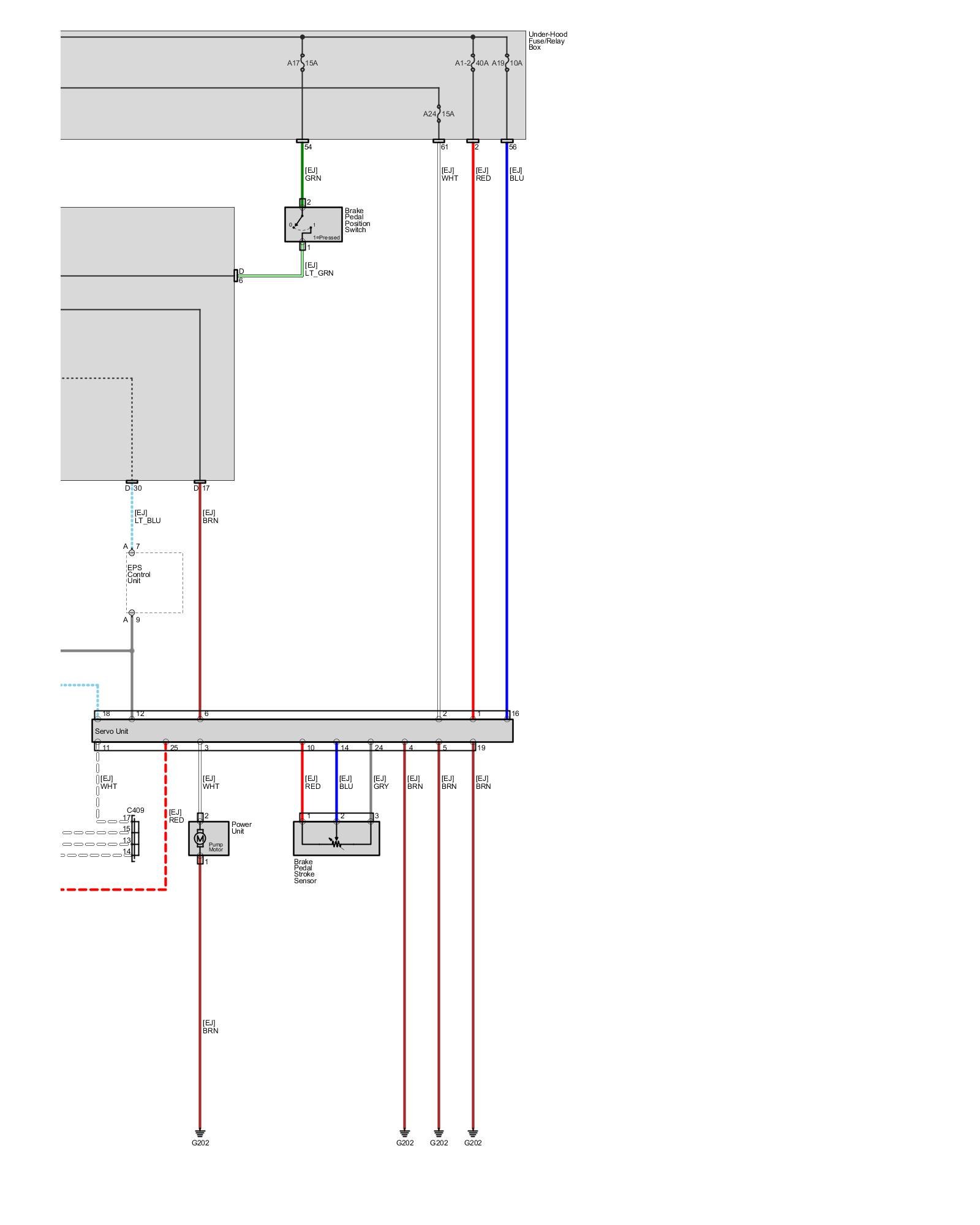

Brakes - AHB (Advanced Hydraulic Booster)
KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
