Home >> Honda >> 2012 >> Civic Hybrid L4-1.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> KC Canada Models

KC Canada Models

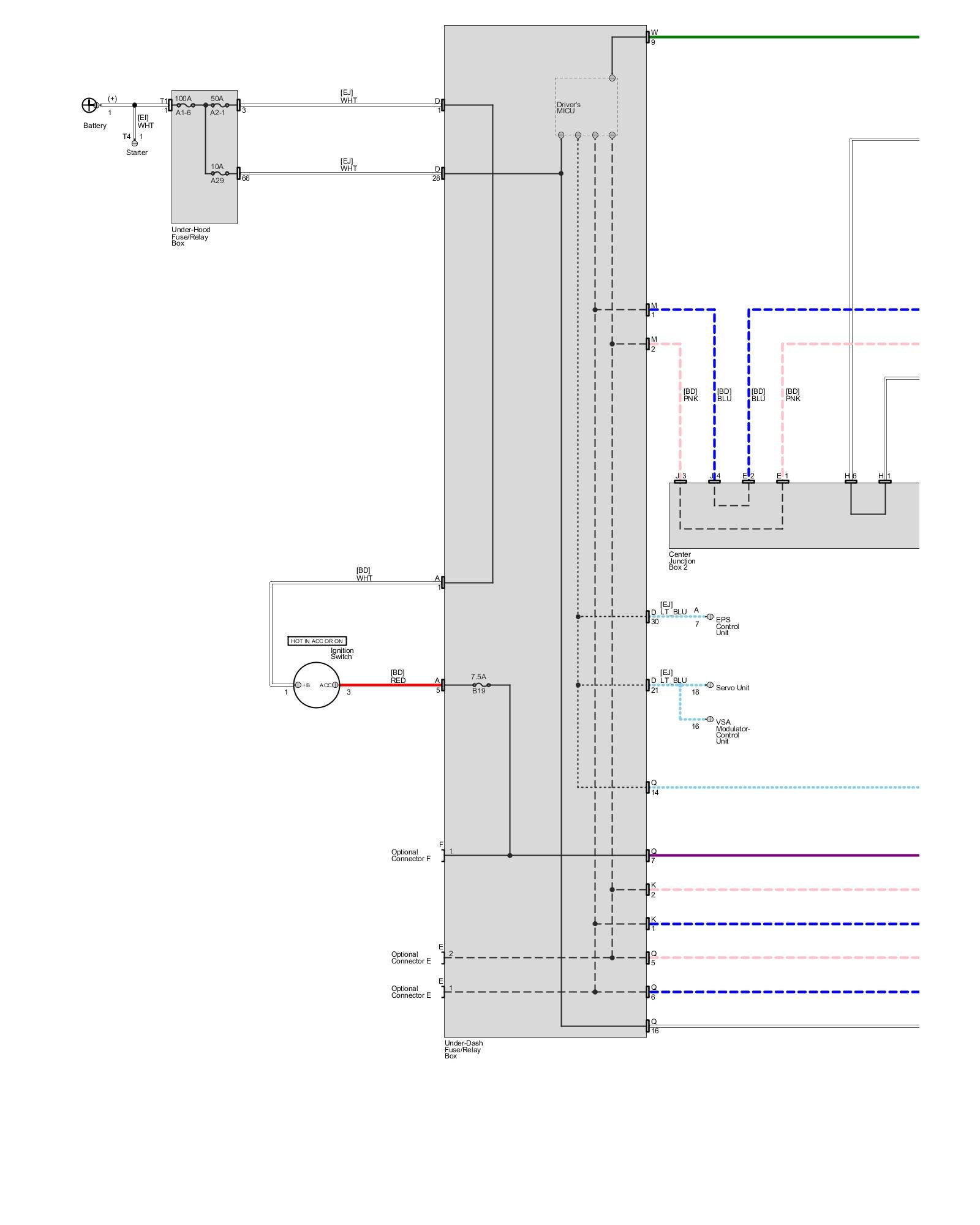

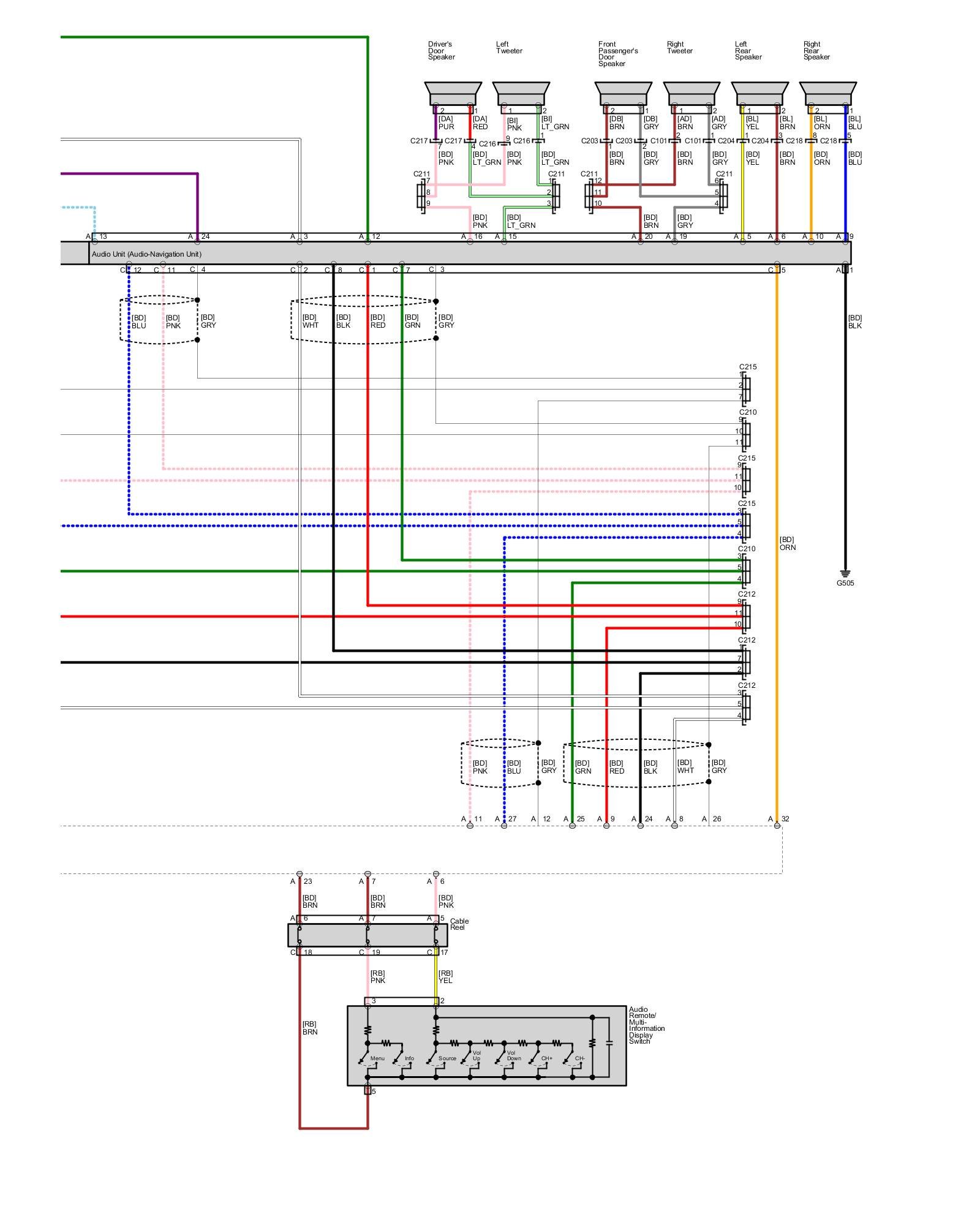

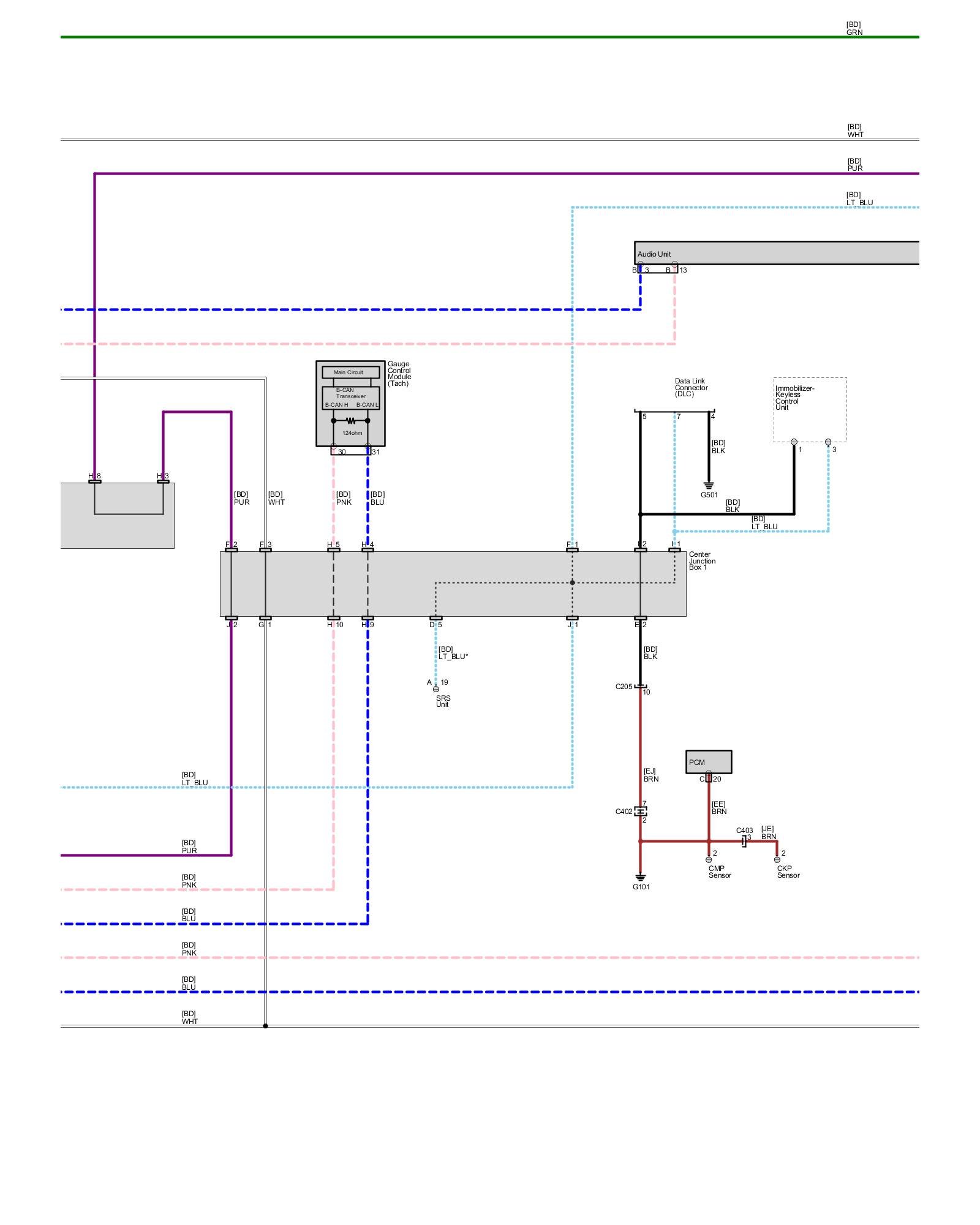

Audio and Visual System - Audio System

KC Canada Emissions, 4-door MX, FB4, CVT Transmission with these options (Power Mirror Defoggers, Seat Heater)
