Home >> Honda >> 2012 >> Civic Hybrid L4-1.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> KX Mexico Models

KX Mexico Models

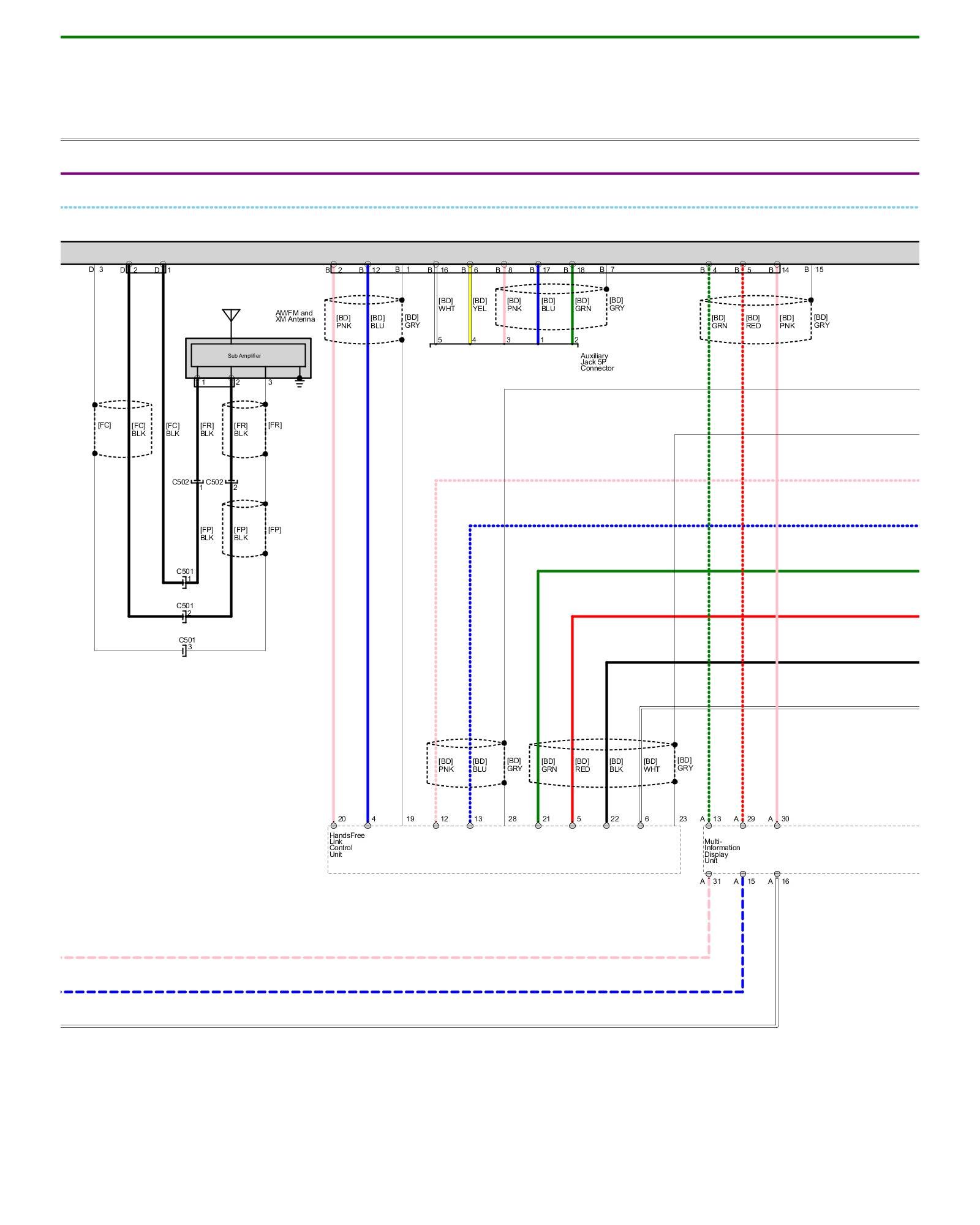

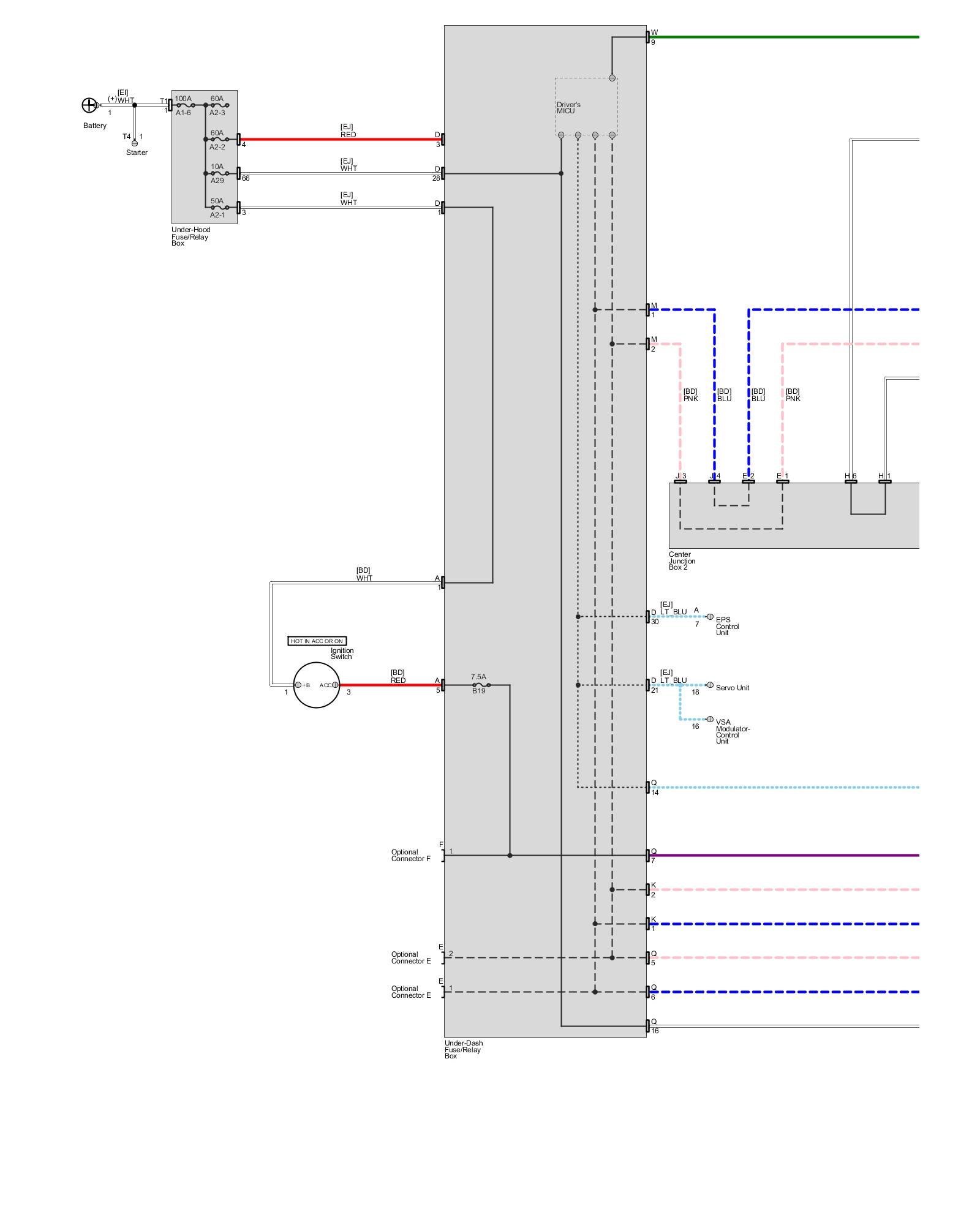

Audio and Visual System - Audio System

KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
