Home >> Honda >> 2012 >> Civic Hybrid L4-1.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T >> KX Mexico Models

KX Mexico Models

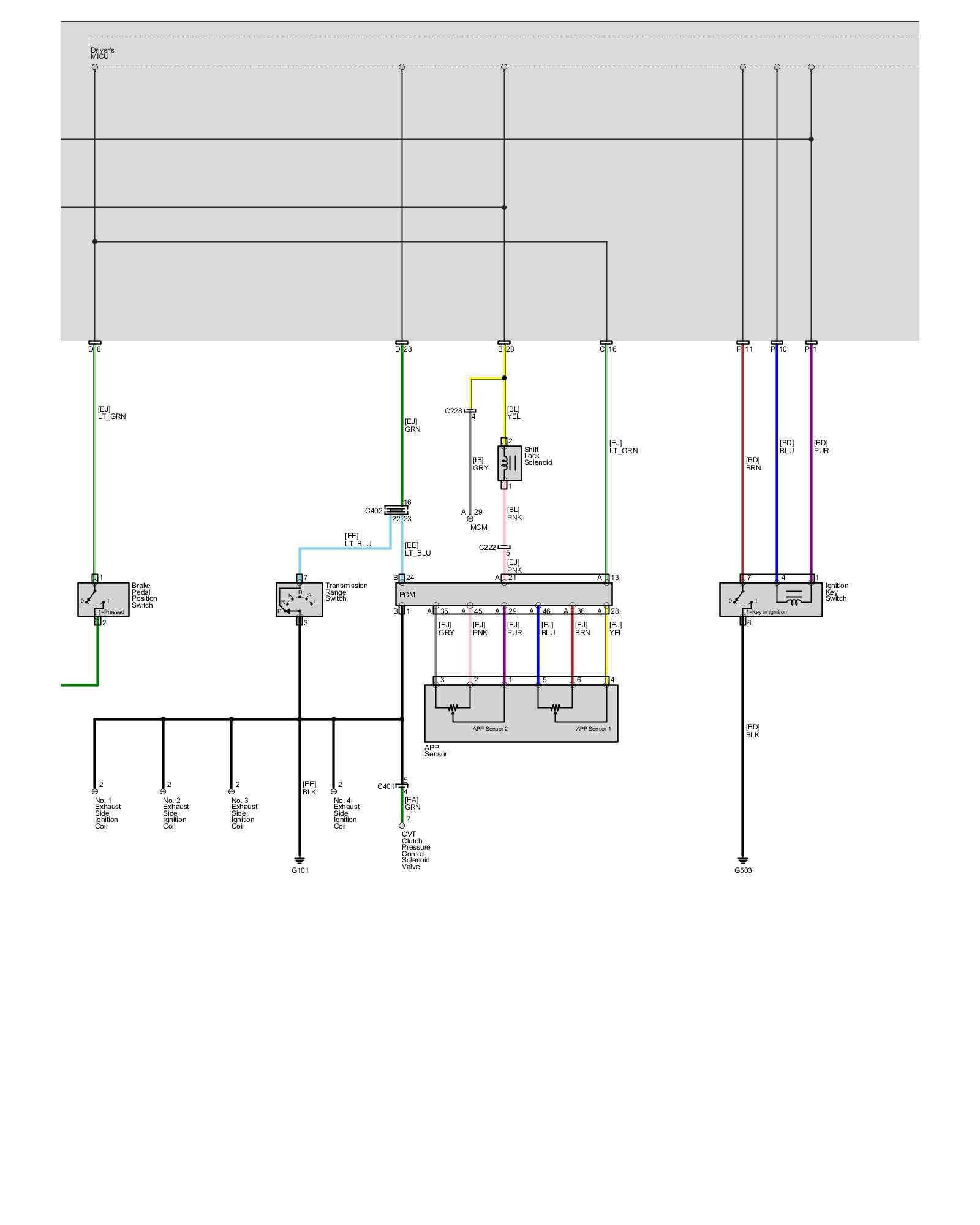

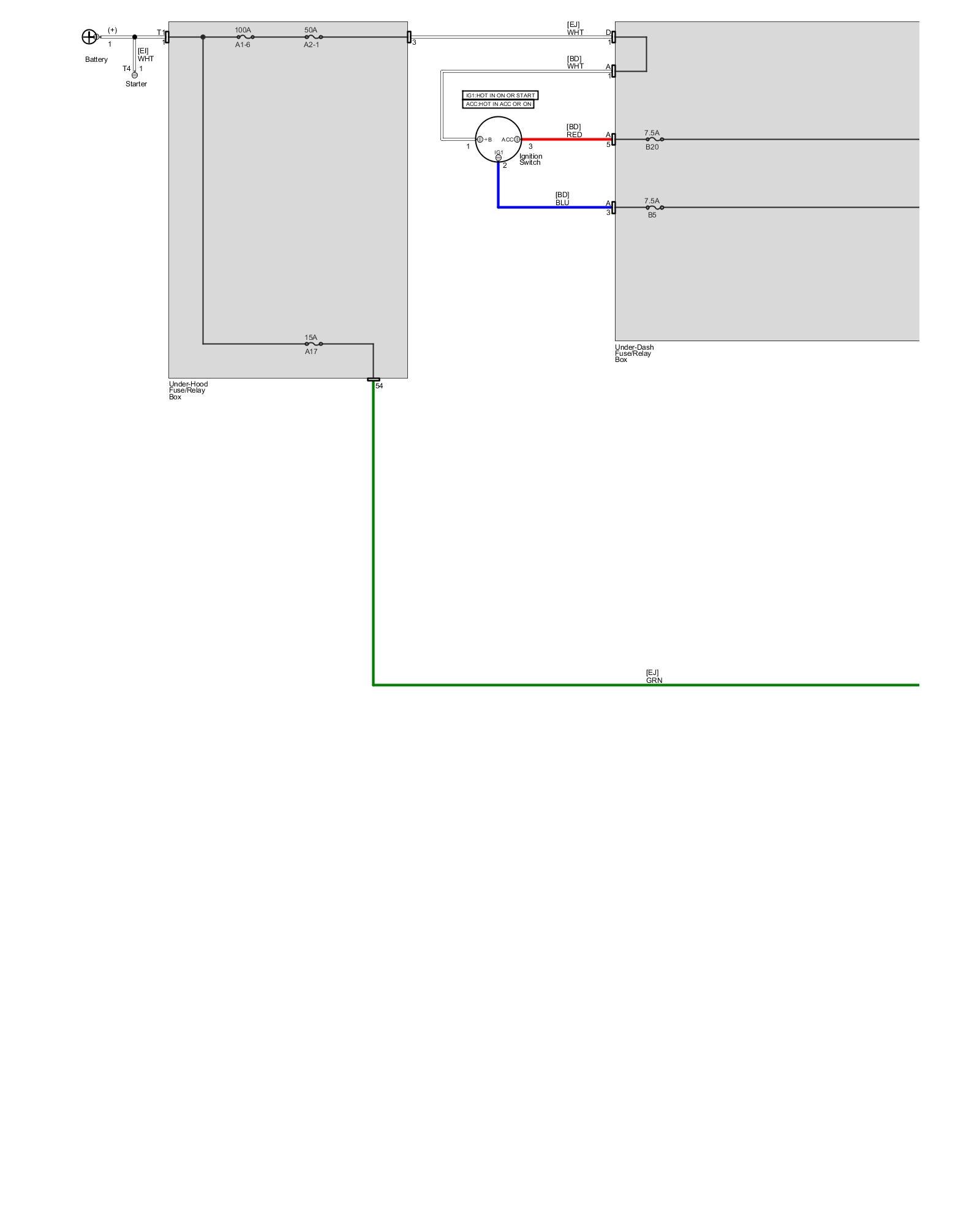

Body - Interlock System

KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
