KA USA Models

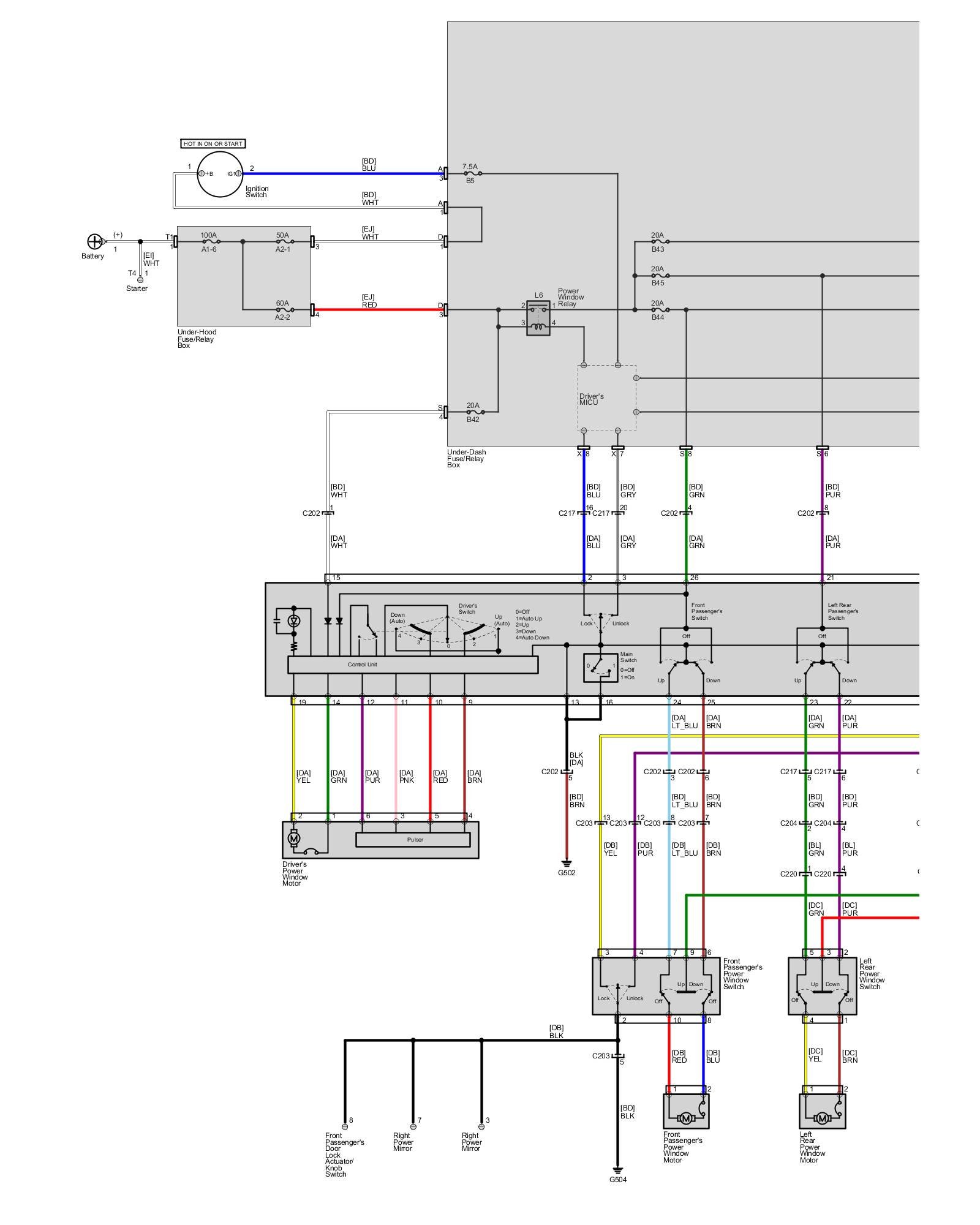

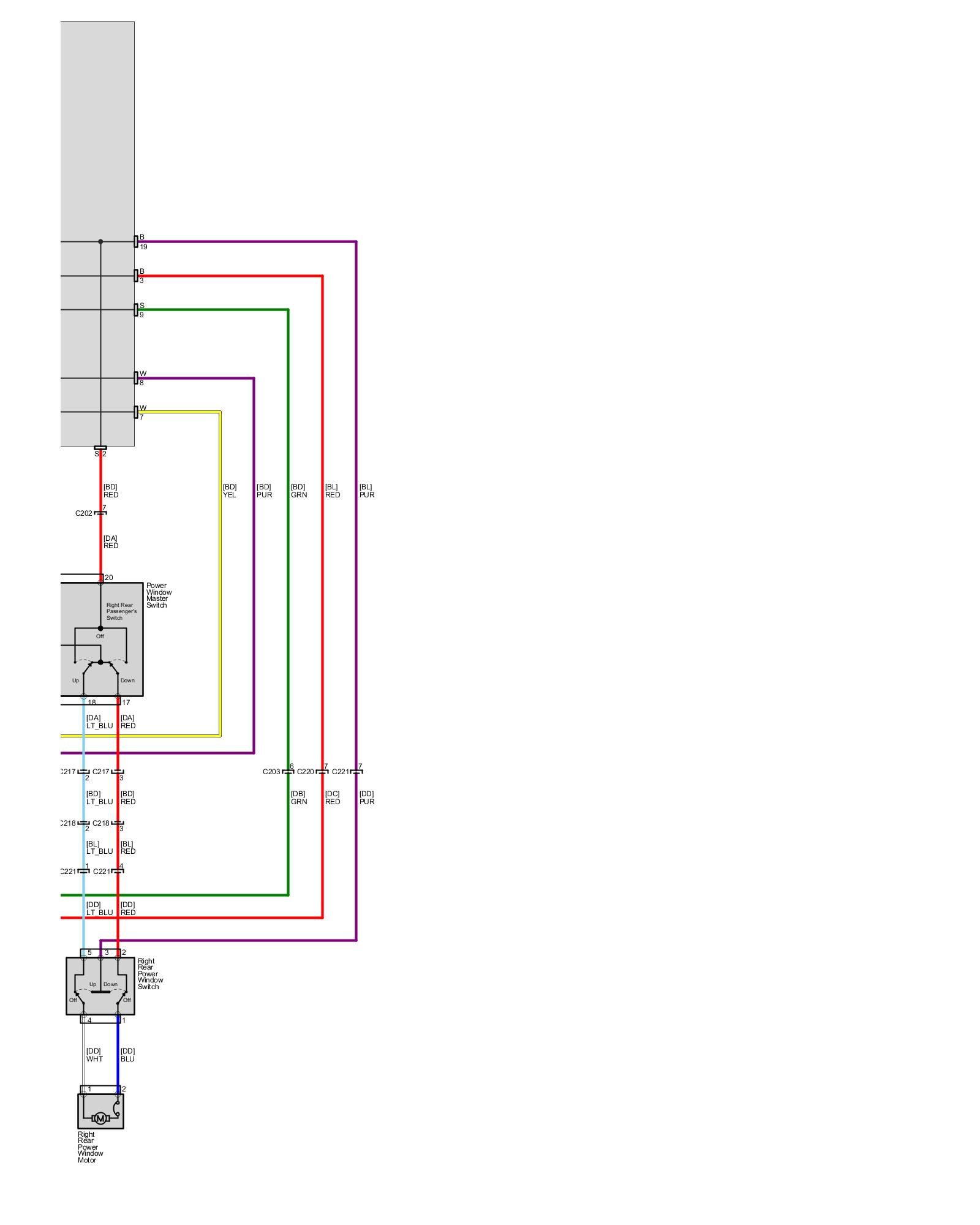

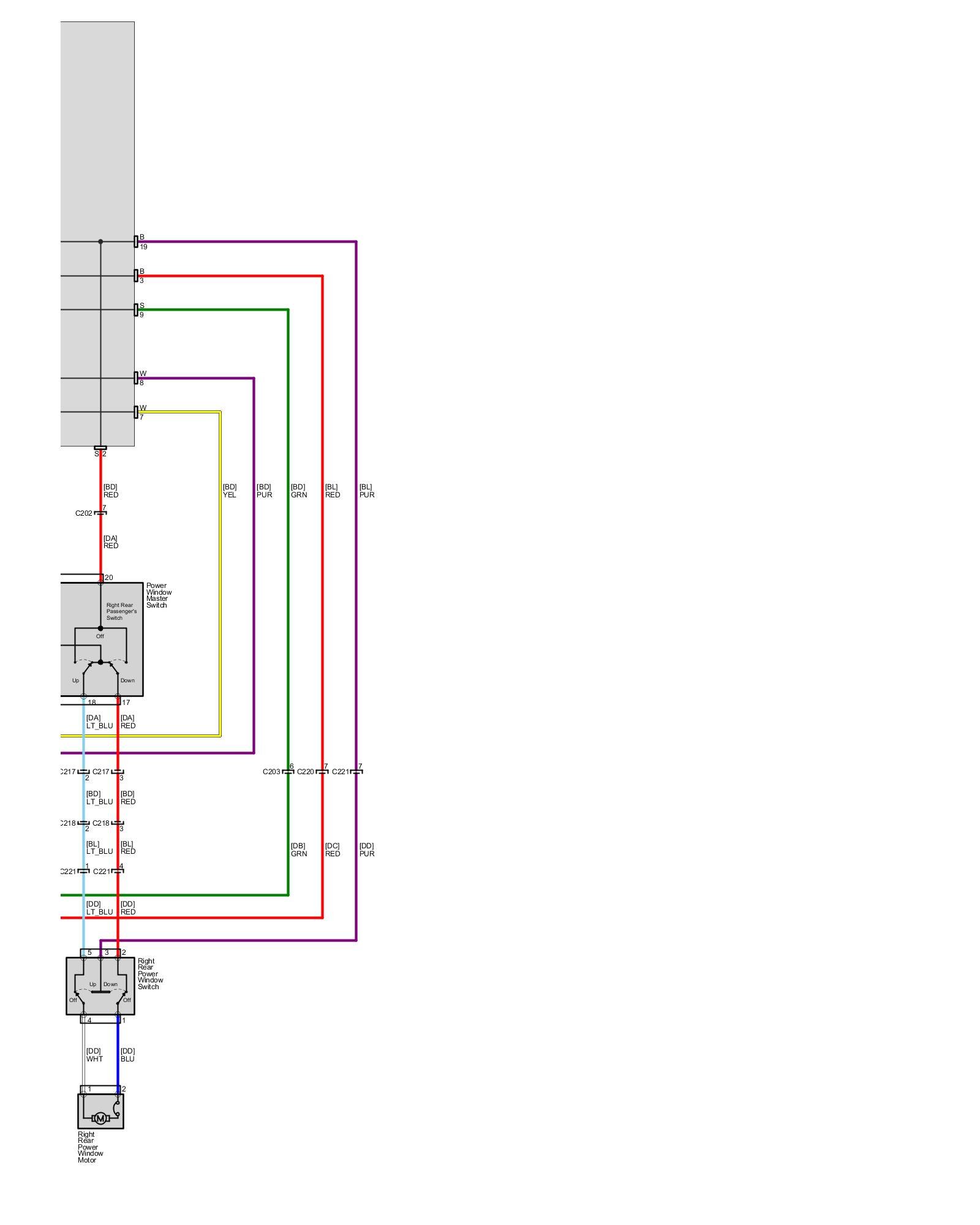

Body - Power Windows

KA USA Emissions, 4-door MX, FB4, CVT Transmission
KA USA Emissions, 4-door MX, FB4, CVT Transmission with these options (Navigation)









KA USA Emissions, 4-door MX, FB4, CVT Transmission with these options (Power Mirror Defoggers, Seat Heater)
KA USA Emissions, 4-door MX, FB4, CVT Transmission with these options (Navigation, Power Mirror Defoggers, Seat Heater)
