Civic Hybrid L4-1.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
KX Mexico Models
KX Mexico Models

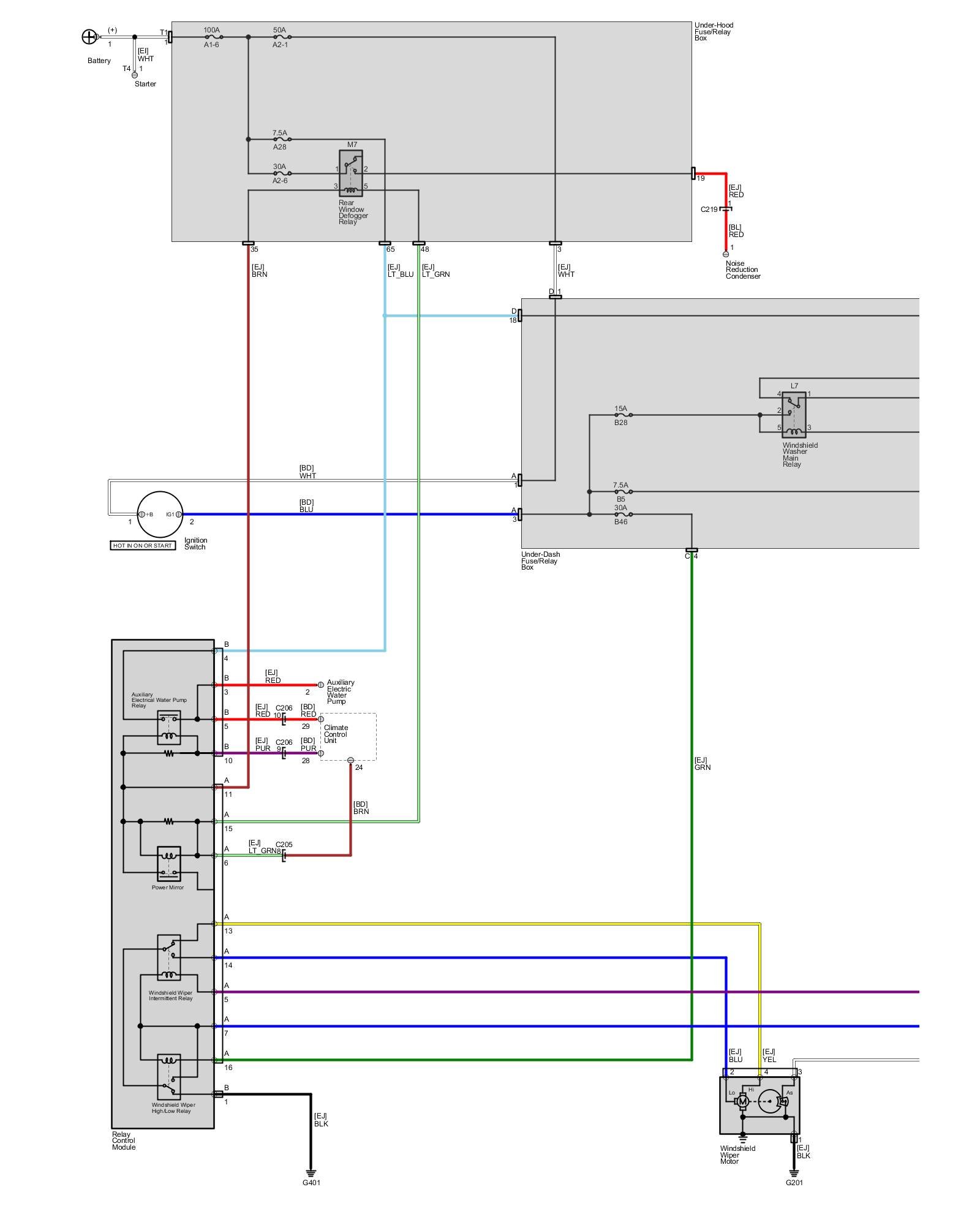

Body - Wiper/Washer - Wiper/Washer (Windshield)
KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
