IPU Module Fan Outlet Duct Removal And Installation

Service Information

IPU Module Fan Outlet Duct Removal and Installation

Removal

1. Trunk Floor





1. Remove the trunk floor (A).

2. Trunk Rear Trim Panel





1. Remove the trunk rear trim panel (A).

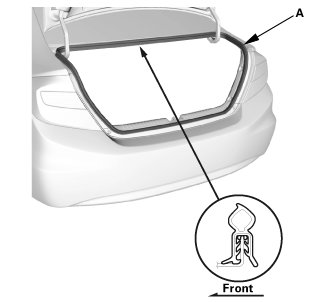

3. Trunk Lid Weatherstrip As Needed





1. Remove the trunk lid weatherstrip (A) as needed.

4. Trunk Front Trim Panel





1. Remove the trunk front trim panel (A).

5. Right Trunk Side Trim as Needed





1. Remove the trunk side trim (A) as needed.

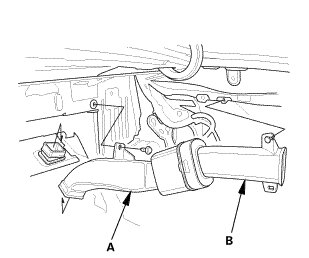

6. IPU Module Fan Outlet Duct





1. Remove the IPU module fan outlet ducts (A and B).

Installation

1. IPU Module Fan Outlet Duct





1. Install the IPU module fan outlet ducts (A and B).

2. Right Trunk Side Trim as Needed





1. Install the trunk side trim (A) as needed.

3. Trunk Front Trim Panel





1. Install the trunk front trim panel (A).

4. Trunk Lid Weatherstrip





1. Install the trunk lid weatherstrip (A).

5. Trunk Rear Trim Panel





1. Install the trunk rear trim panel (A).

6. Trunk Floor





1. Install the trunk floor (A).
