Horn: Service and Repair

Service Information

Horn Removal and Installation - Single Horn

Removal

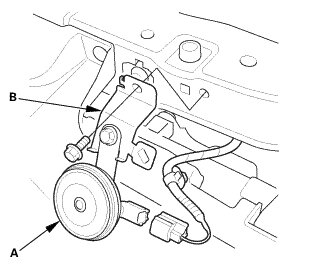

1. Horn and Bracket Assembly





1. Remove the horn (A) and the bracket (B) as an assembly.

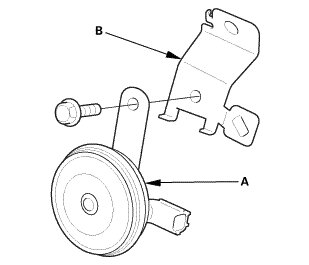

2. Horn





1. Remove the horn (A) from the bracket (B).

Installation

1. Horn





1. Install the horn (A) to the bracket (B).

2. Horn and Bracket Assembly





1. Install the horn (A) and the bracket (B) as an assembly.
