Horn: Testing and Inspection

Service Information

Horn Test - Single Horn

Removal

1. Horn and Bracket Assembly

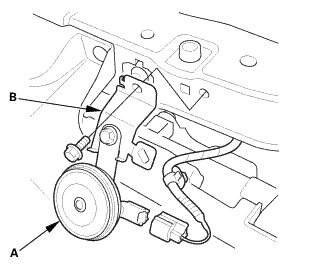

1. Remove the horn (A) and the bracket (B) as an assembly.

Test

1. Horn - Test

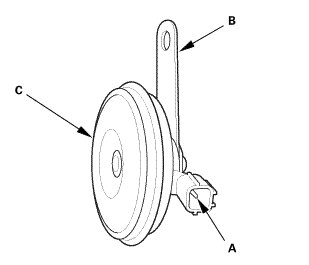

1. Test the horn by momentarily connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.

2. If it fails to sound, replace the horn (C).

Installation

1. Horn and Bracket Assembly





1. Install the horn (A) and the bracket (B) as an assembly.
