Map Light: Service and Repair

Service Information

Front Individual Map Light Removal, Installation, and Test

Removal

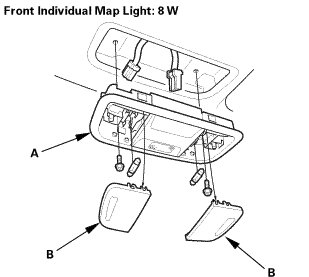

1. Front Individual Map Light





1. Turn the front individual map light switch OFF.

2. Carefully pry off the lenses (A) with a flat-tip screwdriver.

3. Disconnect the connectors.

4. Remove the front individual map light (B).

Test

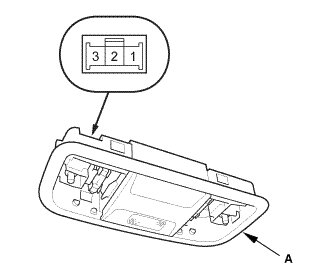

1. Front Individual Map Light - Test









NOTE: When doing the front individual map light test, make sure to install the bulbs correctly.

1. Check for continuity between the terminals in each switch position according to the table.

2. If the continuity is not as specified, replace the bulb(s) or the front individual map light (A).

Installation

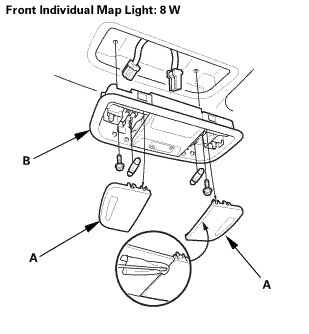

1. Front Individual Map Light





1. Connect the connectors.

2. Install the front individual map light (A).

3. Carefully install the lenses (B).
