Trunk Lid Latch Switch Test

Service Information

Trunk Lid Latch Switch Test

Removal

1. Trunk Lid Trim Panel

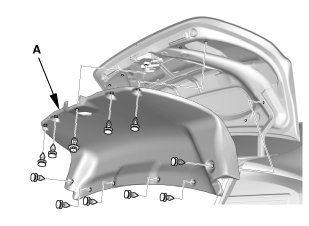

1. Remove the trunk lid trim panel (A).

Test

1. Trunk Lid Latch Switch - Test









1. Disconnect the connector.

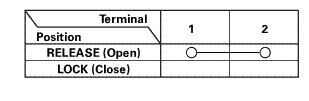

2. If the continuity is not as specified, the trunk lid latch switch is faulty; replace the trunk lid latch (A).

3. Connect the connector.

Installation

1. Trunk Lid Trim Panel





1. Install the trunk lid trim panel (A).
