Symptom Related Diagnostic Procedures

Trans/ Driveline

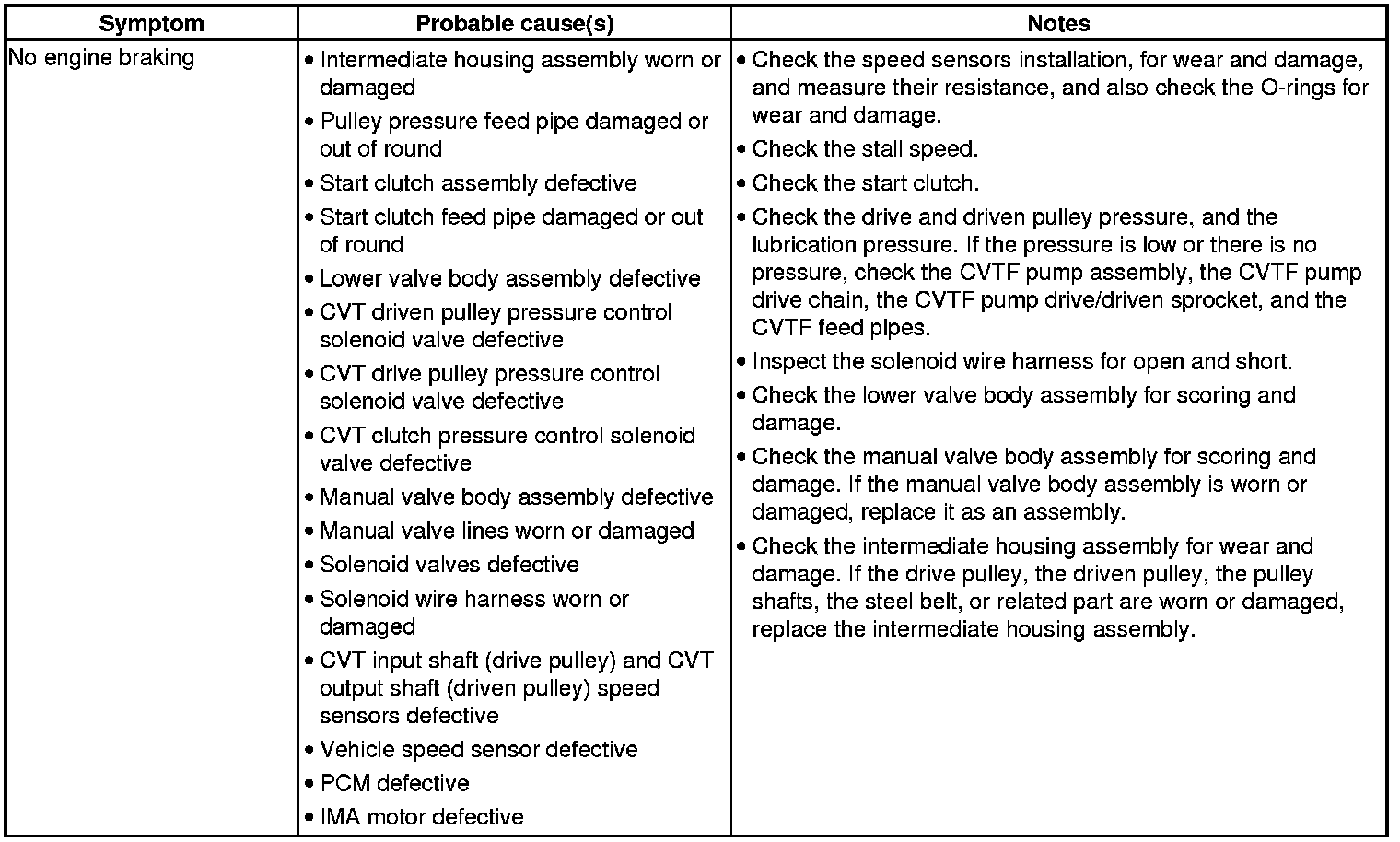

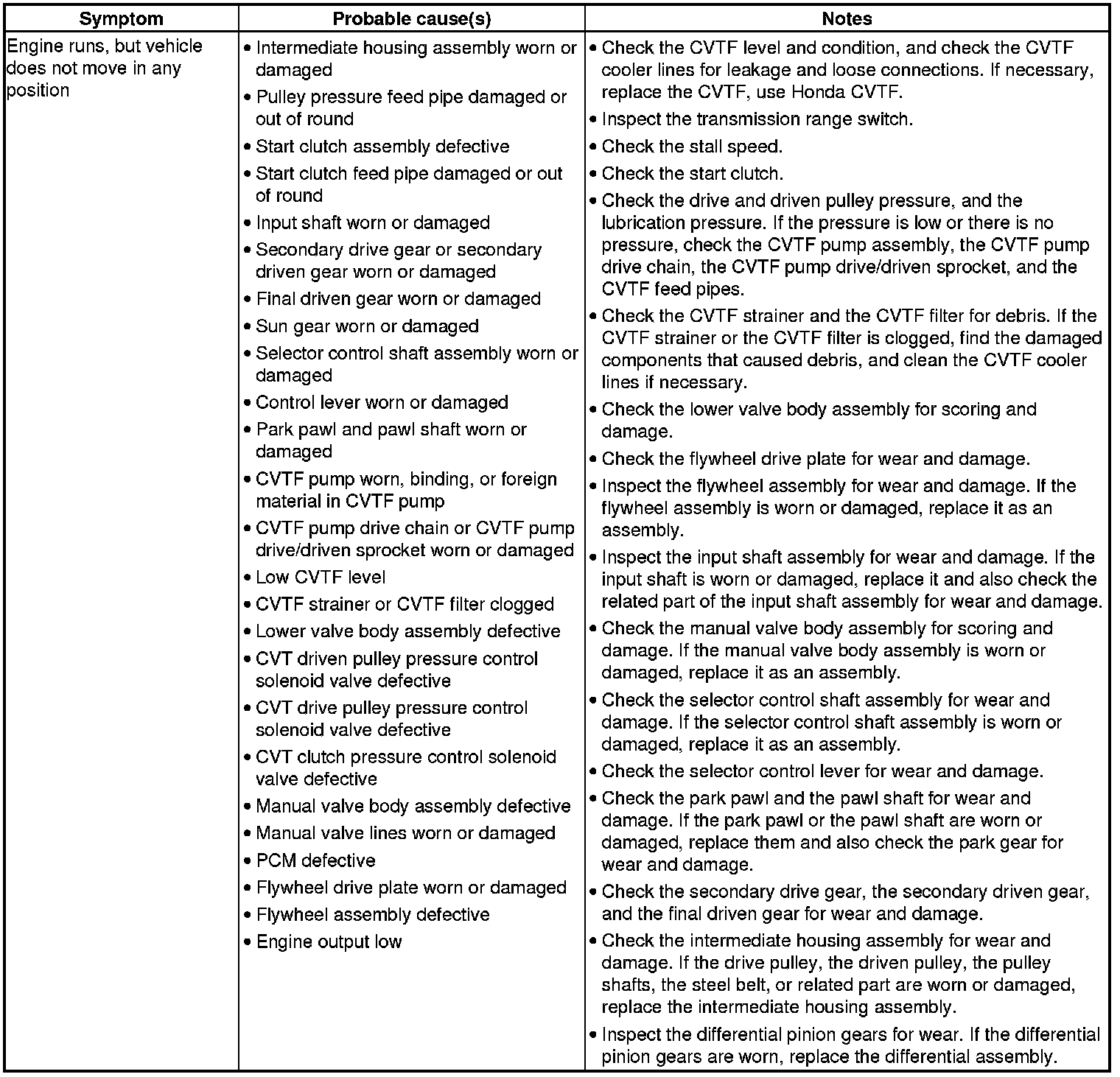

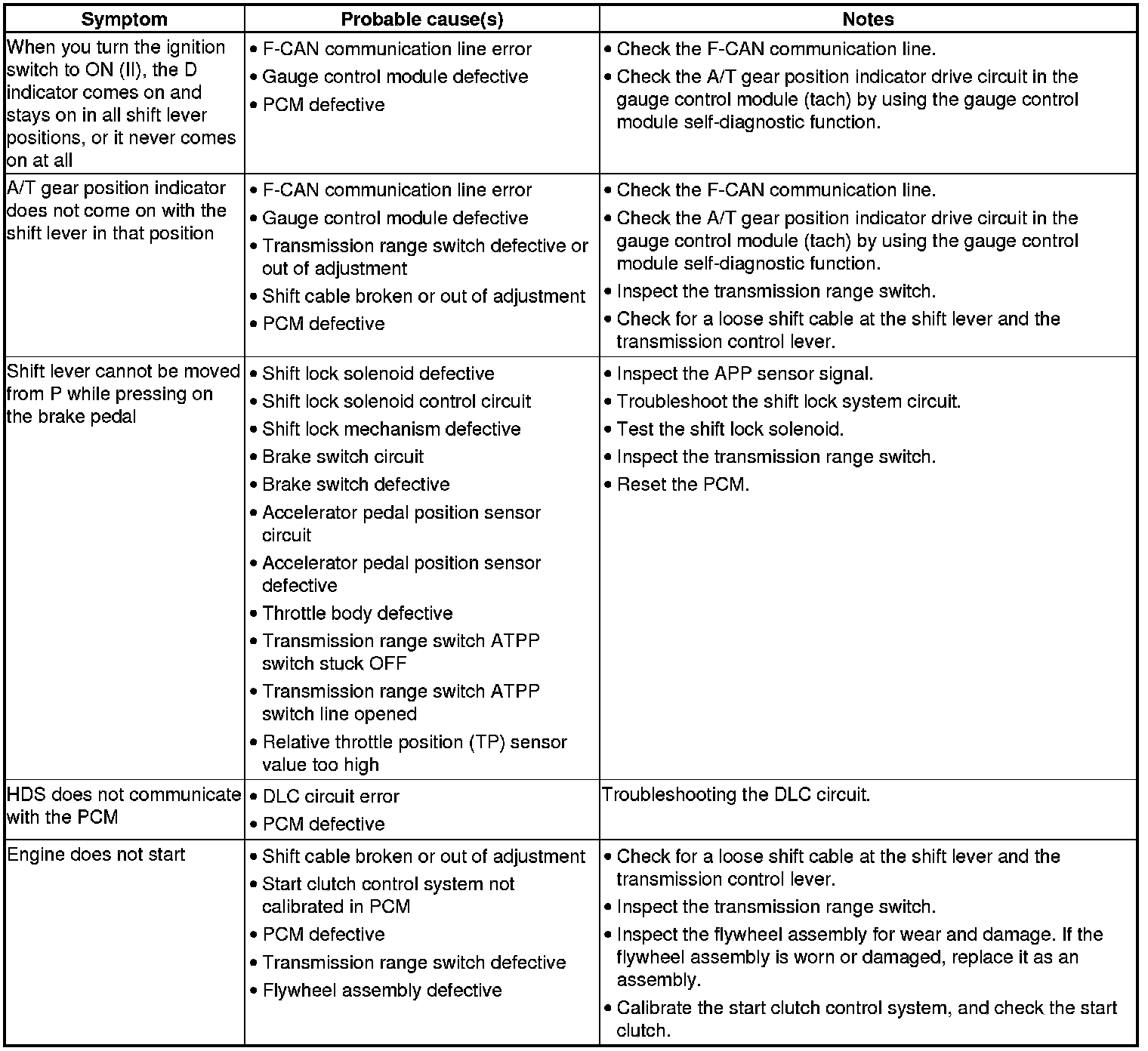

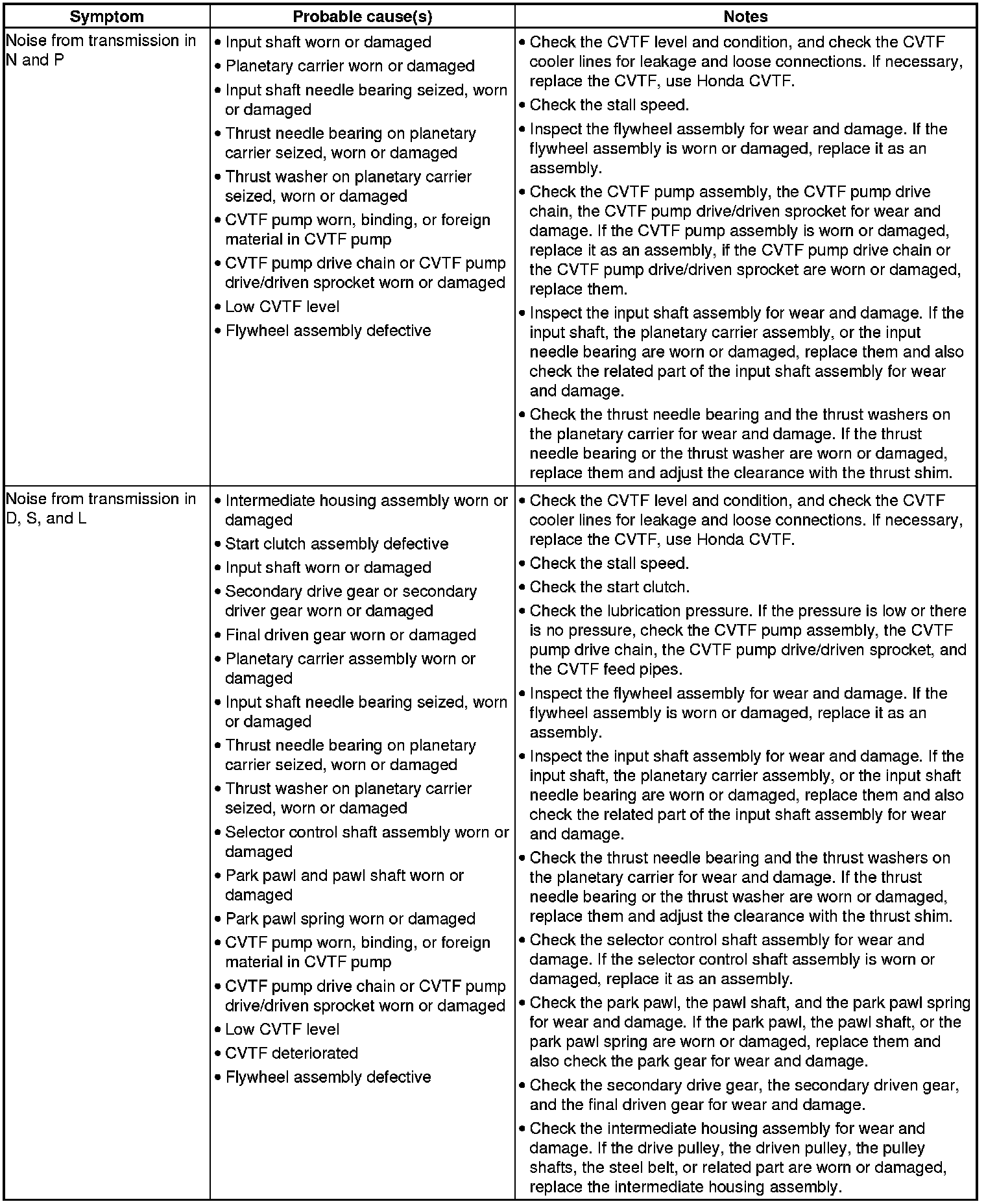

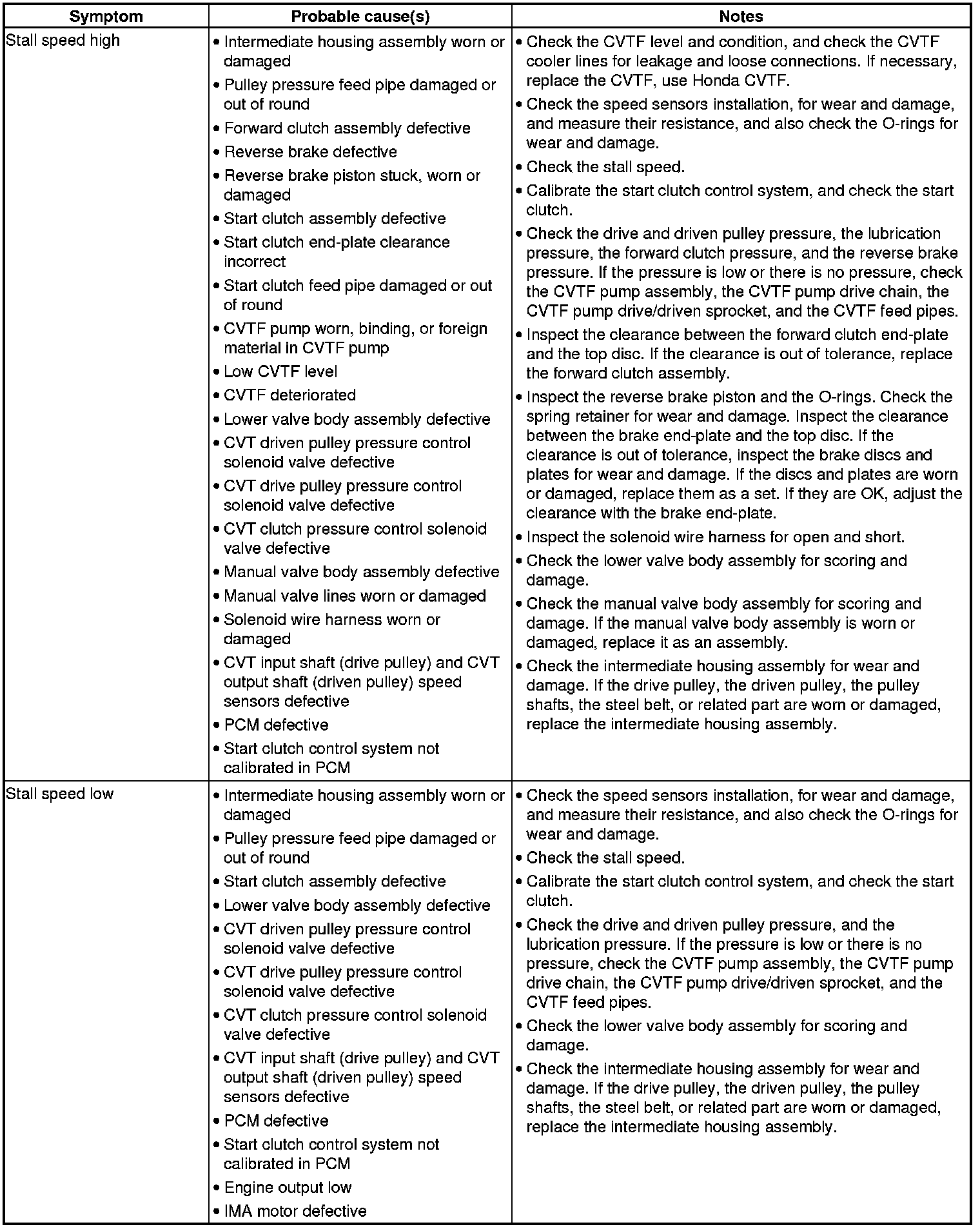

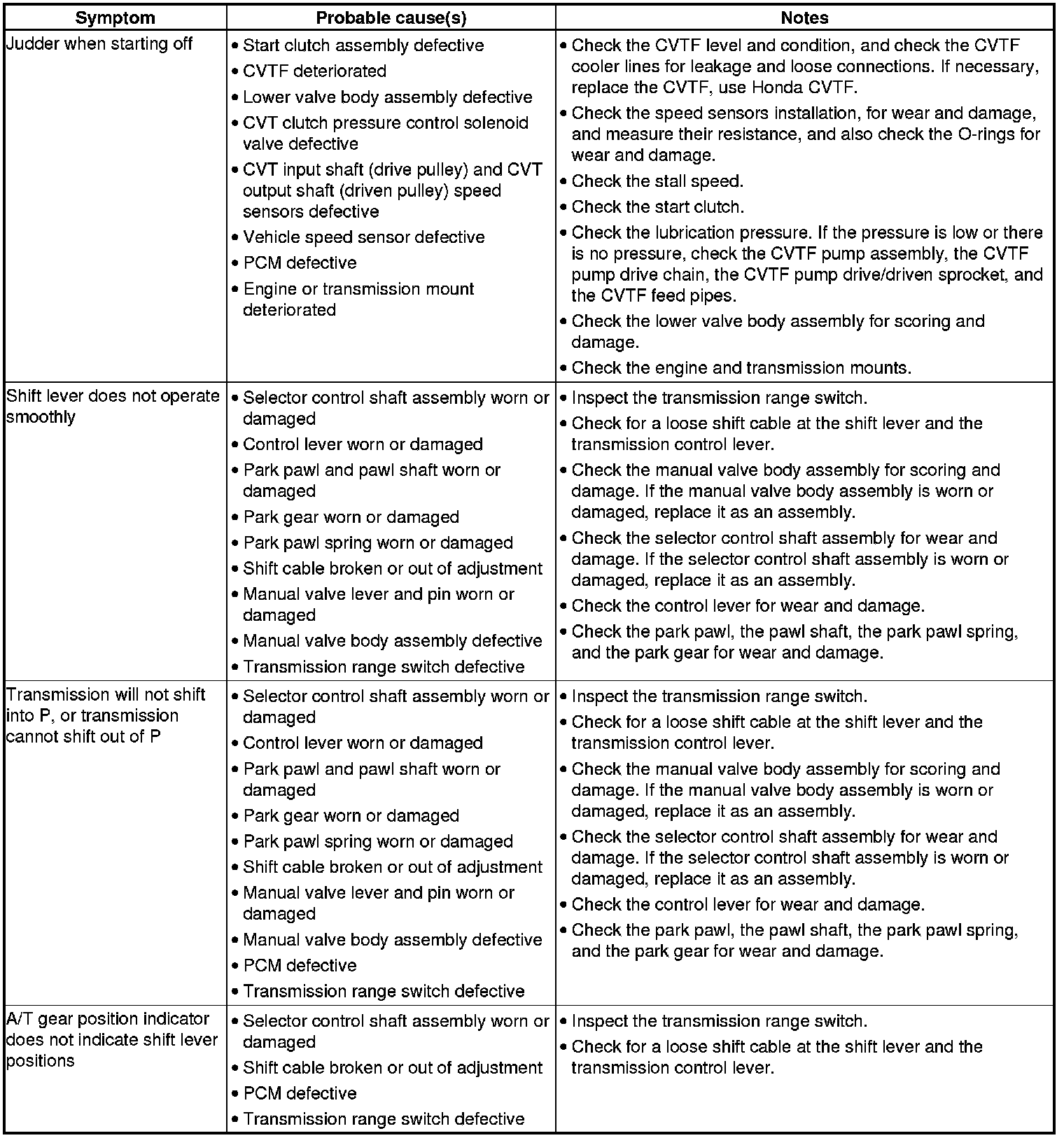

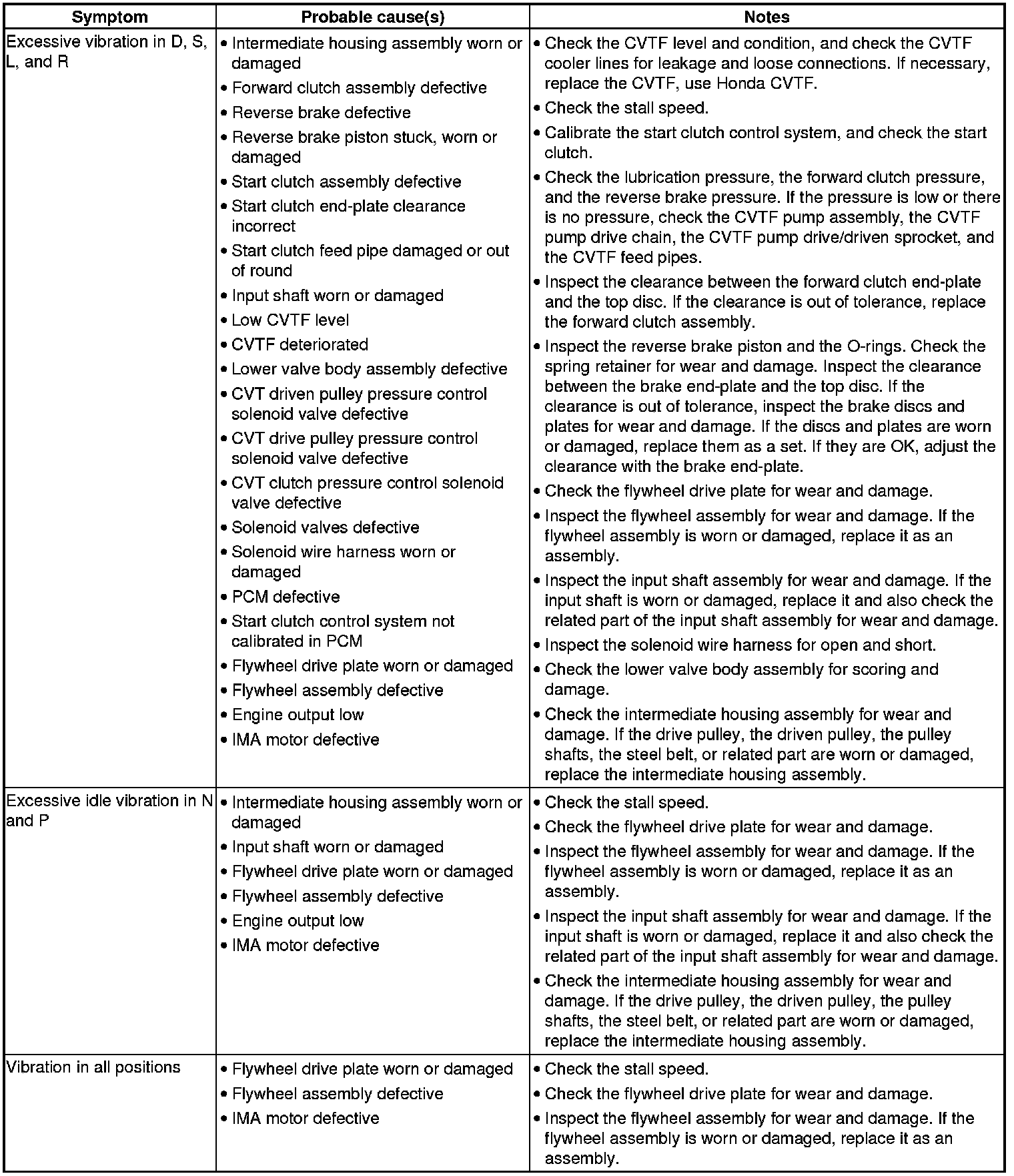

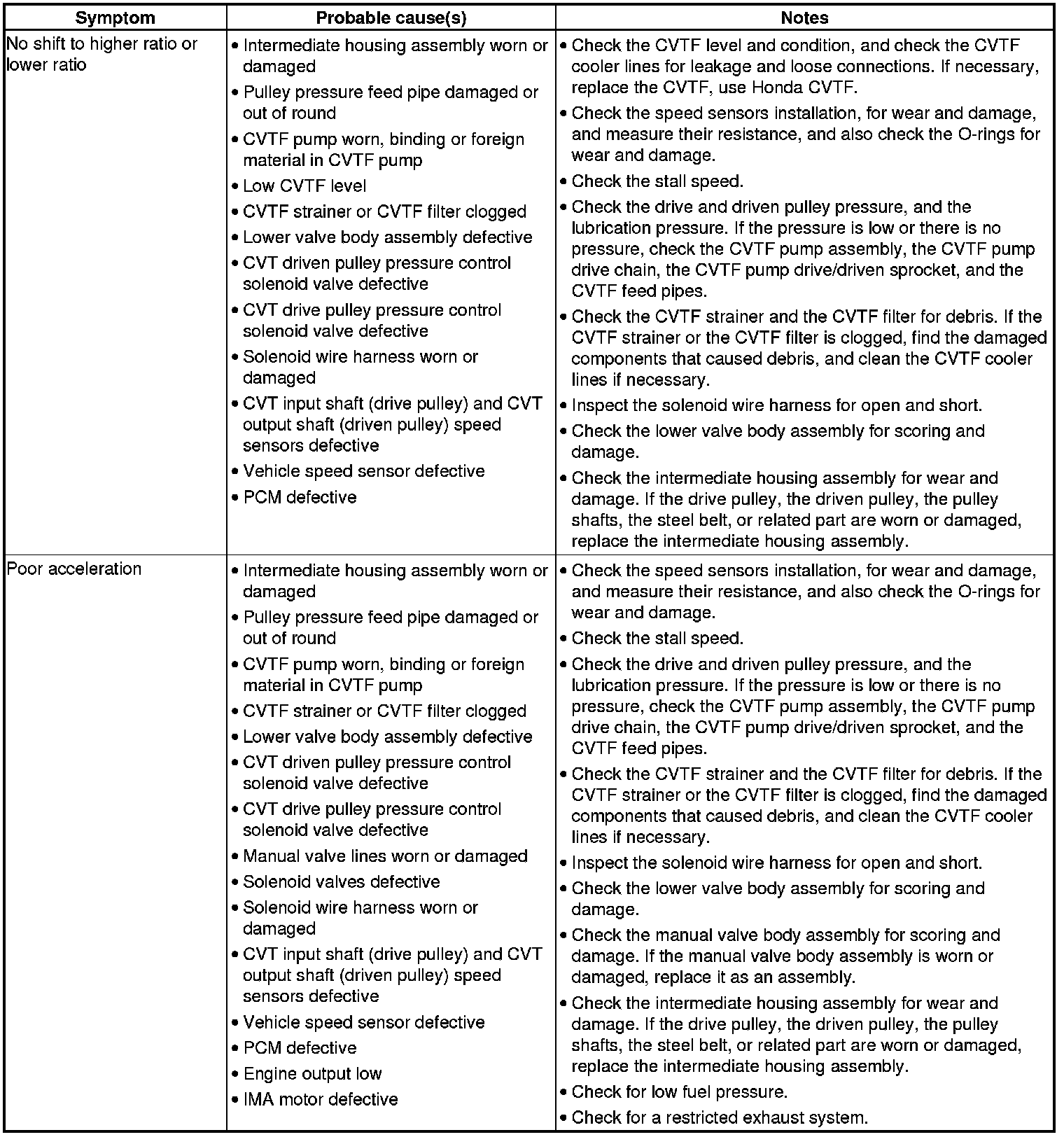

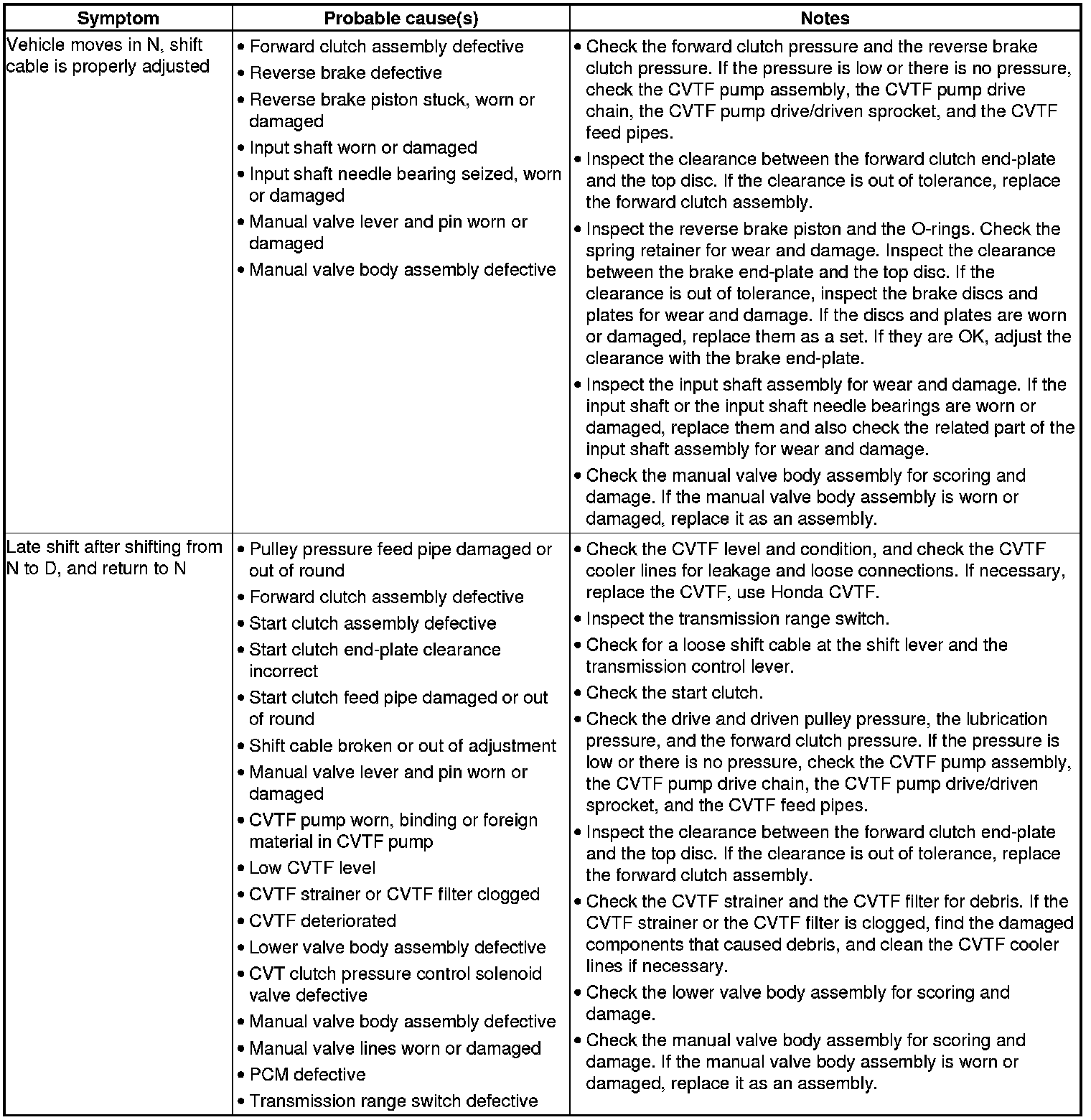

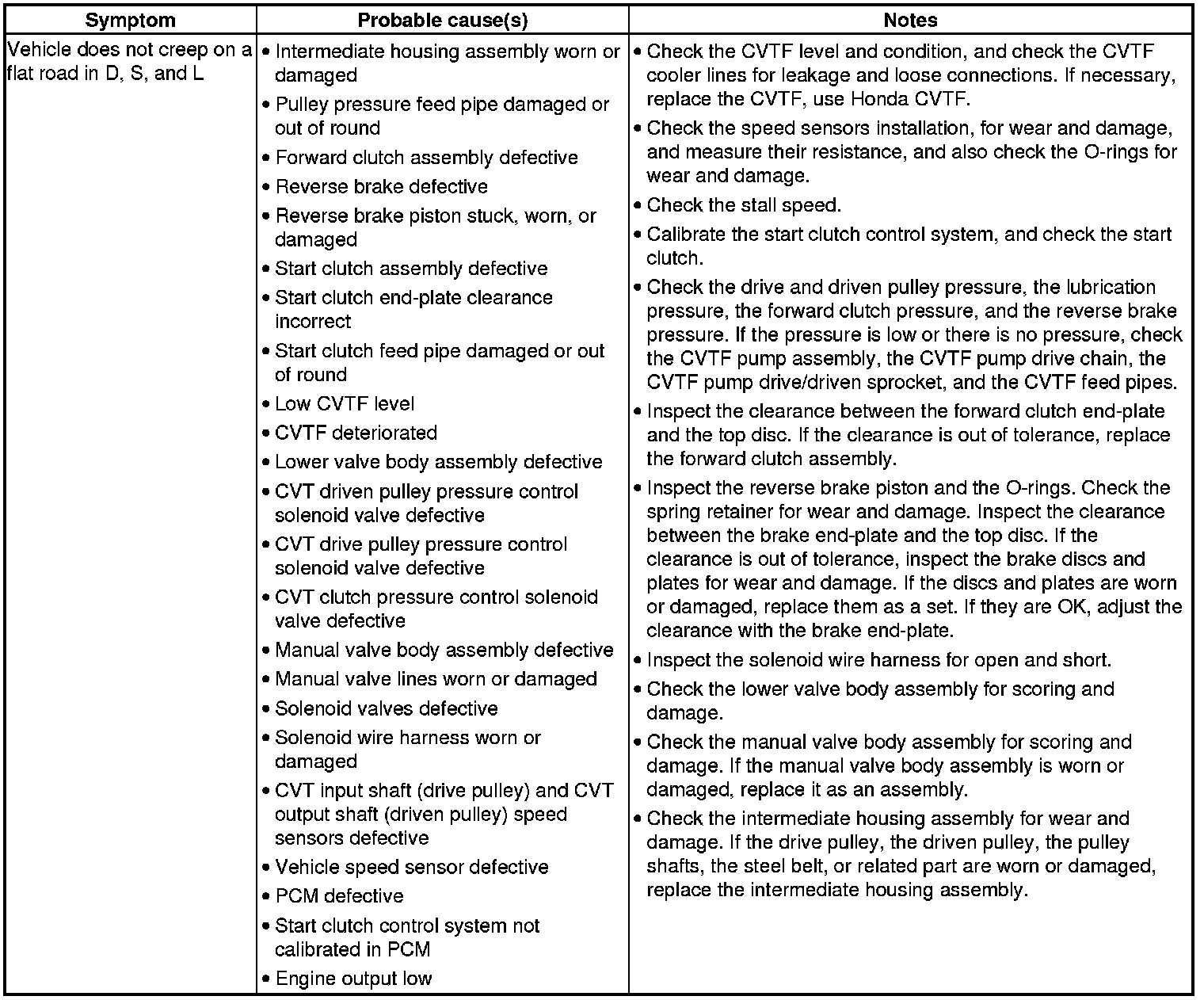

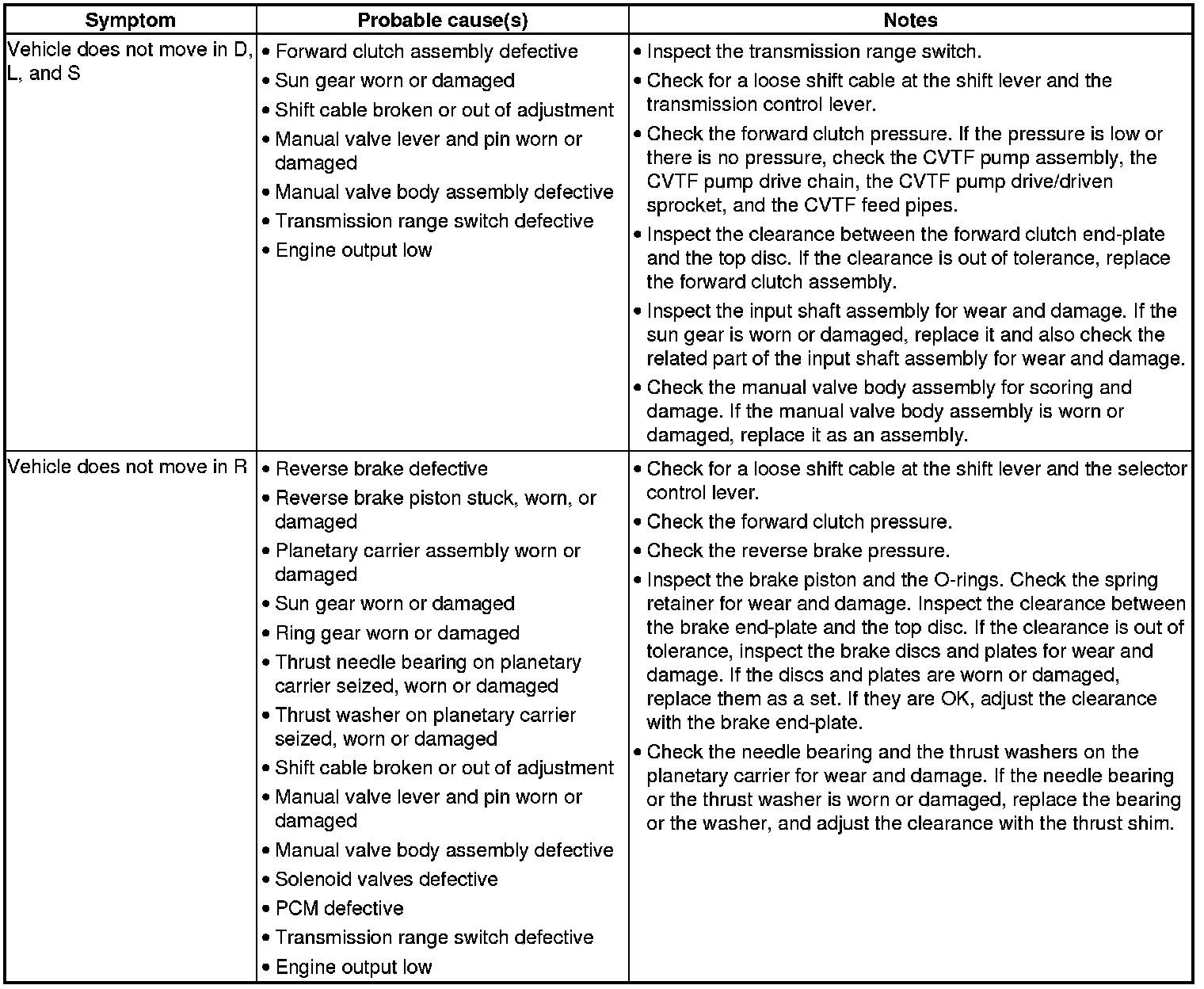

CVT System Symptom Troubleshooting Index

NOTE: Do an all DTC check with the HDS, and troubleshoot any DTCs first before following the repair procedures listed in the index.
