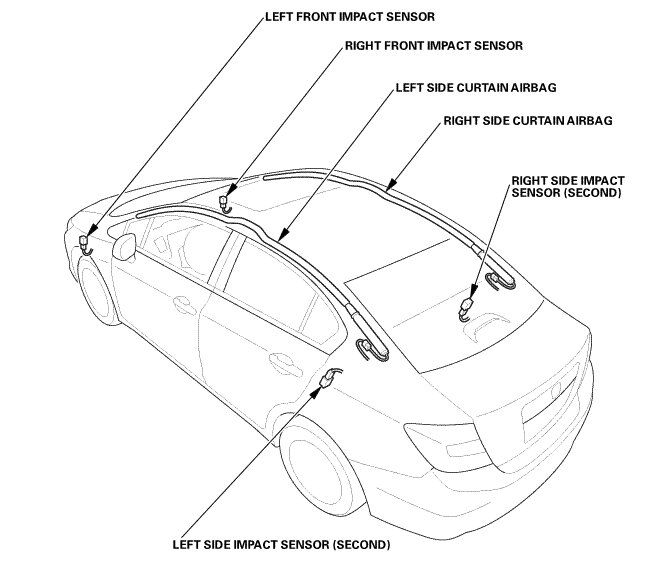

Impact Sensor: Locations




Driving Support & Restraints

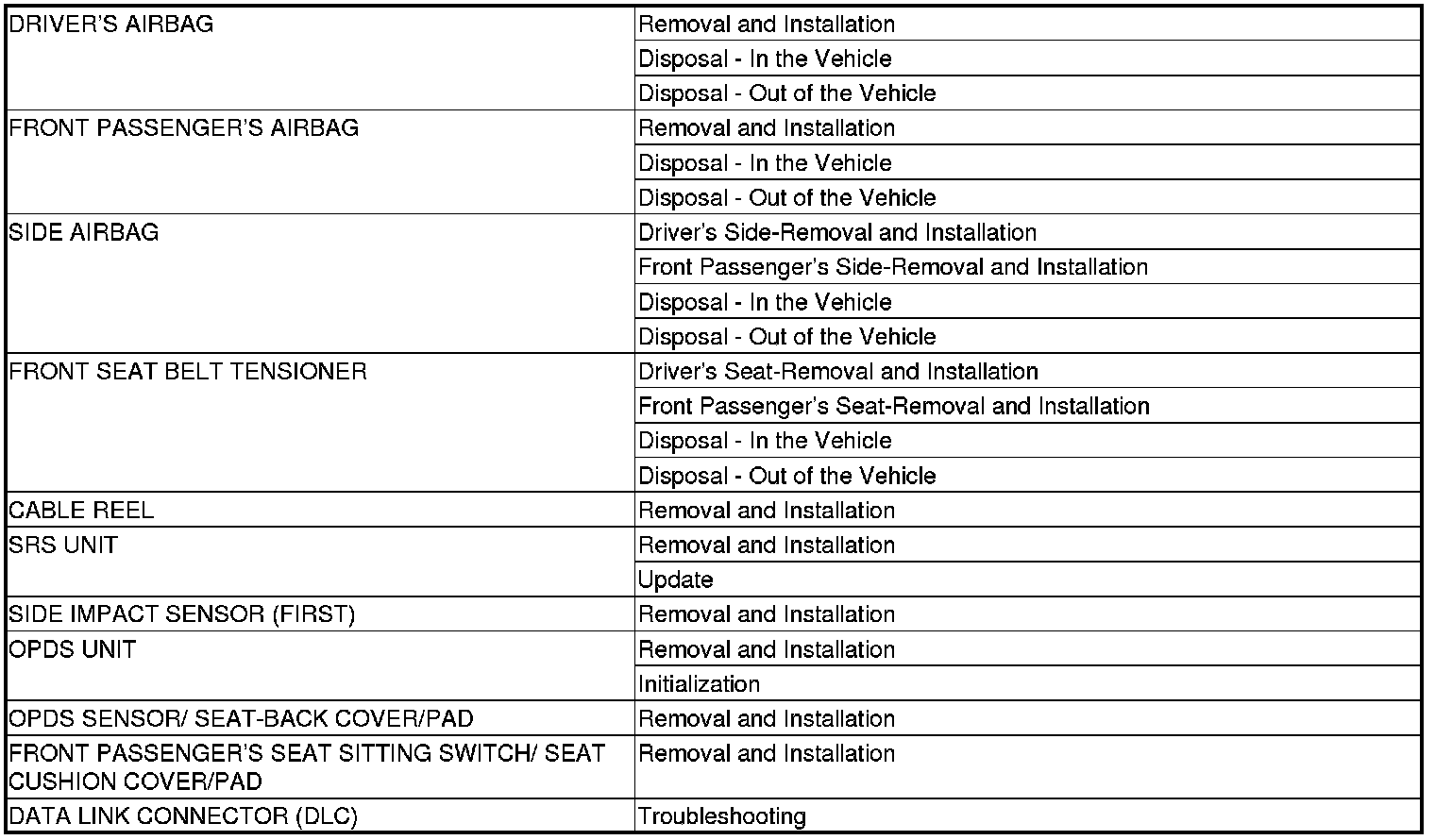

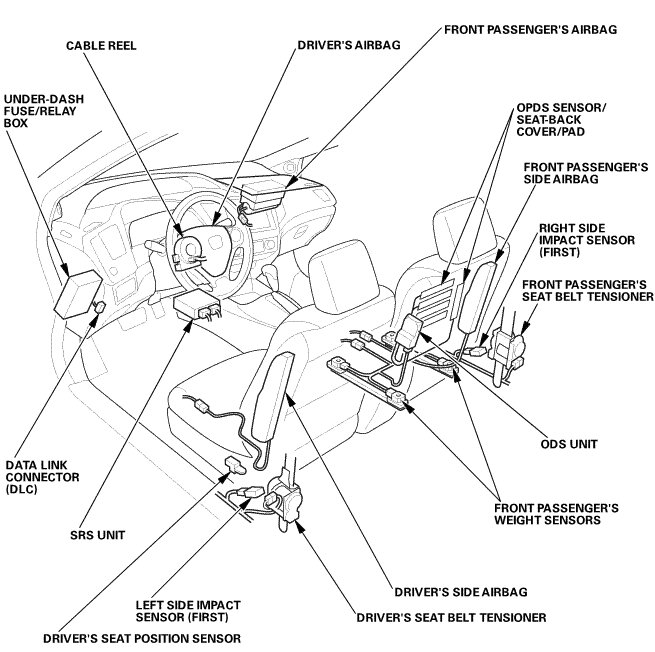

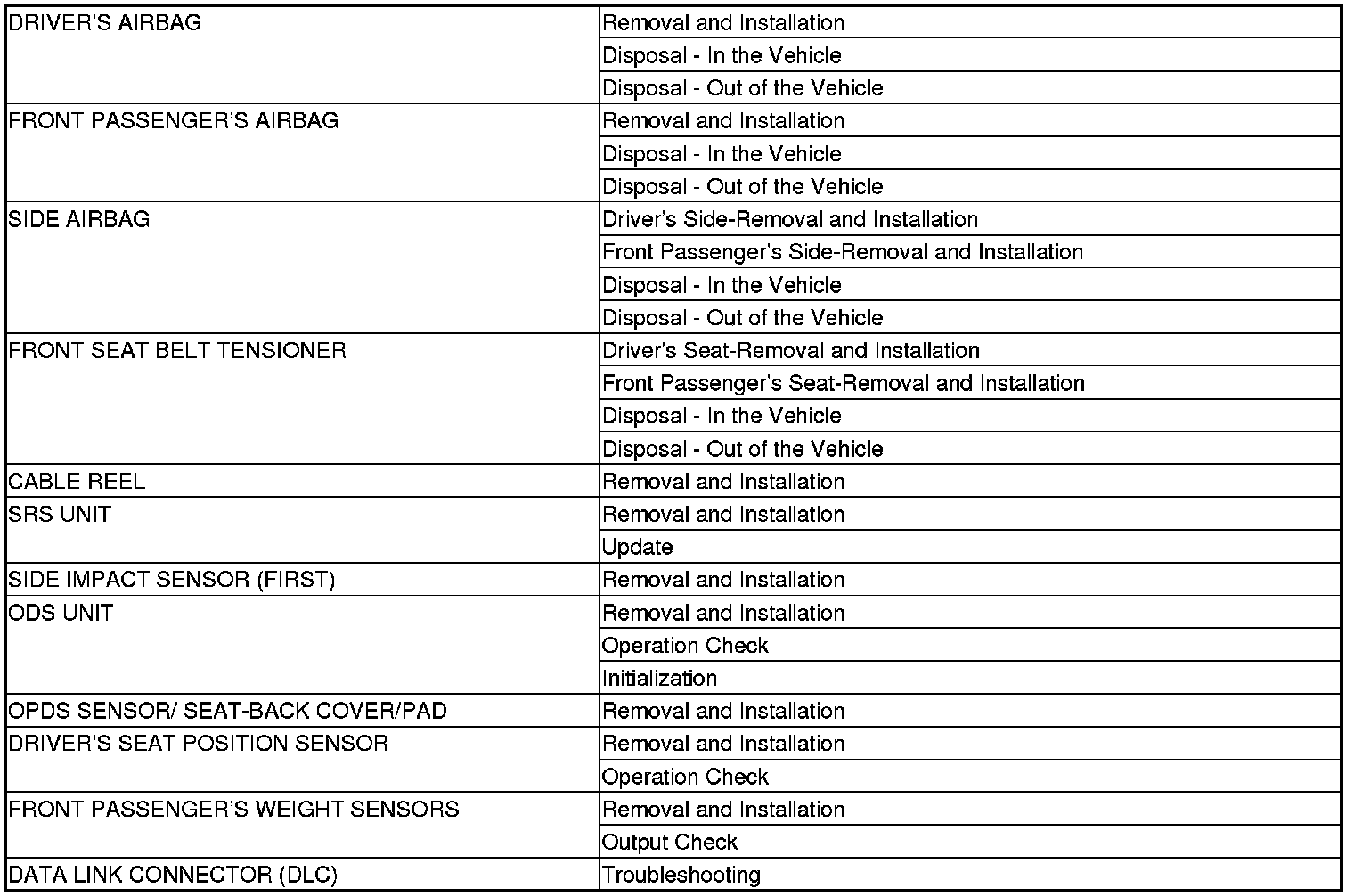

SRS Component Location Index

USA and Canada models





















Mexico models
