Transmission Drain & Refill Locations

CVTF - Drain






Drain plug (A), and drain the CVT fluid (CVTF).

CVTF - Refill

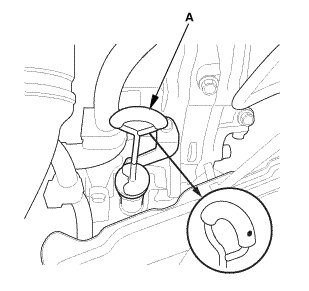

Remove the dipstick (yellow loop) (A) from the dipstick tube.

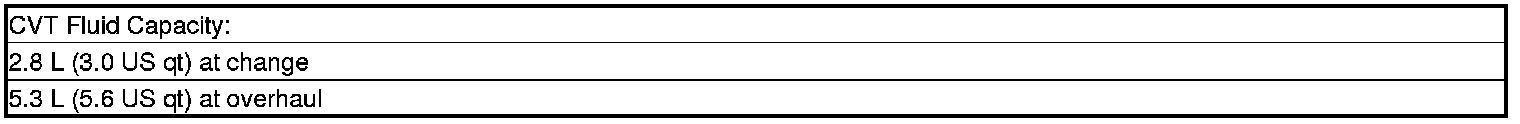

Refill the transmission with the recommended fluid through the dipstick tube opening (A) to bring the fluid level between the upper mark and the lower mark of the dipstick. Always use Honda CVTF. Using a non-Honda CVTF can affect shift quality.

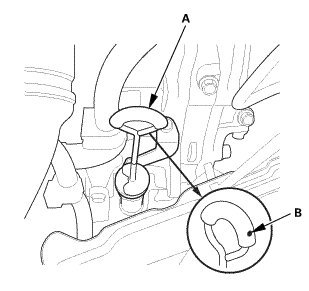

Insert the dipstick (A) with the dot (B) on the handle facing to the left of the vehicle.
