Part Two

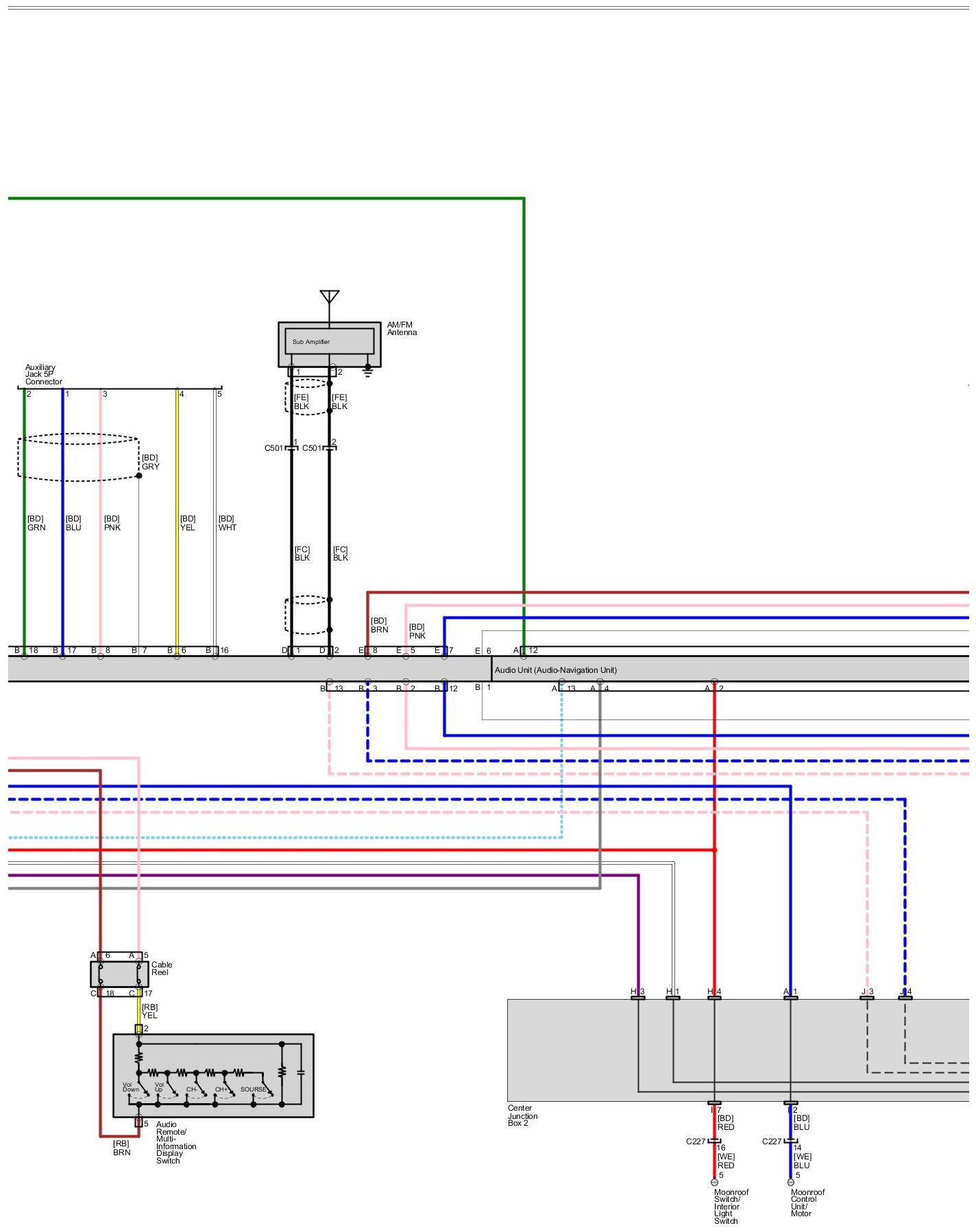

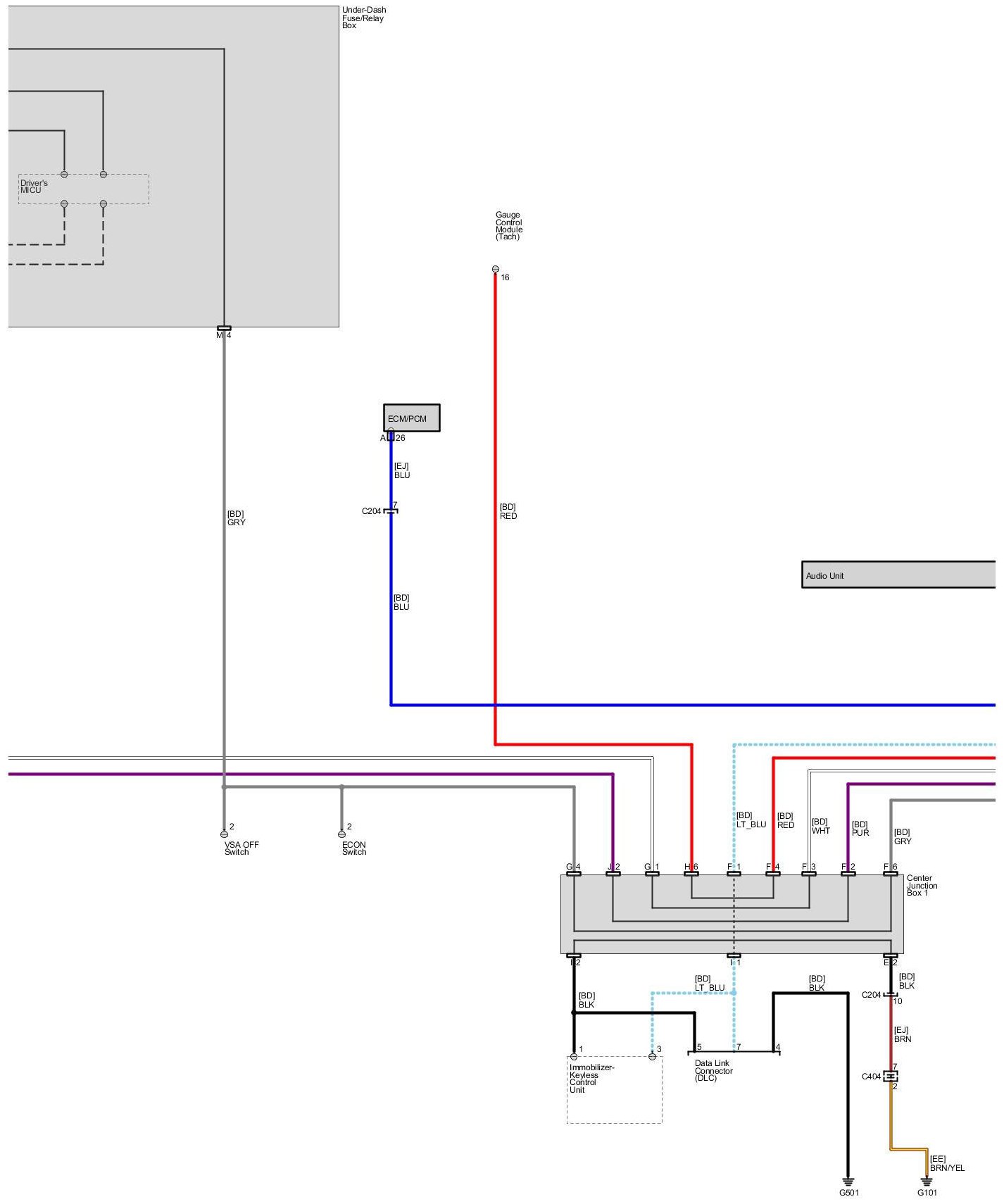

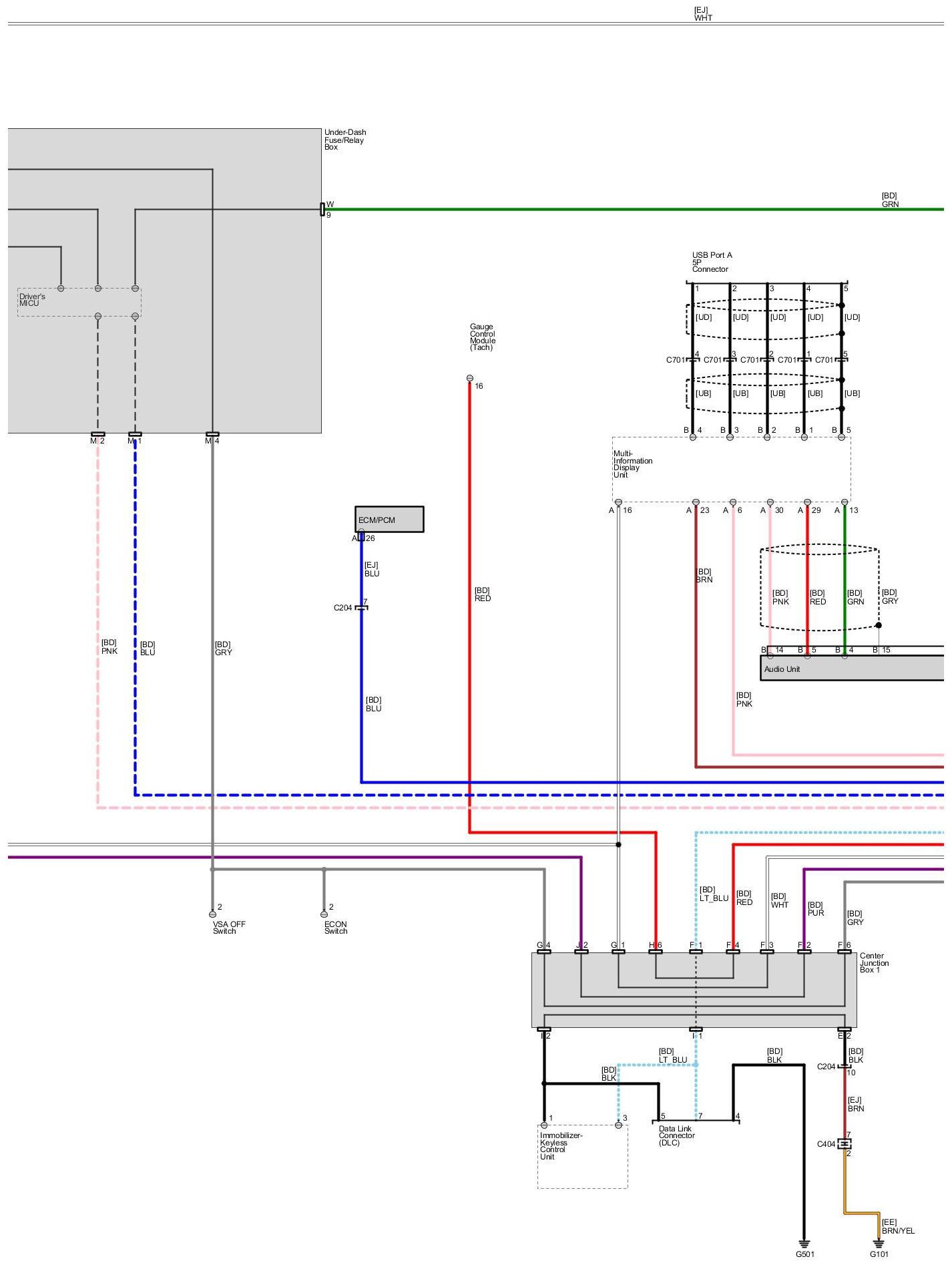

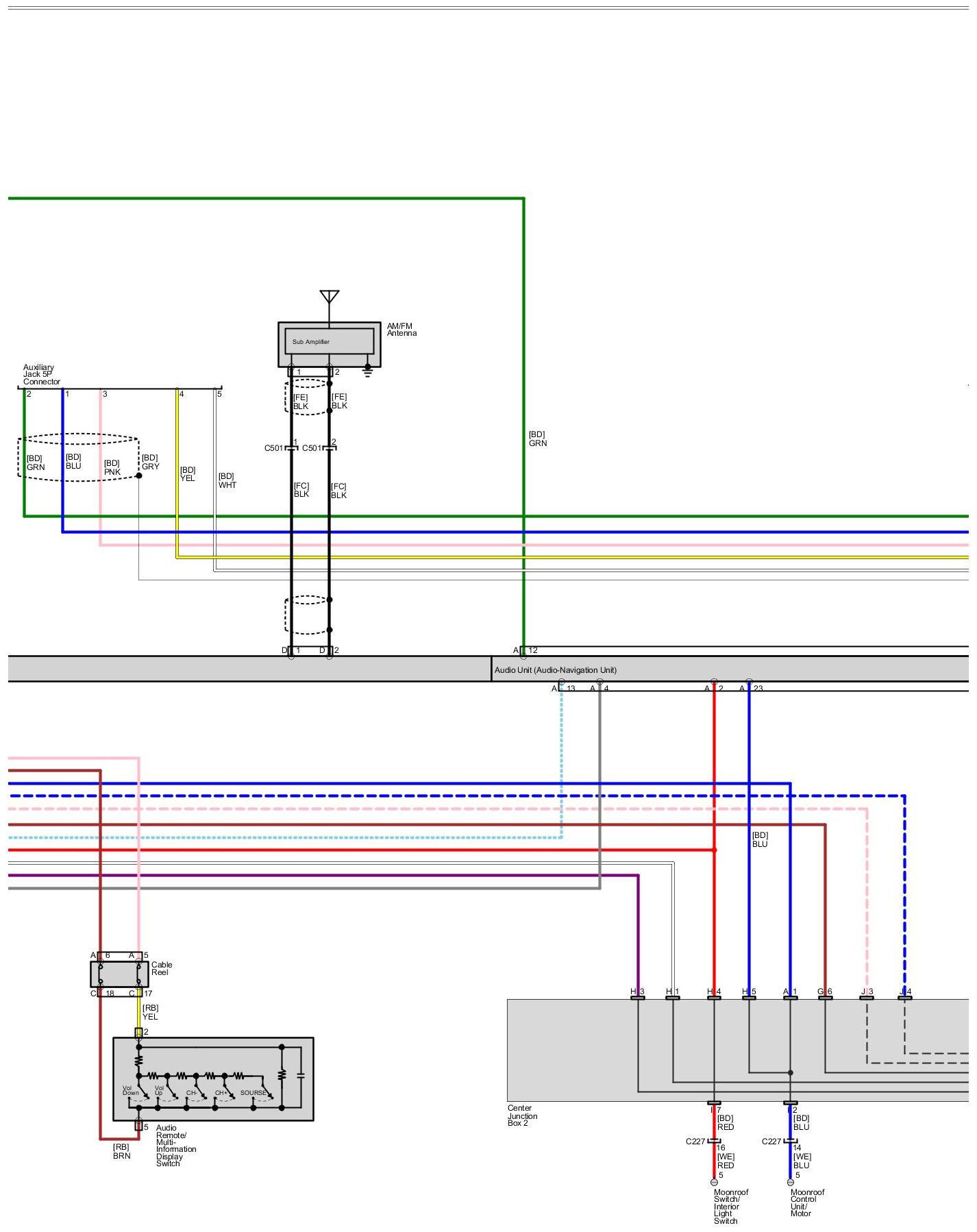

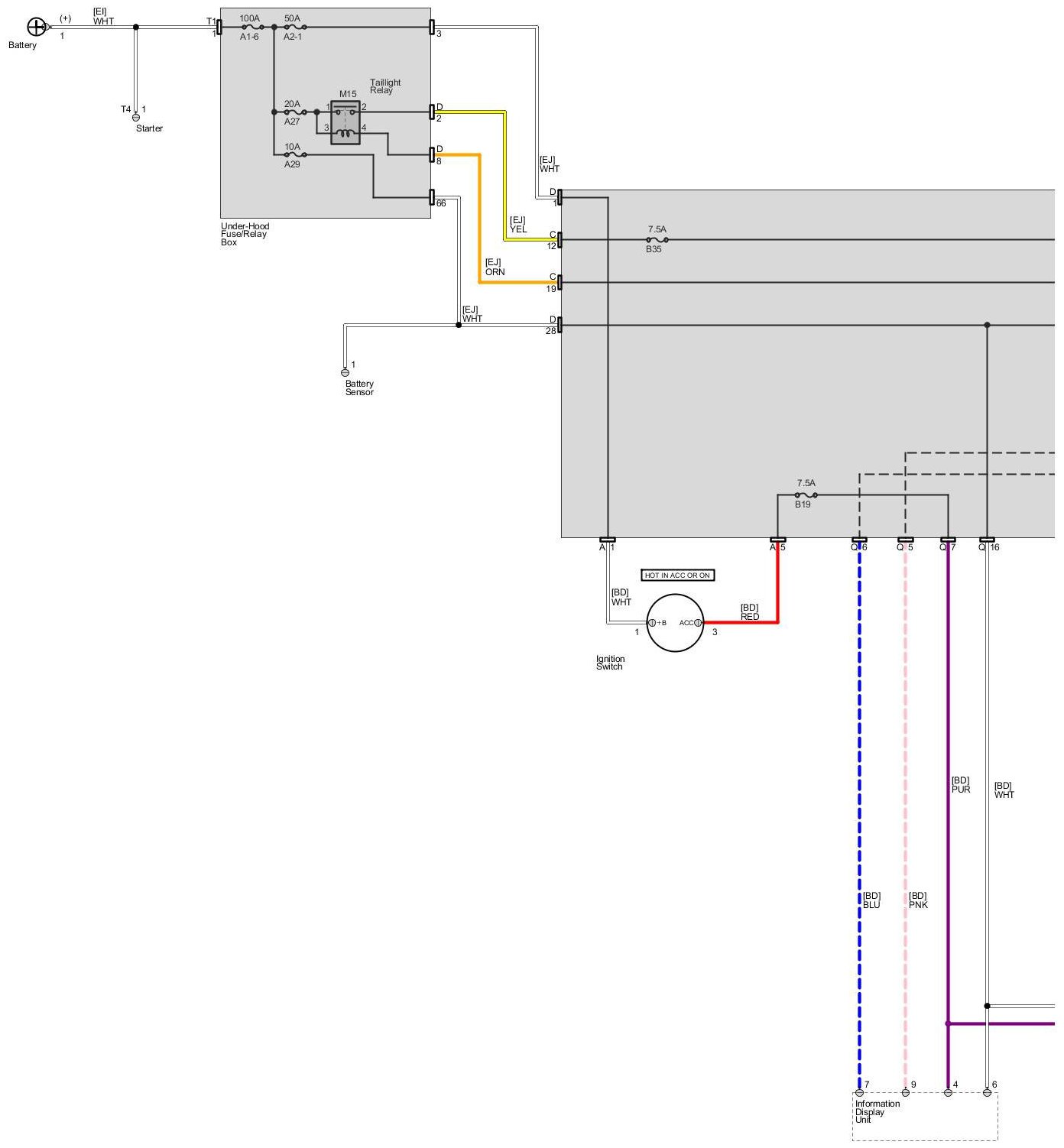

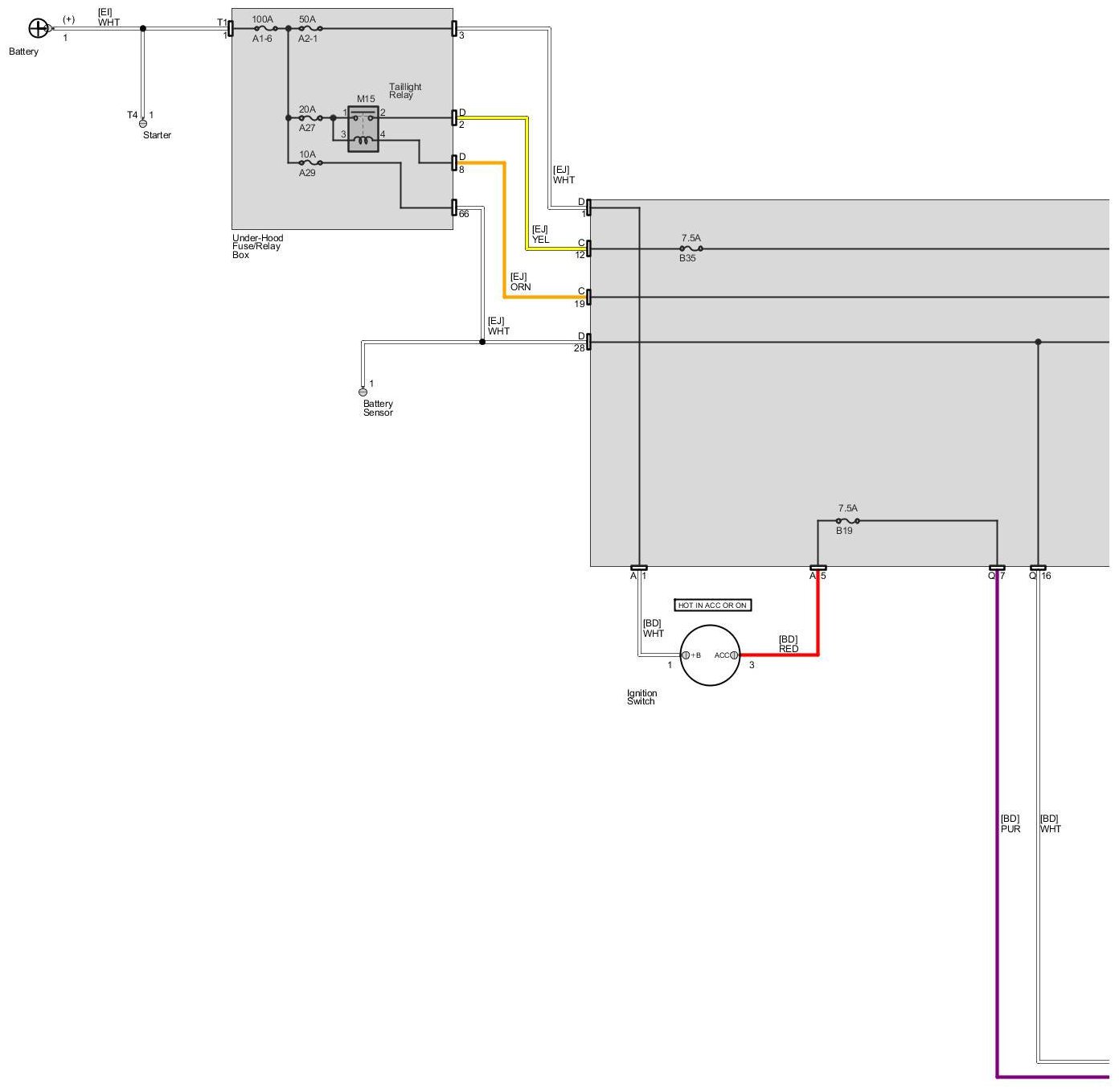

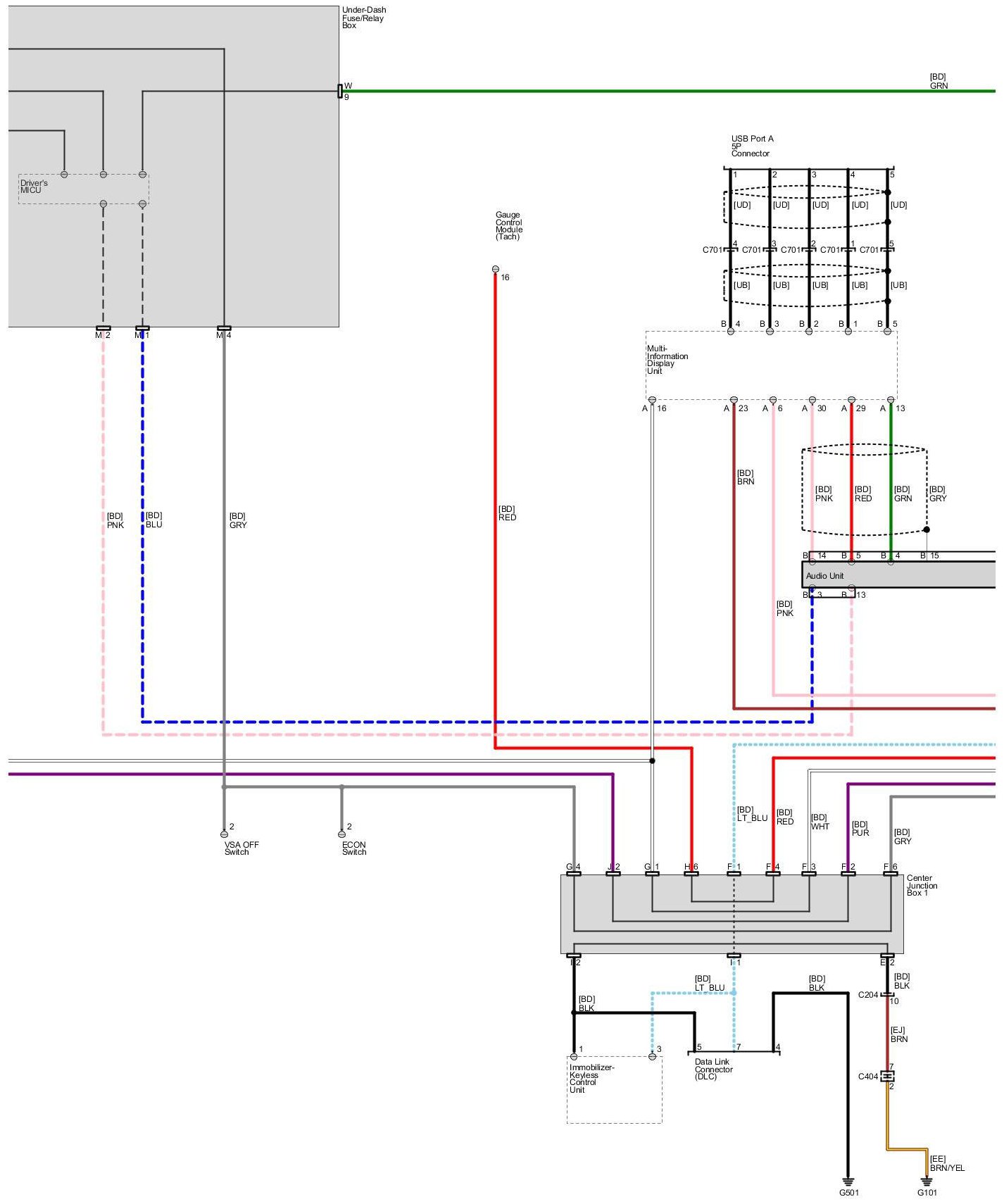

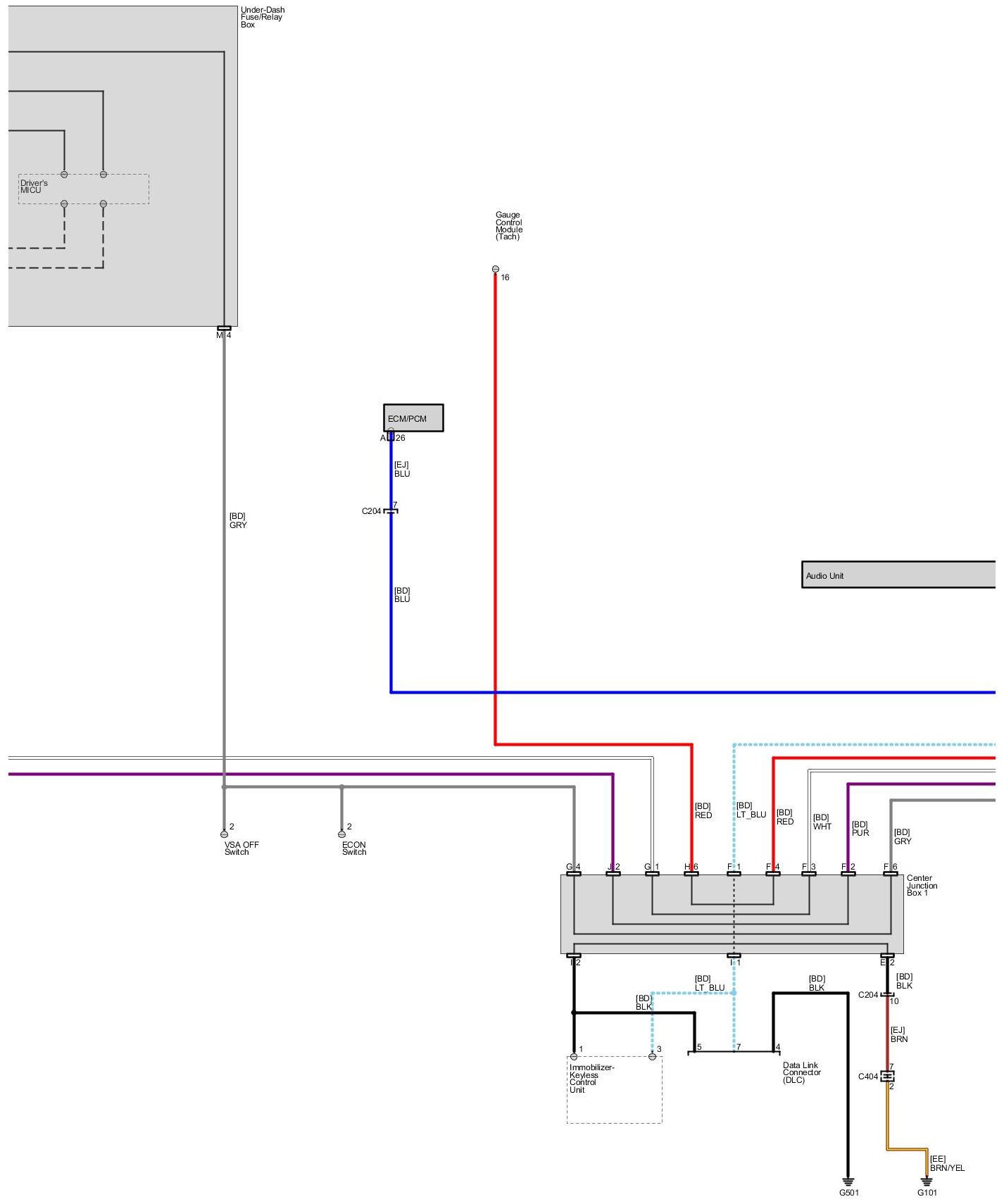

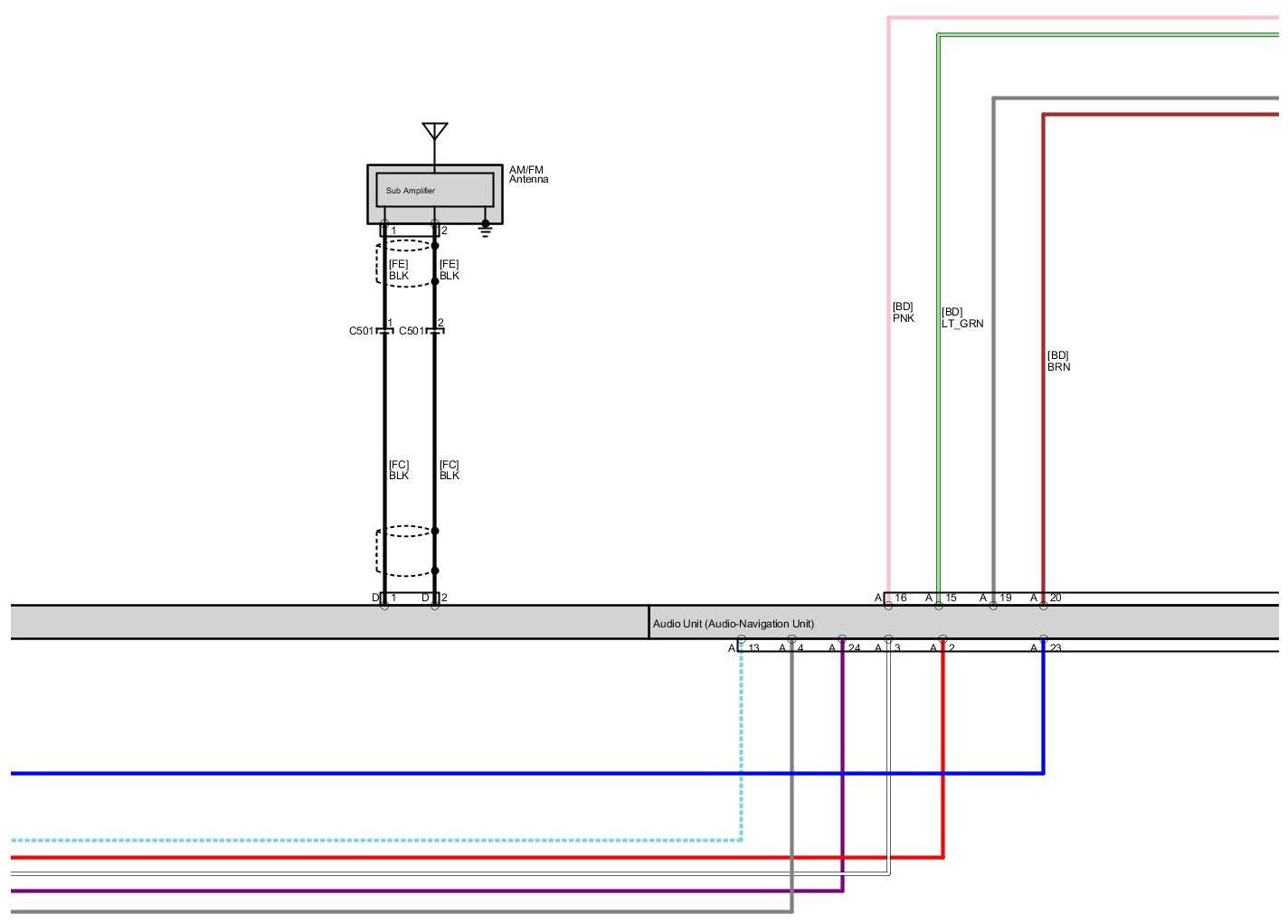

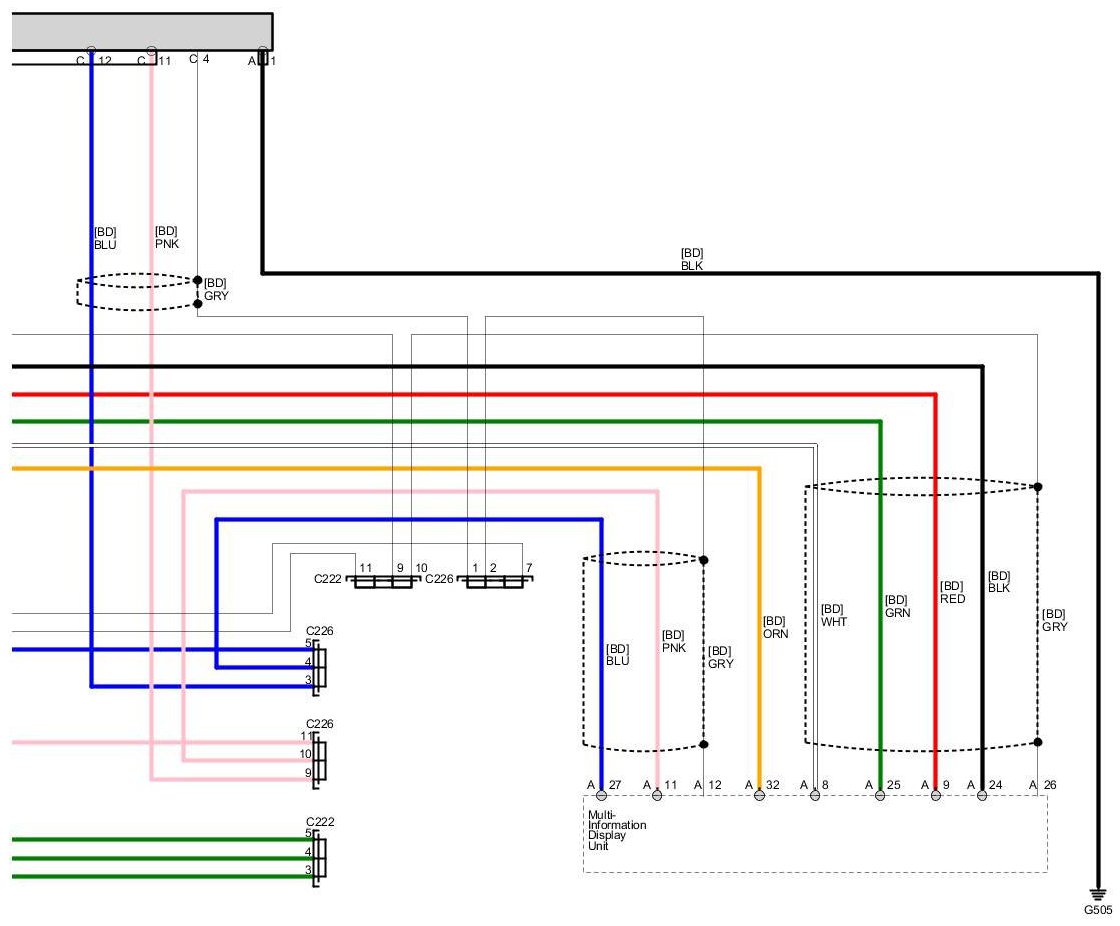

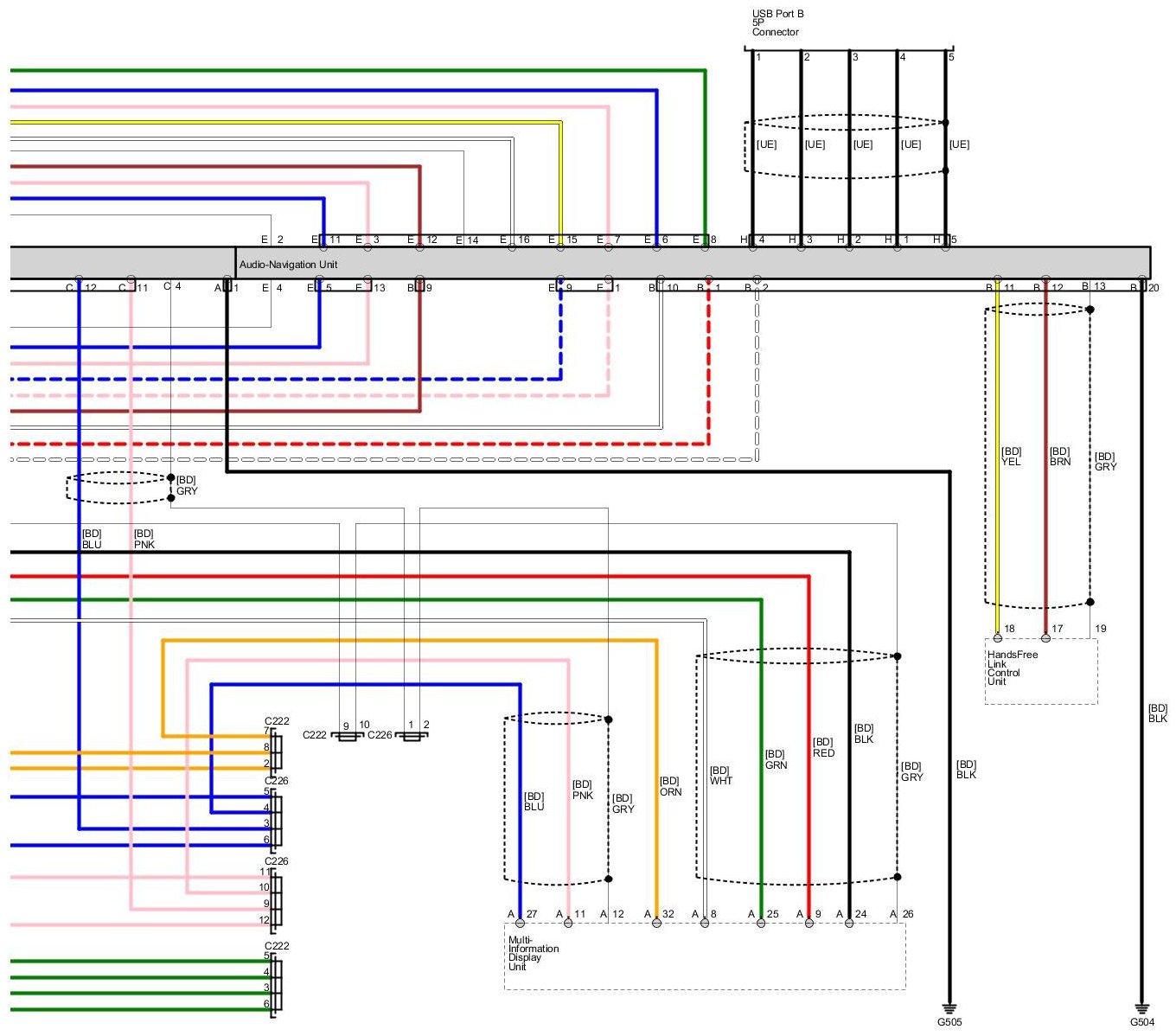

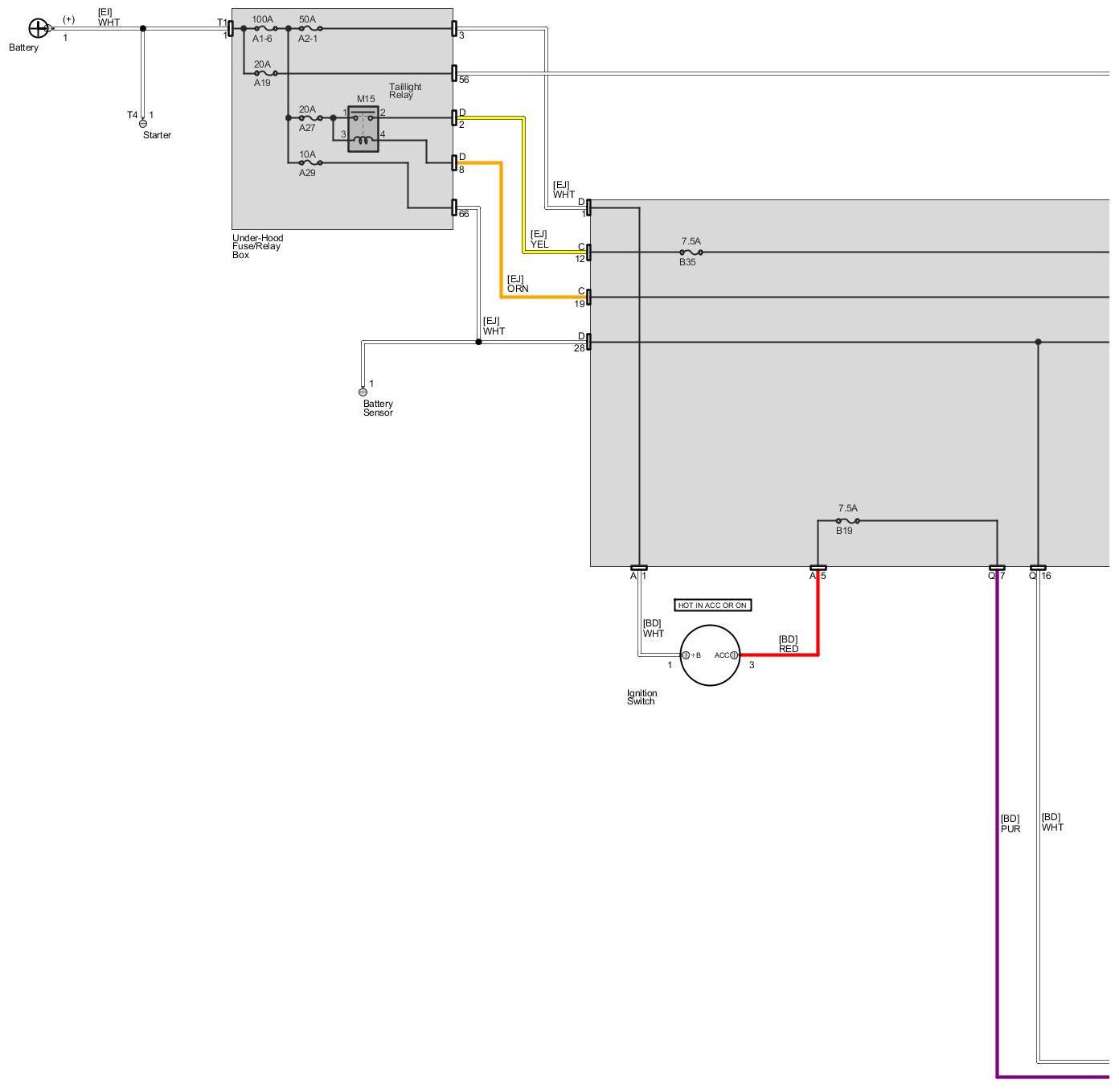

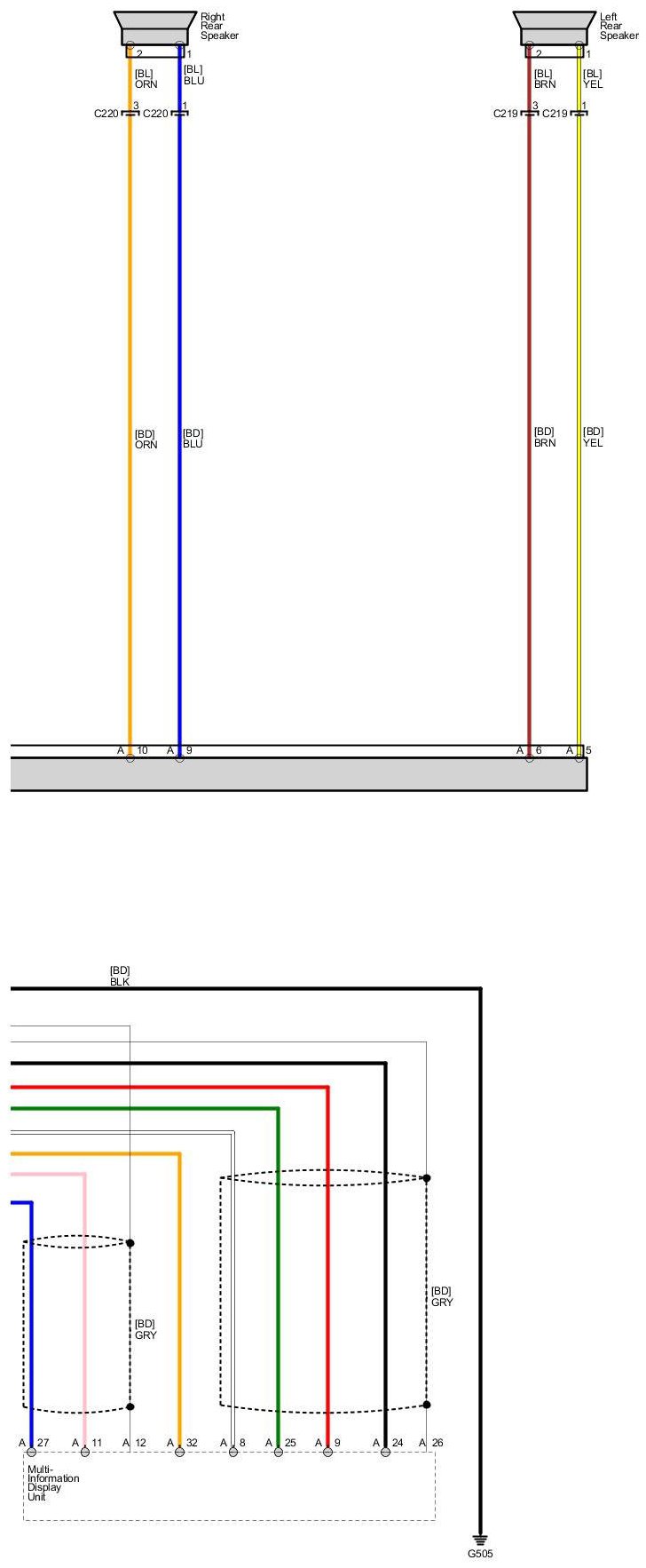

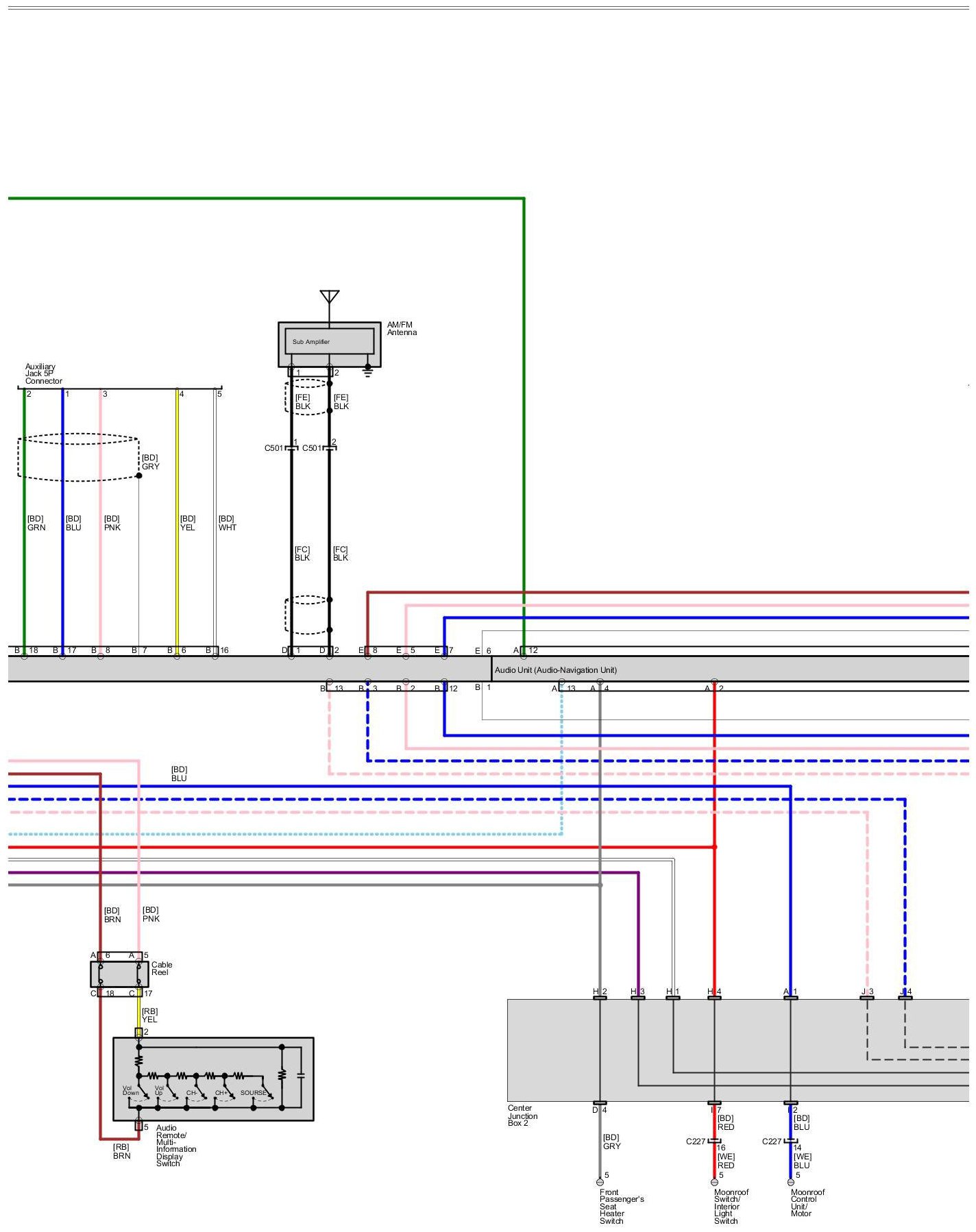

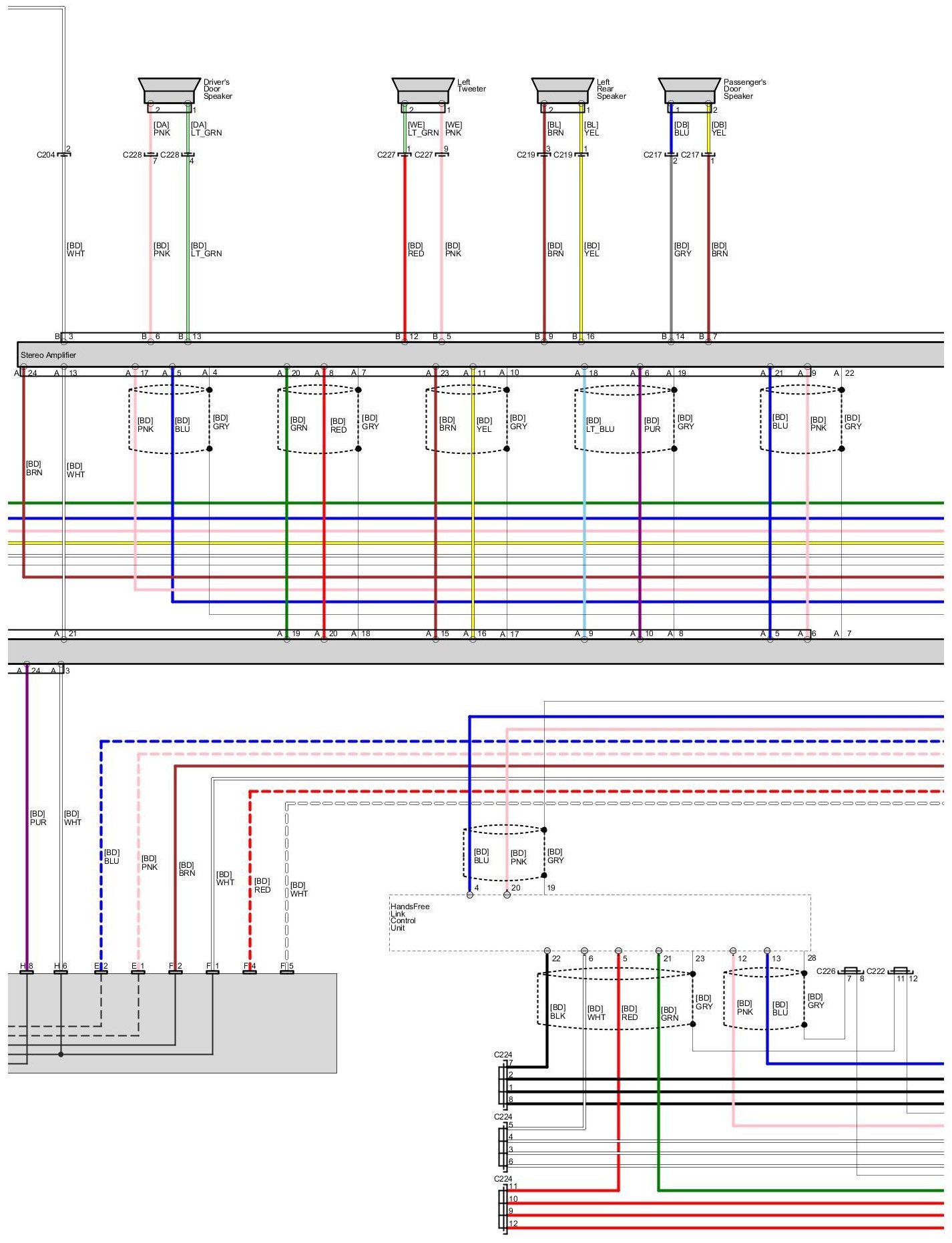

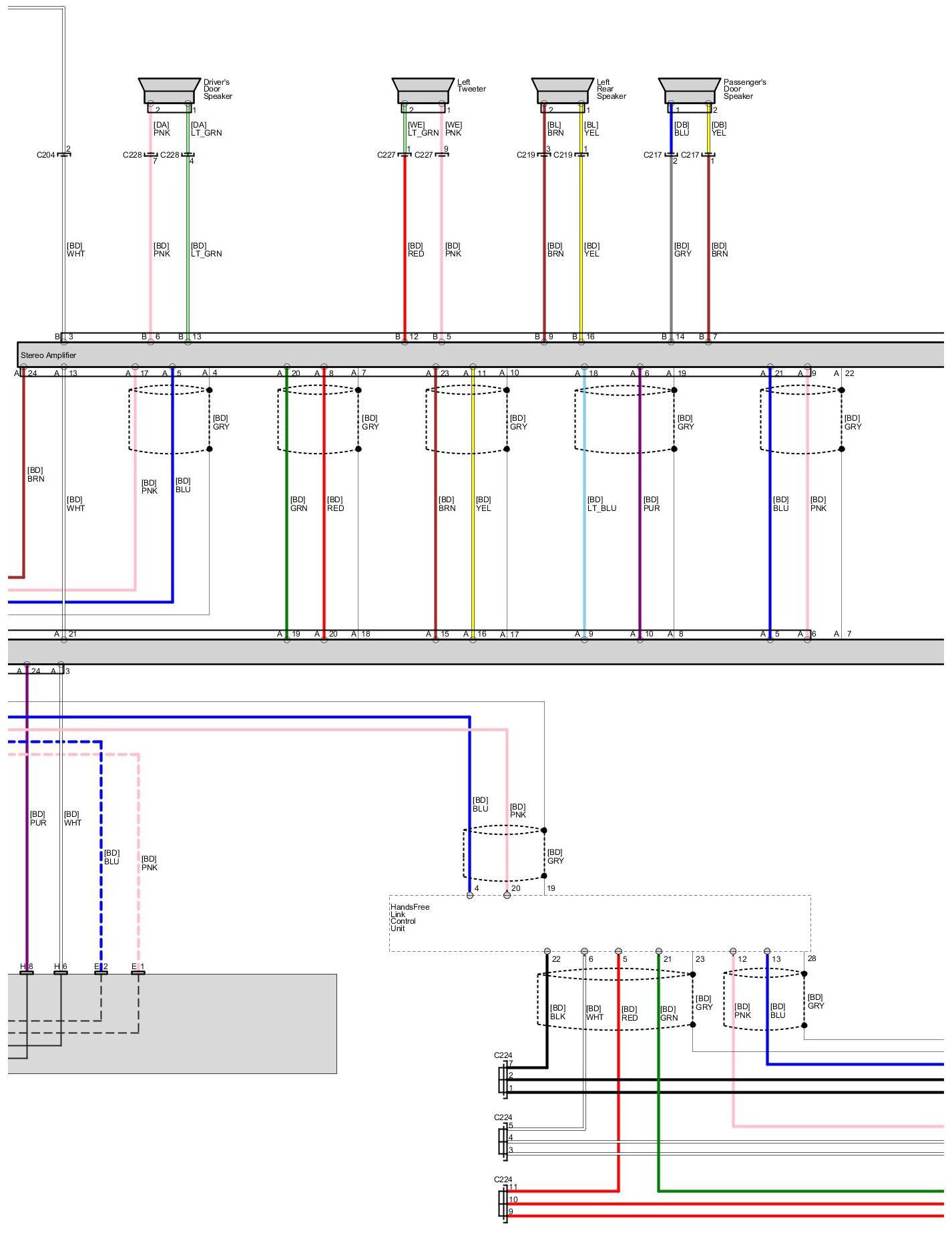

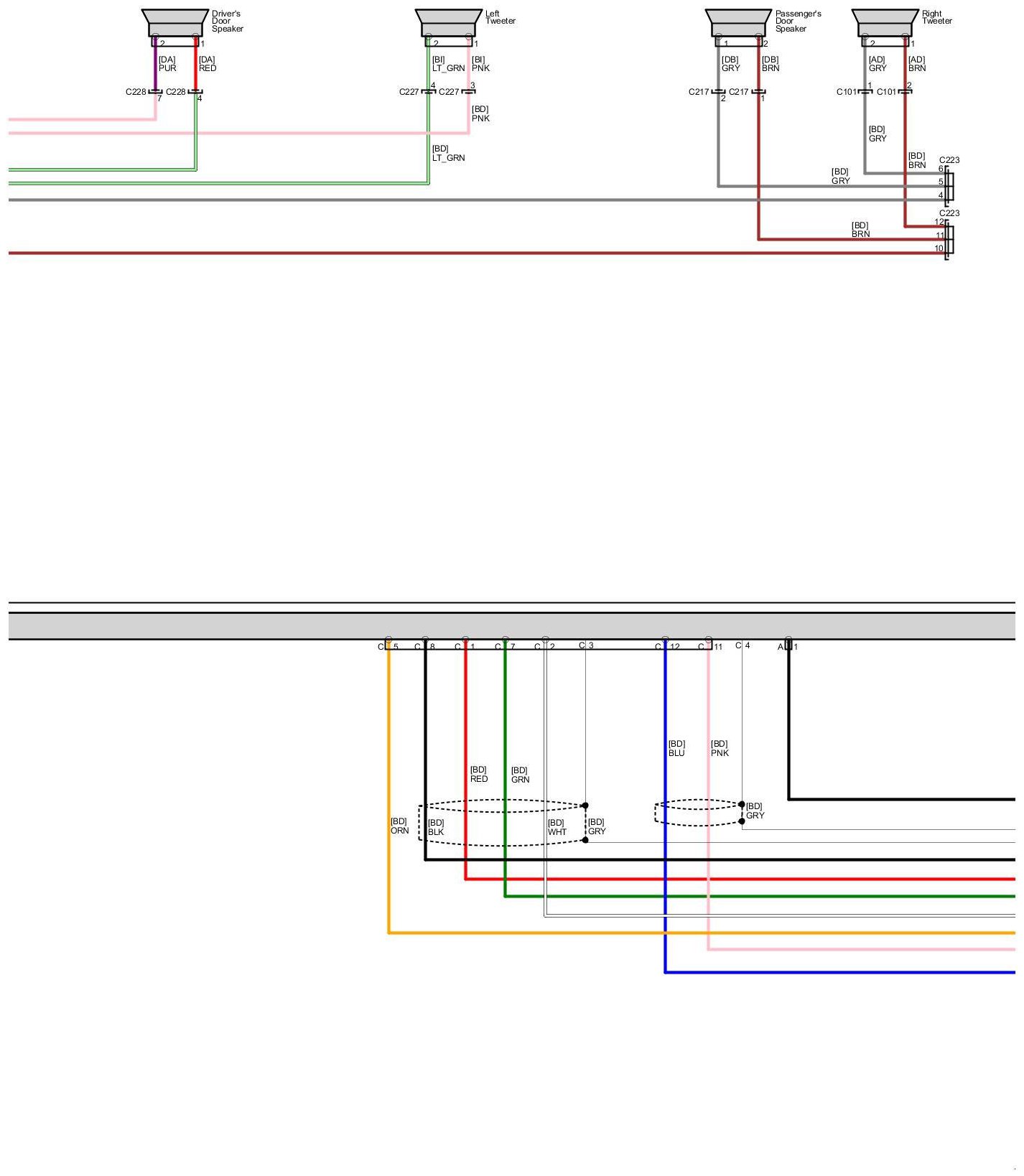

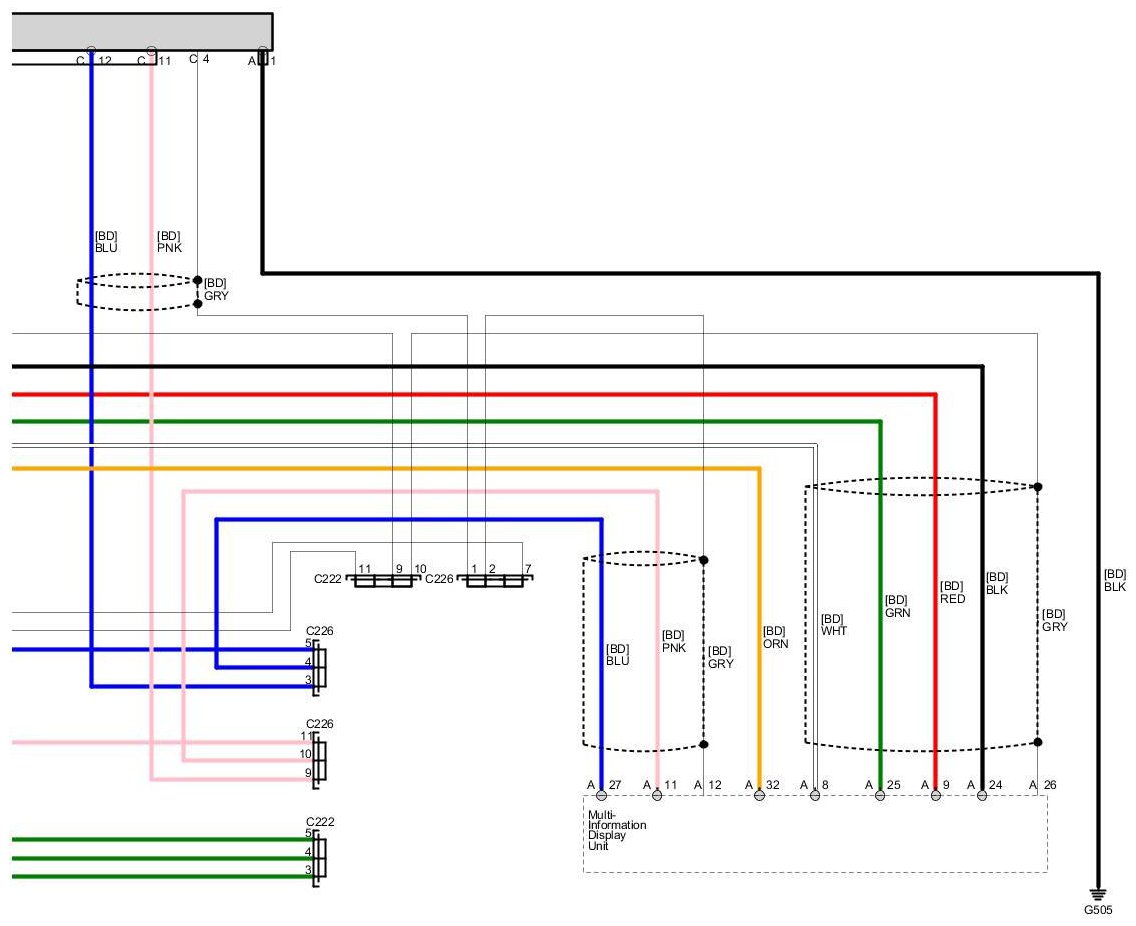

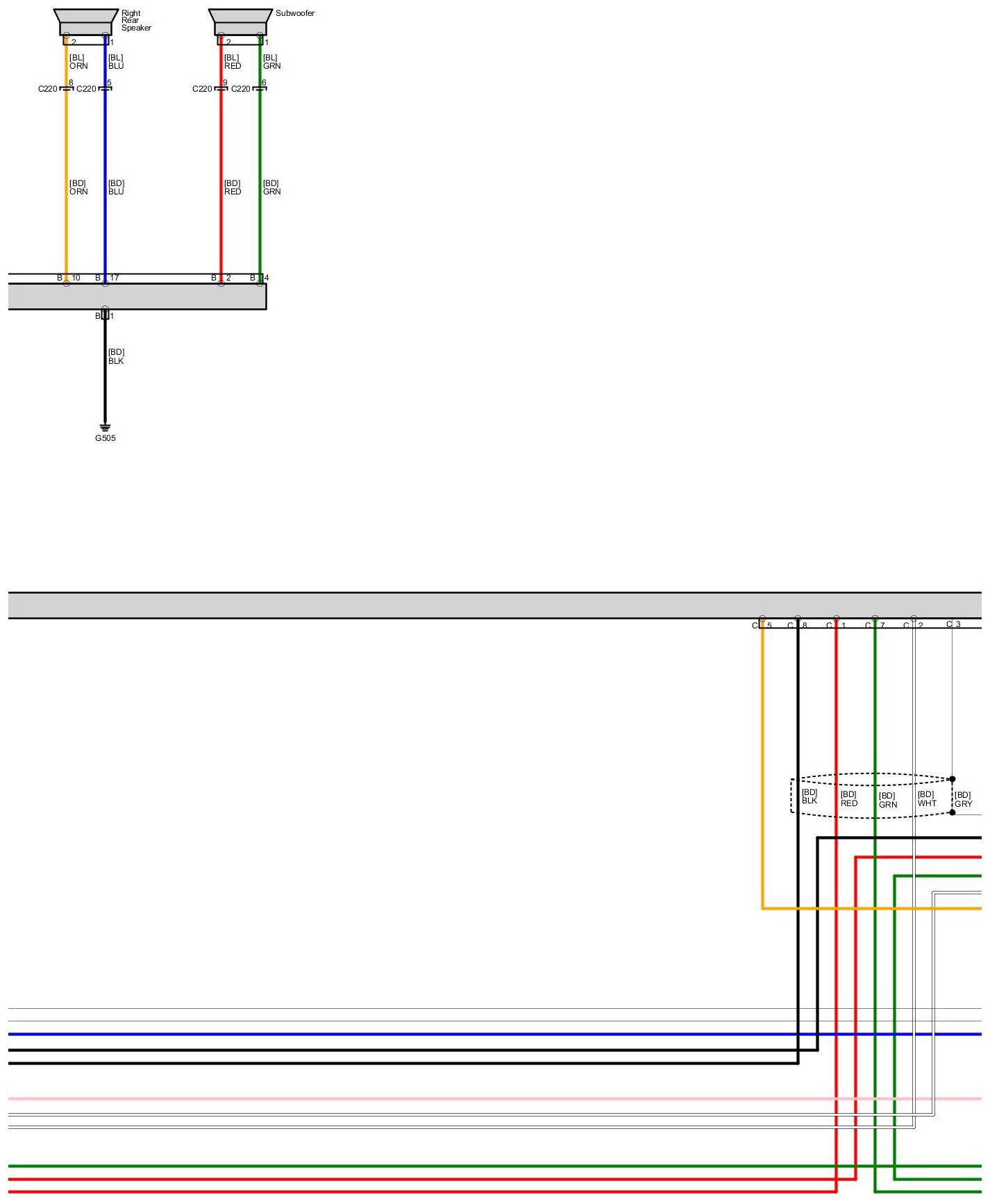

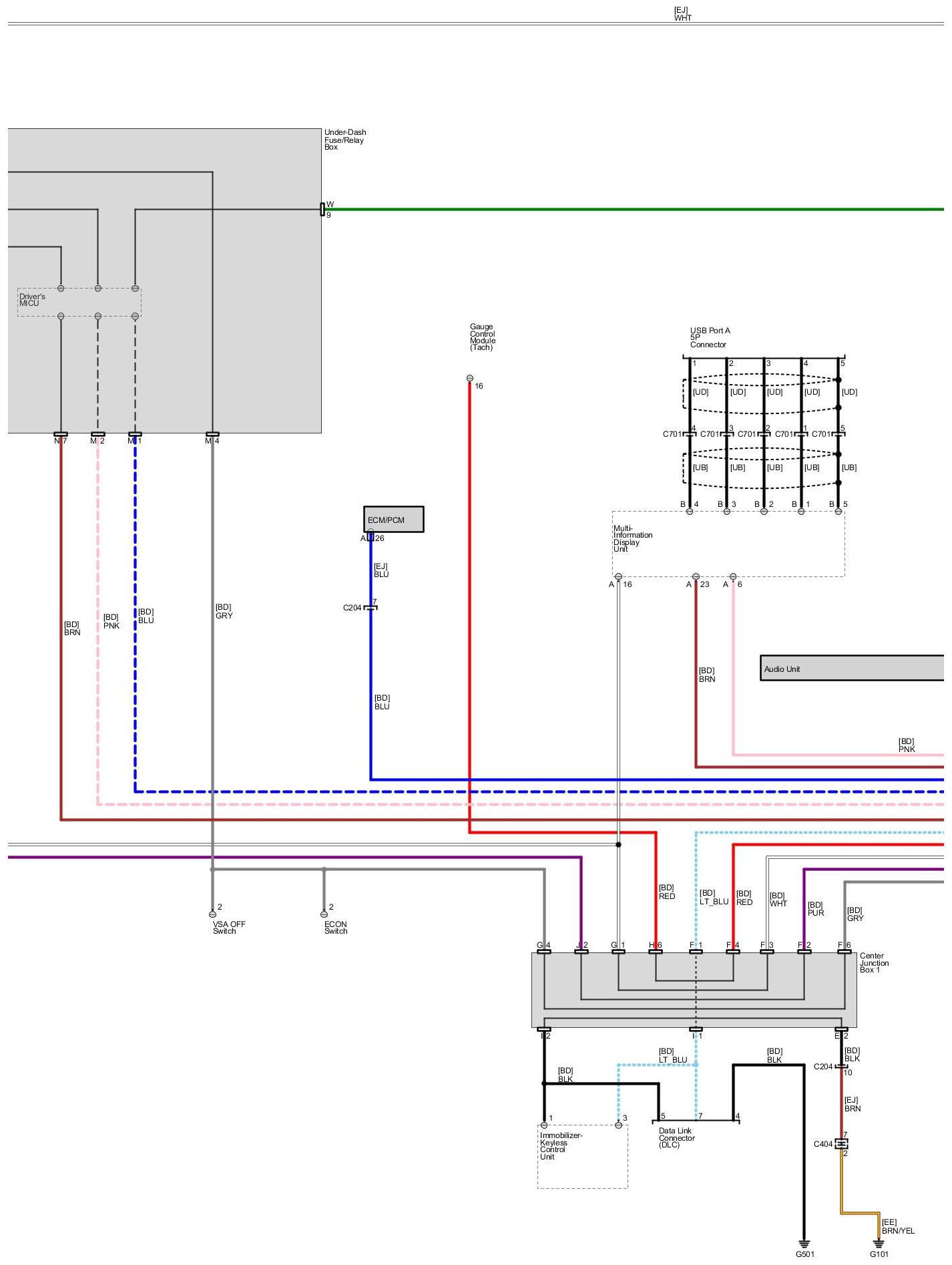

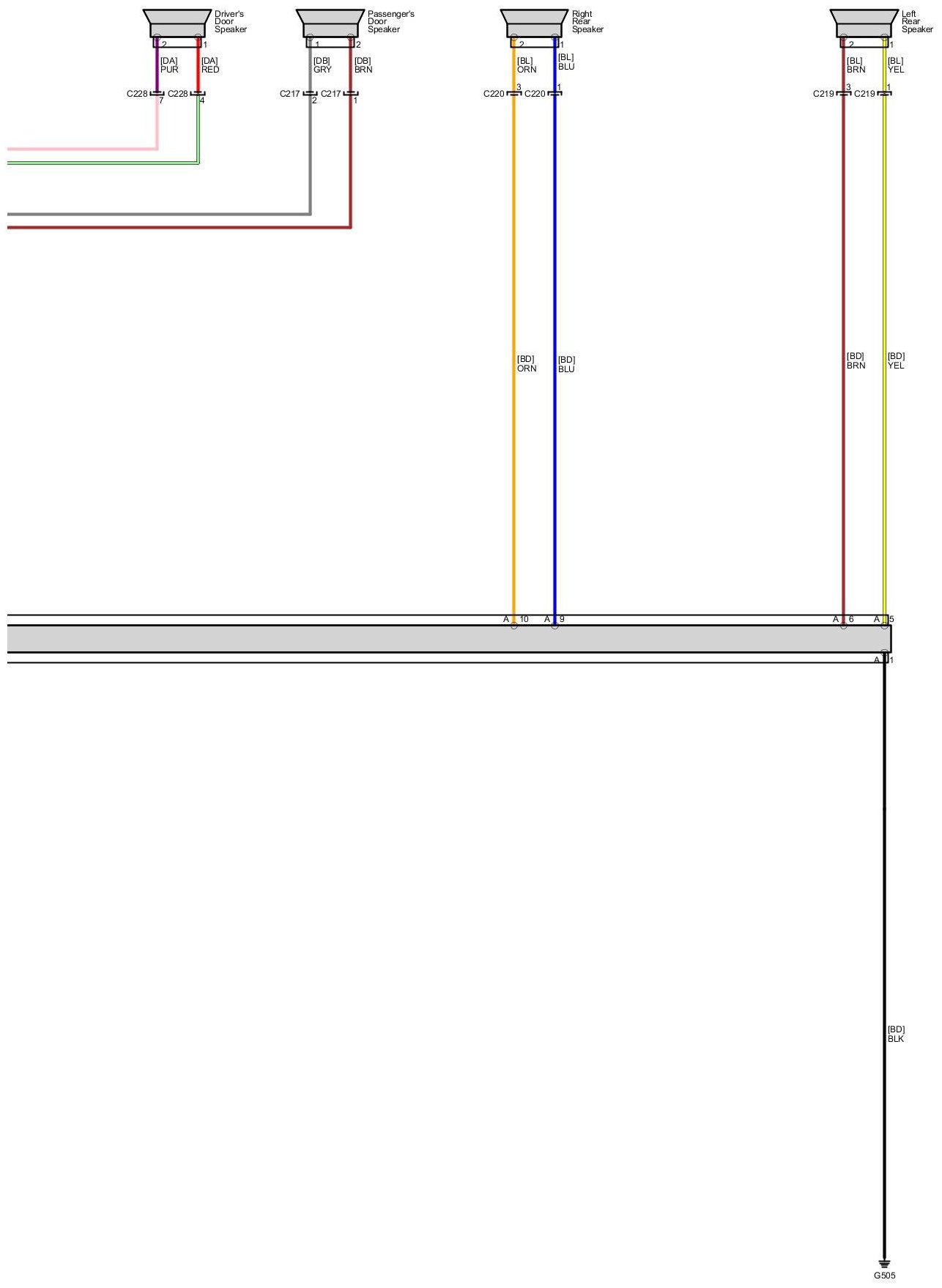

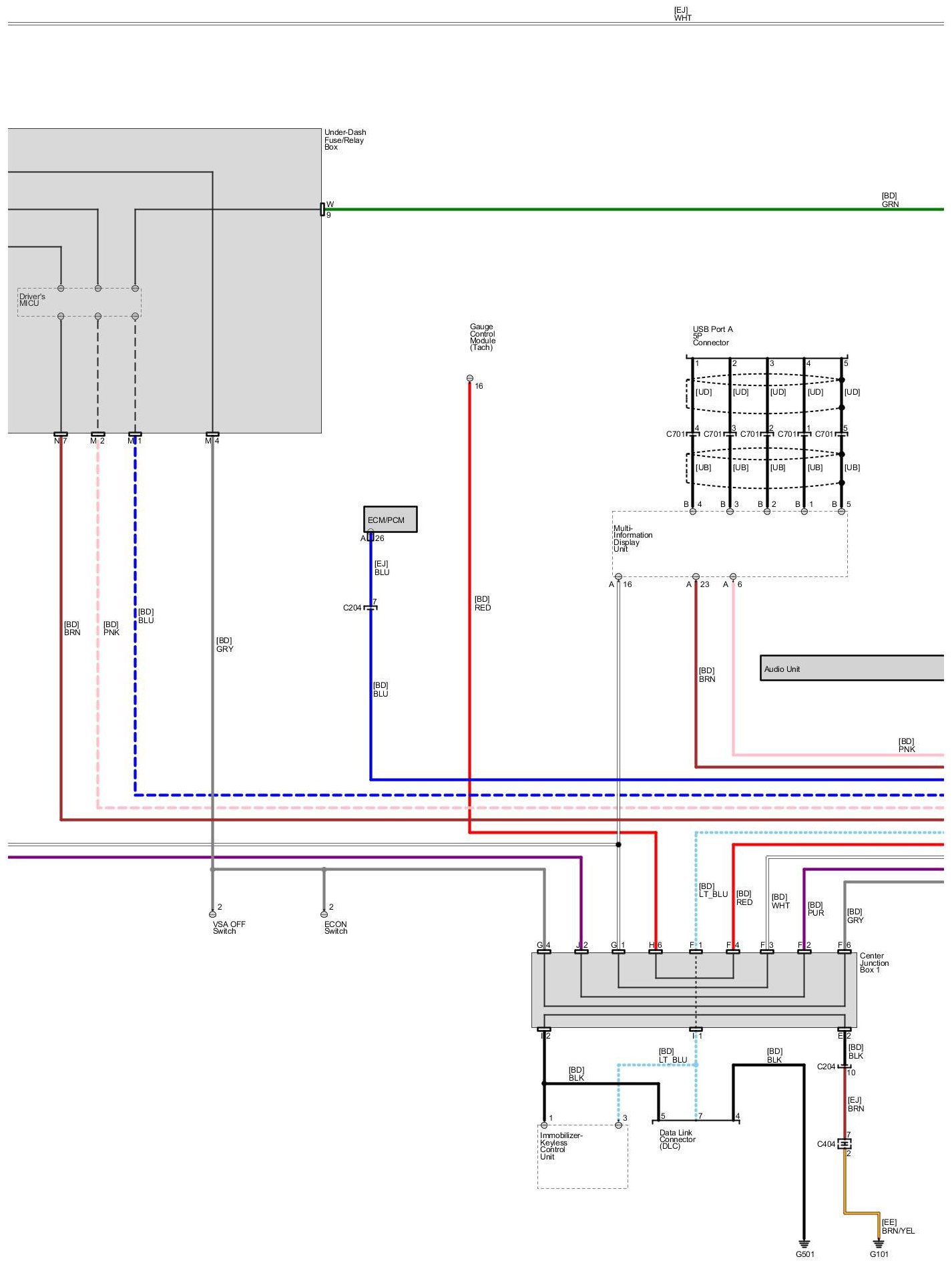

Audio and Visual System - Audio System


KL California Emissions, 2-door DX, FG3(1.8L_2door), AT Transmission















KL California Emissions, 2-door DX, FG3(1.8L_2door), AT Transmission with these options (Manual A/C)















KL California Emissions, 2-door LX, FG3(1.8L_2door), AT Transmission with these options (Cruise Control, Manual A/C)


















KL California Emissions, 2-door EX, FG3(1.8L_2door), AT Transmission with these options (Moonroof/Sunroof, Cruise Control, Manual A/C)





















KL California Emissions, 2-door EX, FG3(1.8L_2door), AT Transmission with these options (Moonroof/Sunroof, Navigation, Cruise Control, Manual A/C)





















KL California Emissions, 2-door EX-L, FG3(1.8L_2door), AT Transmission with these options (Moonroof/Sunroof, Cruise Control, Manual A/C, Seat Heater)





















KL California Emissions, 2-door EX-L, FG3(1.8L_2door), AT Transmission with these options (Moonroof/Sunroof, Navigation, Cruise Control, Manual A/C, Seat Heater)
