XM Receiver Removal and Installation






XM Receiver Removal and Installation

Removal

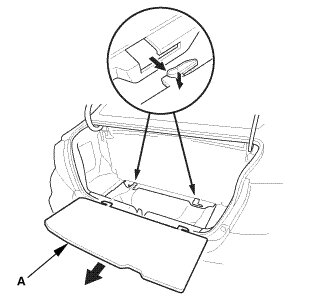

1. Trunk Floor Lid (Natural Gas Model)





1. Remove the trunk floor cover (A).

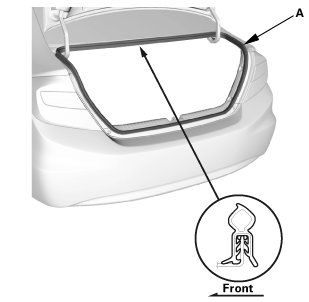

2. Trunk Lid Weatherstrip as Needed





1. Remove the trunk lid weatherstrip (A) as needed.

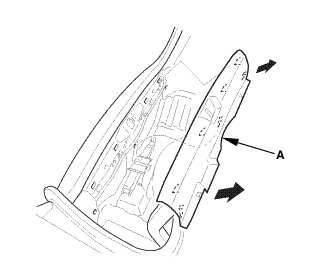

3. Trunk Rear Trim Panel (Natural Gas Model)





1. Remove the trunk rear trim panel (A).

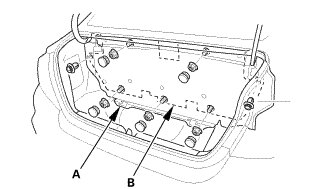

4. Trunk Front Trim Panel (Natural Gas Model)





1. Remove the trunk front trim panel (A) and the trunk partition (B) as an assembly.

5. Right Trunk Side Trim Panel as Needed (Natural Gas Model)





1. Remove the trunk side trim panel (A).

6. XM Receiver





1. Disconnect the connectors.

2. Loosen the mounting bolts, then remove the XM receiver (A).

Installation

1. XM Receiver





1. Install the XM receiver (A).

NOTE: If you are replacing the XM receiver, register the new XM receiver I.D. number with XM Radio, call 800-852-9696.

2. Connect the connectors.

2. Right Trunk Side Trim Panel as Needed (Natural Gas Model)





1. Install the trunk side trim panel (A).

3. Trunk Front Trim Panel (Natural Gas Model)





1. Install the trunk front trim panel (A) and the trunk partition (B) as an assembly.

4. Trunk Rear Trim Panel (Natural Gas Model)





1. Install the trunk rear trim panel (A).

5. Trunk Lid Weatherstrip as Needed





1. Install the trunk lid weatherstrip (A).

6. Trunk Floor Lid (Natural Gas Model)





1. Install the trunk floor cover (A).
