Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 2012 >> Civic Natural Gas L4-1.8L CNG >> Repair and Diagnosis >> Diagrams >> Harness >> Connector and Harness Locations >> Seat - Front Passengers Seat

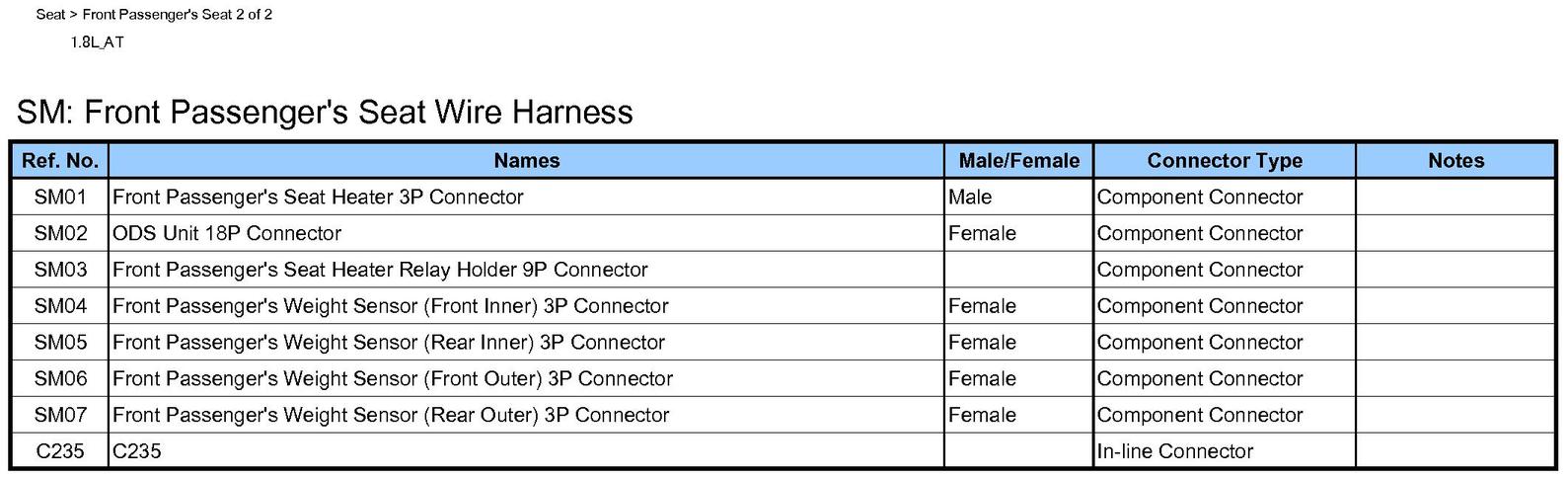

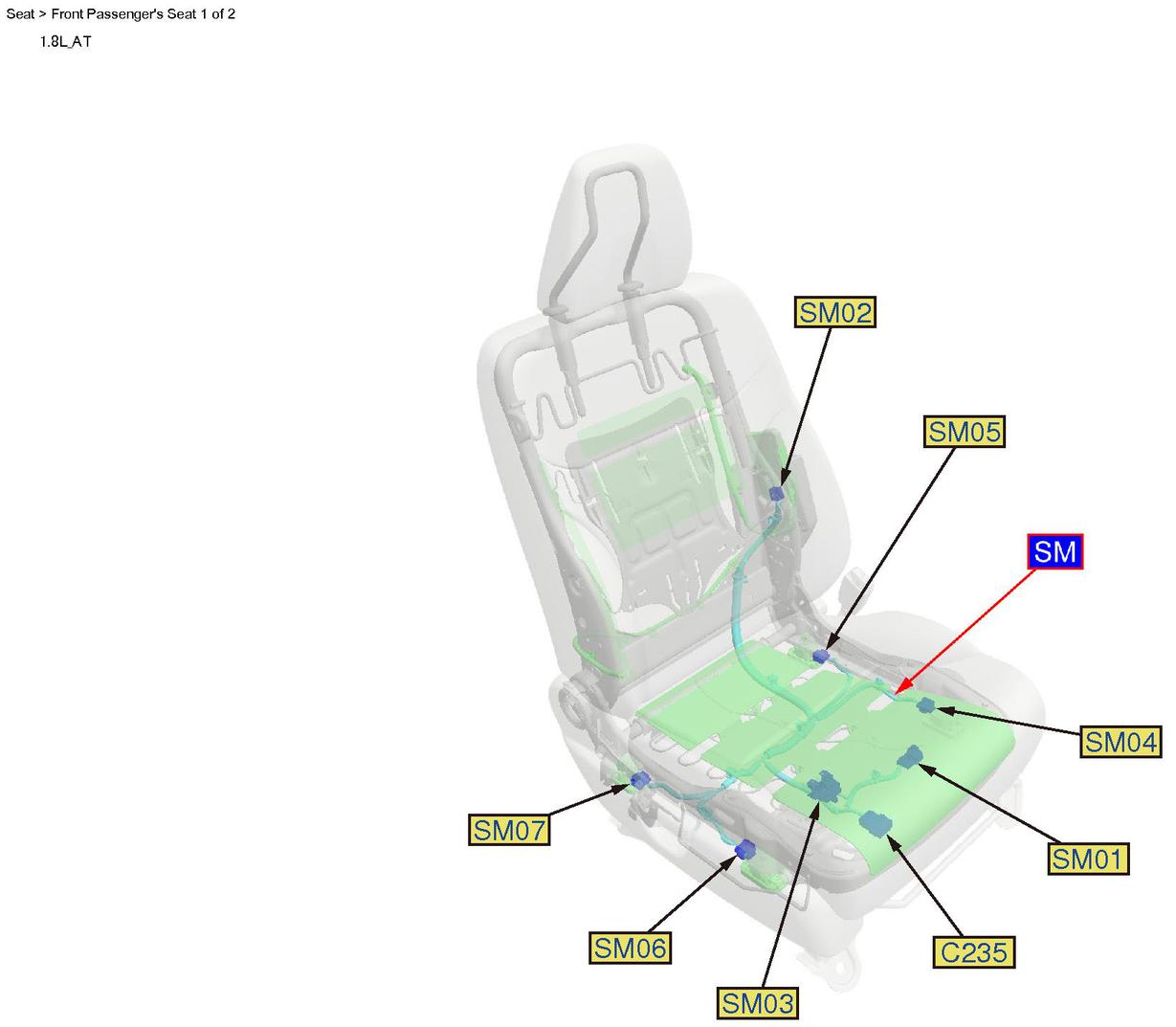

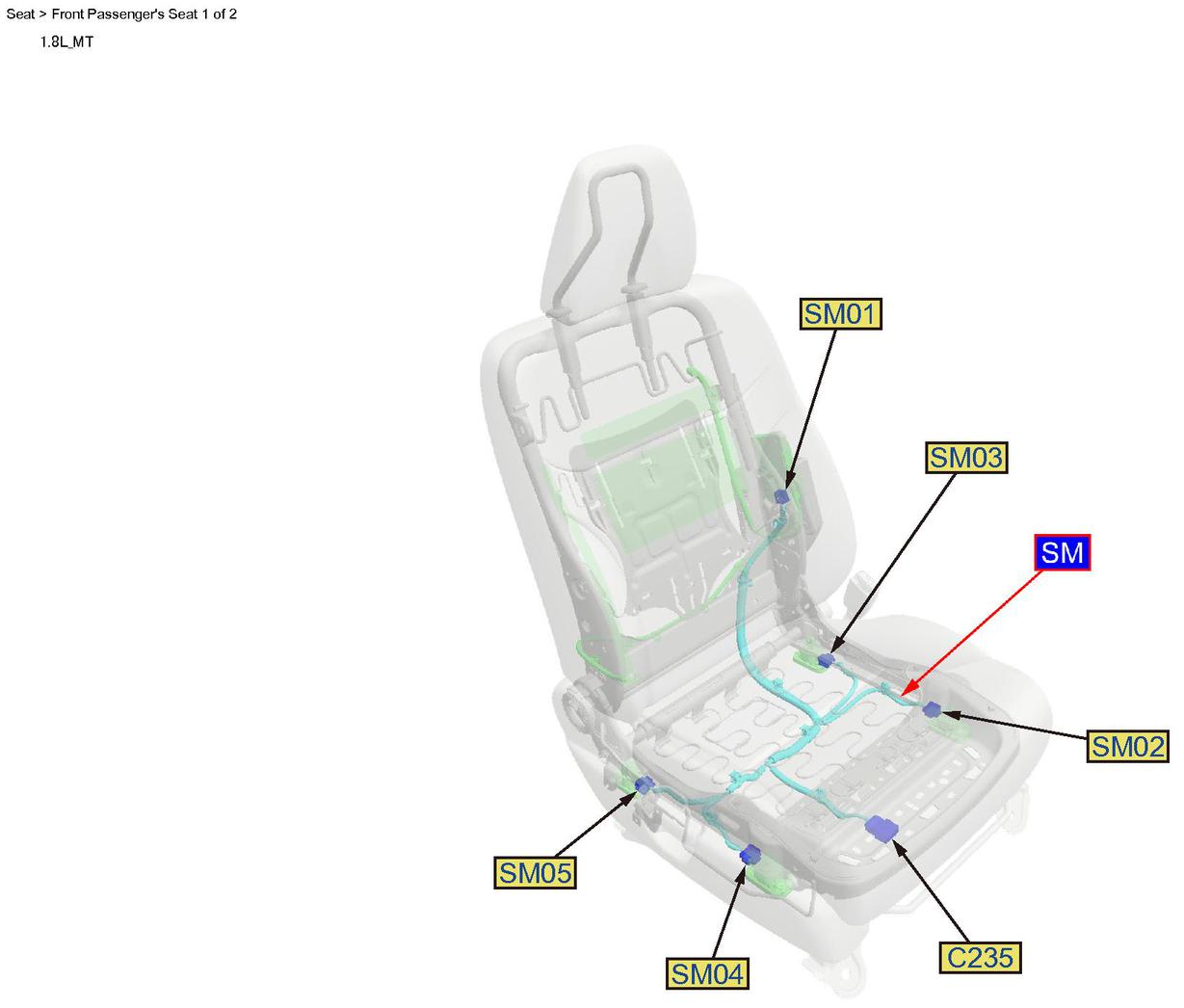

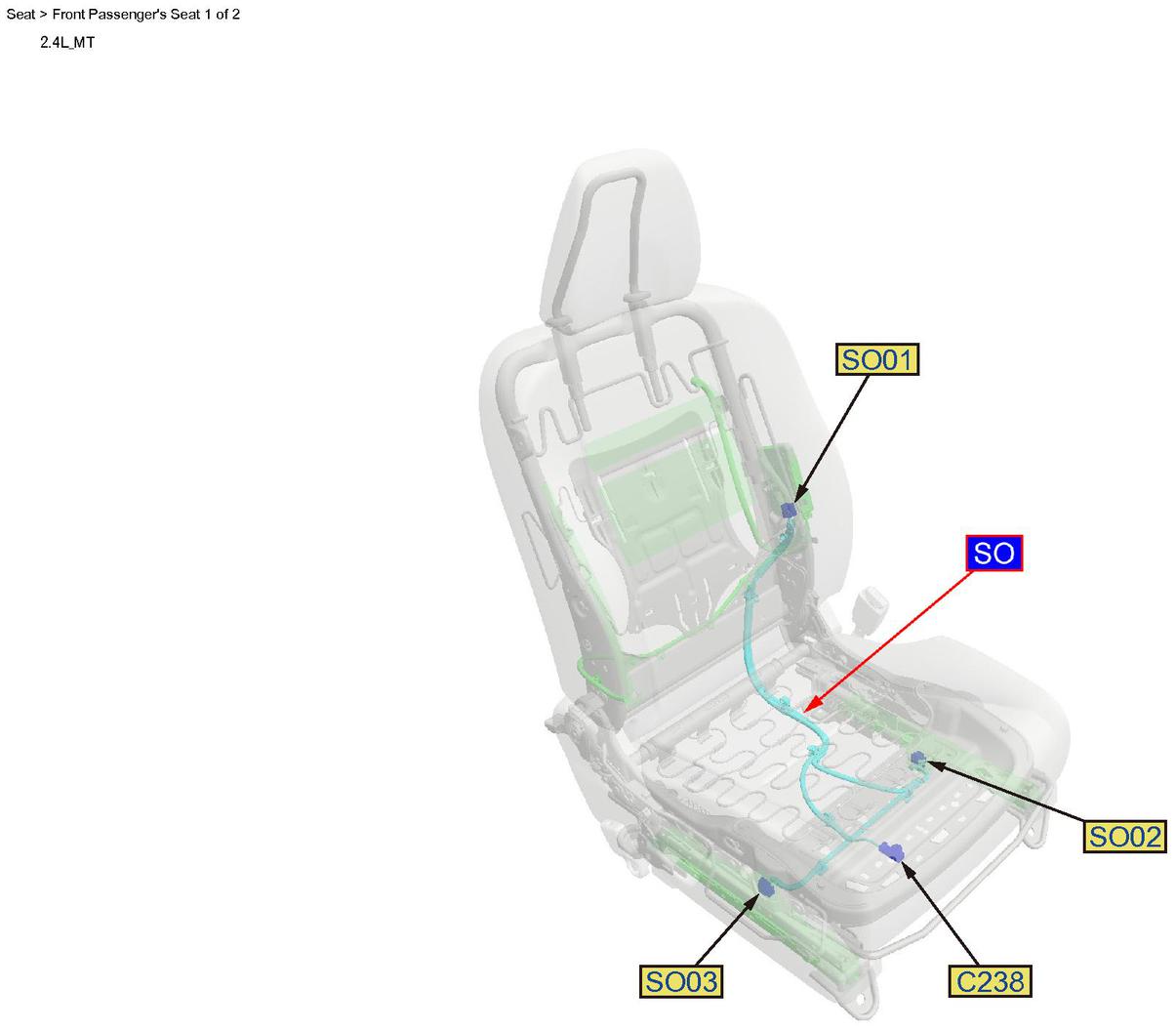

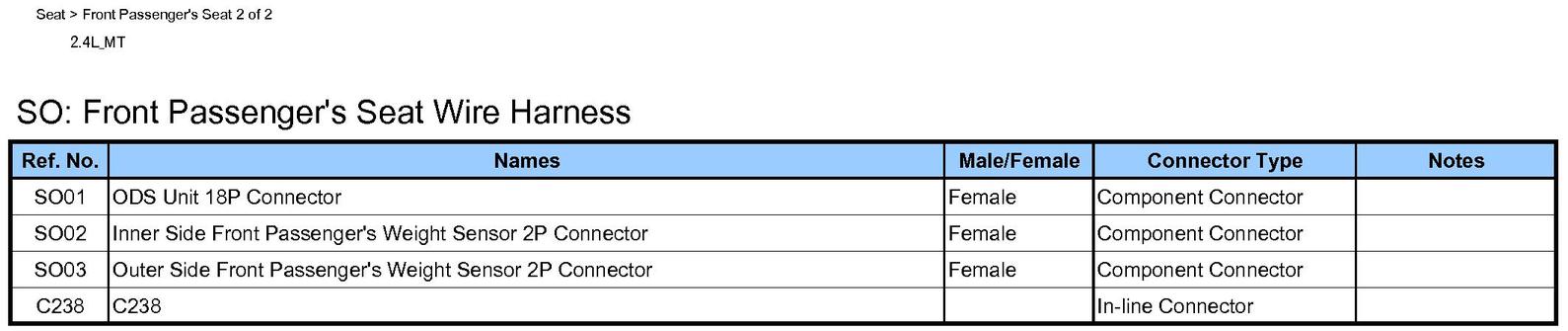

Seat - Front Passengers Seat
