Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
Civic Natural Gas L4-1.8L CNG
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

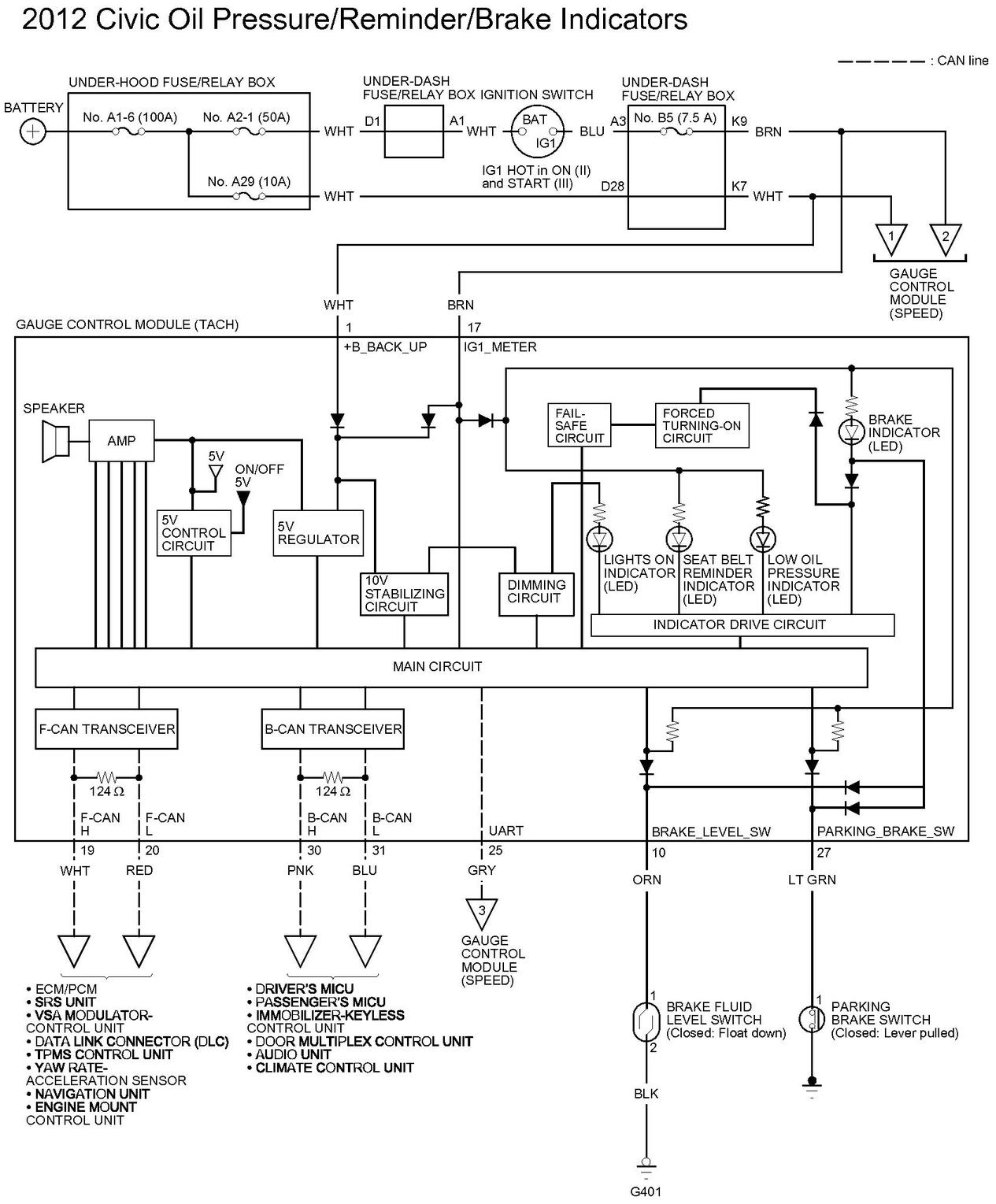

Low Oil Pressure Indicator, Reminder Systems, Safety Indicator Circuit Diagram
Low Oil Pressure Indicator, Reminder Systems, Safety Indicator Circuit Diagram
Low Oil Pressure Indicator, Reminder Systems, Safety Indicator Circuit Diagram
