Fuel Tank: Testing and Inspection

Fuel Tank Inspection

Removal

NOTE:
* You must be an SCI-certified technician to do fuel tank inspection or replacement work.
* You do not need to remove the fuel tank for the inspection.

1. Trunk Floor Lid (Natural Gas Model)

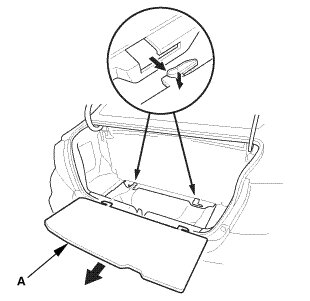

1. Remove the trunk floor cover (A).

2. Trunk Front Trim Panel (Natural Gas Model)

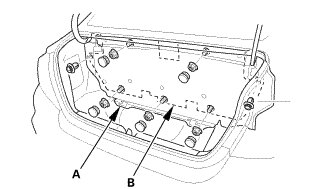

1. Remove the trunk front trim panel (A) and the trunk partition (B) as an assembly.

Inspection

1. Fuel Tank - Inspection (Natural Gas Model)





1. Check the fuel tank's expiration date at the label (A).

2. If the tank is expired, replace it.





3. Using a flashlight and an inspection mirror, thoroughly check the exterior of the fuel tank for any of these problems:

* Excessive rust on the bands or the mounting frame
* Abrasions
* Cuts
* Dents
* Expansion or deformation
* Evidence of overheating
* Loose fuel tank frame bolts, and loose fuel tank band bolts and nuts
* Incorrect alignment of the tank and bands

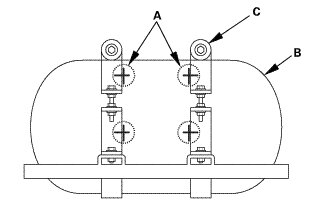

NOTE: The horizontal alignment of marks (A) on the tank (B) and the bands (C) do not need to be perfectly aligned.

Installation

1. Trunk Front Trim Panel (Natural Gas Model)





1. Install the trunk front trim panel (A) and the trunk partition (B) as an assembly.

2. Trunk Floor Lid (Natural Gas Model)





1. Install the trunk floor cover (A).
