Air Cleaner Housing: Service and Repair

Air Cleaner Removal and Installation

Removal

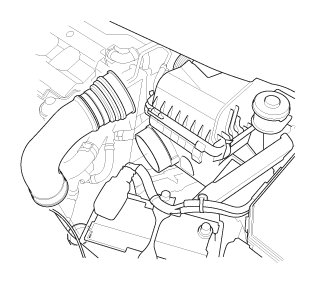

1. Intake Air Pipe





1. Remove the intake air pipe.

2. Air Cleaner

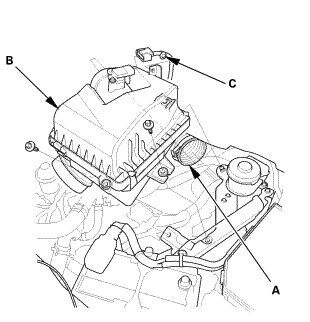

1. Disconnect the intake air duct (A).

2. Remove the air cleaner (B).

3. Remove the harness clamp (C).

Installation

1. Air Cleaner





1. Install the harness clamp (A).

2. Install the air cleaner (B).

3. Connect the intake air duct (C).

2. Intake Air Pipe





1. Install the intake air pipe.
