Transmission End Cover Air Check Valve Inspection

Transmission End Cover Air Check Valve Inspection

Removal

1. Transmission Range Switch Cover

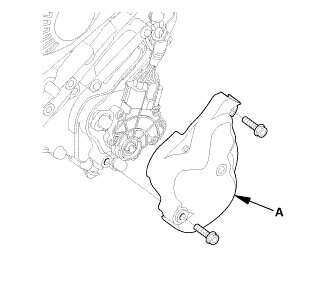

1. Remove the transmission range switch cover (A).

2. Transmission Range Switch





1. Disconnect the connector (A).

2. Remove the transmission range switch (B).

3. Transmission Range Switch Subharness

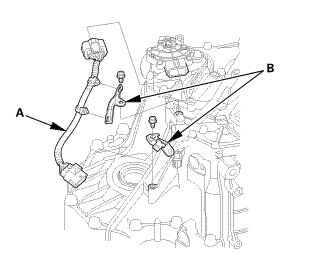

1. Remove the transmission range switch subharness (A).

2. Remove the clamp brackets (B).

4. ATF Warmer Bracket





1. Remove the ATF warmer bracket (A).

5. Transmission End Cover





1. Remove the end cover (A), the dowel pins (B), the O-rings (C), and the end cover gasket (D).

Inspection

1. Air Check Valve Inspection

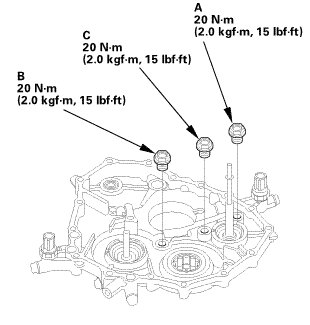

1. Check the 2nd air check valve (A), the 3rd air check valve (B), and the 5th air check valve (C) for clogging. If the filter is clogged, remove the air check valve(s), and clean the filter thoroughly by pouring clean ATF.

NOTE: Do not blow out the filter part of the air check valve with compressed air. Replace the air check valve, if the filter or the check valve is clogged or damaged.

2. If the air check valve(s) was removed, install the air check valve(s).

Installation

NOTE: Apply a light coat of clean ATF on all moving parts before installation.

1. Transmission End Cover

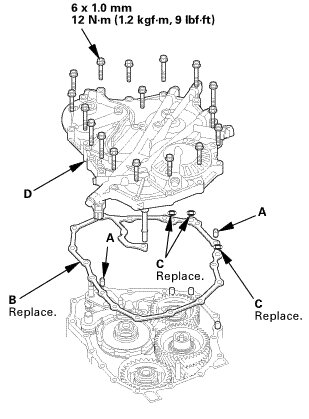

1. Install the dowel pins (A) and a new gasket (B).

2. Install new O-rings (C) over the ATF pipes.

3. Install the end cover (D).

2. ATF Warmer Bracket

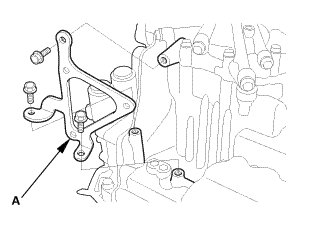

1. Install the ATF warmer bracket (A).

3. Transmission Range Switch Subharness





1. Install the clamp brackets (A).

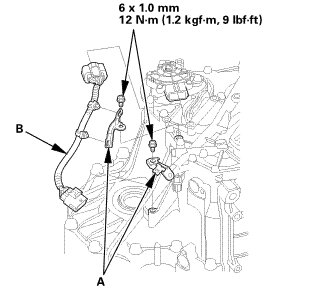

2. Install the transmission range switch subharness (B).

4. Transmission Range Switch

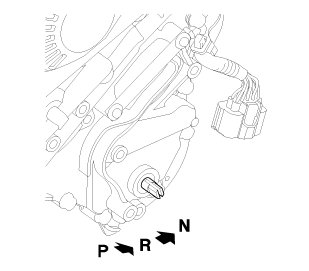

1. Make sure the selector control shaft is in the N position. If necessary, move the selector control shaft to the N position.

NOTE: Do not use the selector control shaft to adjust the shift position. If the selector control shaft tips are squeezed together it will cause a faulty signal or position due to play between the selector control shaft and switch.





2. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.079 in) feeler gauge blade (D) in the cutouts to hold the switch in the N position.

NOTE: Be sure to use a 2.0 mm (0.079 in) blade or equivalent to hold the switch in the N position.

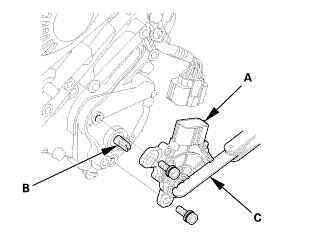

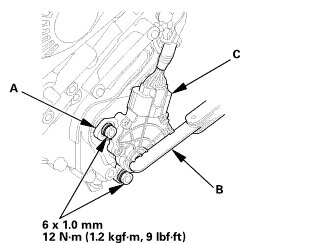

3. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.079 in) blade (C).





4. Tighten the bolts on the transmission range switch (A) while you continue holding the N position.

NOTE: Do not move the transmission range switch when tightening the bolts.

5. Remove the feeler gauge (B).

6. Check the connector (C) for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

5. Transmission Range Switch Cover

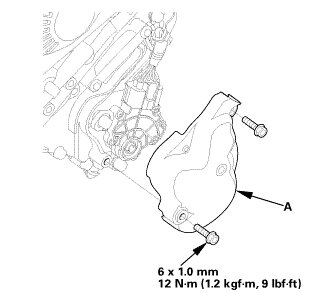

1. Install the transmission range switch cover (A).
