Mirror Housing Cover Removal and Installation

Mirror Housing Cover Removal and Installation

Removal

1. Mirror Holder





1. Release the hooks (A).





2. Remove the mirror holder (A).

3. For some models: Disconnect the connectors (B).

2. Mirror Housing Cover





1. Remove the screws (A).

NOTE: Turn the mirror housing (B), then remove the lower screw (C).

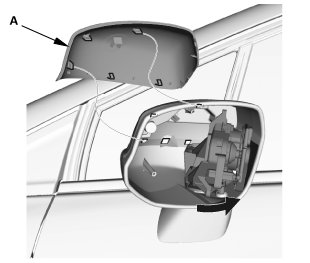

2. Remove the mirror housing cover (A).

Installation

1. Mirror Housing Cover





1. Install the mirror housing cover (A).





2. Install the screws (A).

2. Mirror Holder





1. Check the actuator rods (A) and the actuator boots (B).





2. For some models: Connect the connectors (A).

3. Install the mirror holder (B).
