Power Mirror Removal and Installation (4-door)

Power Mirror Removal and Installation

Removal

1. Front Door Power Window Switch Panel (4-door)





1. Remove the power window switch panel (A).

2. Front Door Panel - Driver's Side (4-Door)





1. Remove the inner handle cap (A).

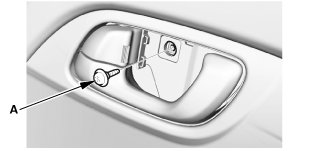

2. Remove the screw (A).





3. Remove the screw (A).





4. Remove the door panel (A).

3. Front Door Plastic Cover As Needed (4-door)





1. Detach the harness clip (A).

2. Remove the plastic cover (B) as needed.

4. Door Mirror





1. Disconnect the connector (A).

2. Detach the harness clip (B).





3. Remove the nuts (A).





4. Remove the door mirror (A).

Installation

1. Door Mirror





1. Install the door mirror (A).





2. Install the nuts (A).





3. Connect the connector (A).

4. Attach the harness clip (B).

2. Front Door Plastic Cover as Needed (4-door)





1. Install the plastic cover (A).

2. Attach the harness clip (B).

3. Front Door Panel - Driver's Side (4-Door)





1. Install the door panel (A).





2. Install the screw (A).





3. Install the screw (A).





4. Install the inner handle cap (A).

4. Front Door Power Window Switch Panel (4-door)





1. Install the power window switch panel (A).
