Front Seat Frame Removal and Installation - Driver's Seat

Removal

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Battery Terminal (SRS) - Disconnection





1. Make sure the ignition switch is in LOCK (0).

2. Disconnect and isolate the negative cable and battery sensor (A) from the battery (B).

NOTE: Always disconnect the negative side first.

3. Disconnect the positive cable (C) from the battery.

4. Wait at least 3 minutes before starting work.

2. Front Seat Belt Lower Anchor Bolt - Driver's Side





2-door

1. Remove the lower anchor cap (A).

2. Remove the lower anchor bolt (B).





4-door

1. Remove the anchor cover (A).





2. Remove the lower anchor bolt (A).

3. Head Restraint





1. Remove the headrest restraint (A).

4. Front Seat - Driver's Side





1. Remove both seat track end covers (A).

Front side





Rear side





2. Remove the seat mounting bolts (A).

Power seat





Manual seat





3. Disconnect the connectors (A).

4. Detach the clips (B).

5. Front Cover - Driver's Side





1. Power seat: Remove the front cover (A).

6. Front Seat Height Adjuster Handle - Driver's Side





1. Manual seat with height adjuster: Remove the height adjuster handle (A).

7. Front Seat Recline Cover - Driver's Side

Power seat





Manual seat





1. Manual seat: Remove the recline knob (A).

2. Remove the recline cover (B).

8. Front Seat Center Cover - Driver's Side

Power seat





Manual seat





1. Remove the center cover (A).

9. Front Seat Cushion - Driver's Side

2-door, 4-door (power seat)





4-door (manual seat)





1. Release the strap(s) (A).

Power seat





Manual seat with seat heater





2. With seat heater: Disconnect the connectors (A).

3. With seat heater: Remove the clips (B).

4. With seat heater: Remove the holders (C).

5. Power seat: Disconnect the connectors (D).

6. Power seat: Remove the clips (E) and the holders (F).





7. Power seat: Pull out the harnesses (A) through the holes (B)





8. Manual seat: Release the hook and loop fasteners (A).

Power seat





Manual seat





9. Release the hook strips (A).

Power seat





Manual seat





10. Release the hook strips (A).





11. Remove the seat cushion cover/pad (A).

10. Front Seat-Back As Needed - Driver's Side

2-door, 4-door (power seat)





4-door (manual seat)





1. Release the strap(s) (A).

2-door, 4-door (manual seat)





4-door (power seat)





2. Detach the connector clip (A) and the harness clips (B), and release the holder(s) (C).

3. With seat heater: Disconnect the connector (D), and detach the harness clip(s) (E), then release the holder(s) (F).

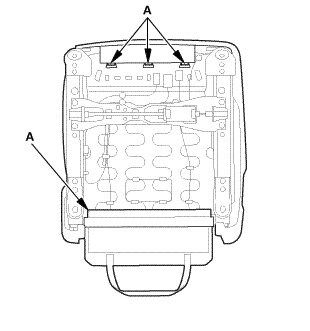

4. Unzip the seat-back cover (A).

5. Release the hook strip (B).





6. Release the hook strips (A).





7. Detach the harness clip(s) (A).

8. Pull out the harness(es) (B).





9. Release airbag attachment wires A and B.





10. Release the hooks (A).

11. Headrest Guides





1. Remove the headrest guides (A).

12. Front Seat-Back Cover/Pad - Driver's Side





1. Remove the seat-back cover/pad (A).

13. Side Airbag





1. Remove the side airbag (A).

14. Front Seat Belt Buckle - Driver's Side





1. Remove the front seat belt buckle (A).

15. Front Seat Frame - Driver's Side

Power seat (side)





Power seat (rear)





Manual seat





1. Remove the upper rail covers (A).

Power seat





Manual seat





2. Remove the recline inner covers (A).
