Installation

Front Seat Frame Removal and Installation - Passenger's Seat

Installation

1. Front Seat Frame - Passenger's Side

2-door

4-door

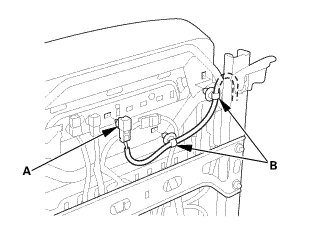

1. Install the connector clips (A) and the harness clips (B).

2. Install the wire ties (C).

3. Connect the connectors (D).

4. Install the recline inner covers (A).

5. Install the upper rail covers (A).

6. 2-door: Install the front rail cover (A).

7. 2-door: Install both rear rail covers (A).

2. Front Seat Belt Buckle - Passenger's Side

1. Assemble the washers and the collar on the center anchor bolt as shown.

NOTE:
* Apply medium strength liquid thread lock to the center anchor bolt before reinstallation.
* Tighten the bolts by hand first, then tighten to the specified torque.

2. Install the seat belt buckle (A).

3. Install the connector clip (A) and the harness clip(s) (B).

3. OPDS Unit

NOTE:
* Be sure to install the harness so that they are not pinched or interfering with other parts.
* Make sure that the seat-back cover/pad is installed properly. Improper installation may prevent proper deployment.

1. Install the OPDS unit (A).

4. ODS UNIT

NOTE:
* If the side airbag lid is secured with tape, remove the tape.
* Do not open the lid on the side airbag cover.
* Make sure that the seat-back cover/pad is installed properly. Improper installation may prevent proper deployment.
* Be sure to install the harness so that they are not pinched or interfering with other parts.

1. Install the side airbag (A), then tighten the new mounting nuts.

2. Install the clip (B).

6. Front Seat-Back Cover/Pad - Passenger's Side

1. Install the seat-back cover/pad (A).

7. Head Restraint Guide - Passenger's Side

1. Install the head restraint guides (A).

8. Front Seat-Back As Needed - Passenger's Side

1. Install the hooks (A).

2. Install the harness clips (B).

3. Connect the connectors (A).

4. Install the cover (A).

5. Install airbag attachment wires A and B.

6. Install the harness (A) through the hole (B).

7. Install the harness clip (C).

8. Install the hook strips (A).

9. Install the hook strip (A).

10. Zip the seat-back cover (B).

11. Install the connector clip (A).

12. Install the harness clip (B).

13. Install the holders (C).

2-door

4-door

14. Install the strap(s) (A).

9. Front Seat Cushion - Passenger's Side

1. Install the hook strips (A).

2. Install the hook strips (A).

3. Install the Velcro fasteners (A).

4. With seat heater: Install the holders (A).

5. With seat heater: Install the harness clip (B).

6. With seat heater: Connect the connector (C).

7. Install the hooks (D).

10. Front Seat Center Cover - Passenger's Side

1. Install the center cover (A).

11. Front Seat Recline Cover - Passenger's Side

1. Install the recline cover (A).

2. Install the recline knob (B).

3. 2-door: Install the rear seat access knob (A).

12. Front Seat Assembly - Passenger's Side

1. Connect the connectors (A).

Front side

Rear side

2. Install the seat mounting bolts (A).

NOTE:
* Tighten the bolts by hand first, then tighten them to specified torque.
* Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten 1 and 2, then slide it forward and tighten 3 and 4.

2-door

4-door

3. Install both seat track end covers (A).

13. Head Restraint - Passenger's Side

1. Install the head restraint (A).

14. Front Seat Belt Lower Anchor Bolt - Passenger's Side

2-door

1. Assemble the washer, the collar, and the bushing on the lower anchor bolt as shown.

NOTE: Apply medium strength liquid thread lock to the lower anchor bolt before reinstallation.

2. Install the lower anchor bolt (A).

4-door

1. Install the lower anchor bolt (A).

2. Install the anchor cover (A).

15. Battery Terminal (SRS) - Reconnection

NOTE: If the battery performs abnormally, test the battery.

1. Clean the battery terminals.

2. Connect the positive cable (A) to the battery (B).

NOTE: Always connect the positive side first.

3. Connect the negative cable and battery sensor (C) to the battery.

4. Apply multipurpose grease to the terminals to prevent corrosion.

16. HDS DLC - Connection

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

17. DTC - Clear

1. Clear the DTC(s) by following the screen prompts on the HDS.

2. Turn the ignition switch to LOCK (0), then wait for 10 seconds.

18. OPDS Sensor Initialization

OPDS Sensor Initialization

When you replace the front passenger's seat-back cover/pad, the SRS unit, and/or the ODS unit, initialize the OPDS sensor with the HDS.

NOTE:
* Before initializing the ODS unit, make sure the battery is fully charged.
* A new (uninitialized) ODS unit installed with a faulty OPDS sensor (DTC 86-1x or 86-2x) can cause DTCs 85-71 and 85-78. If the SRS has a hard DTC 86-1x or 86-2x, troubleshoot the DTCs completely before replacing the ODS unit.
* Make sure all components of the front passenger's seat are correctly installed.
* Make sure nothing is on the front passenger's seat, including aftermarket seat covers or mats.
* Make sure there is nothing in the front passenger's seat-back pocket.
* Dehumidify inside of the vehicle with A/C.

1. Set the seat-back in a normal position.

2. From the HDS Main Menu, select SRS, then INITIALIZATION. In the INITIALIZATION Menu, select ODS Initialization. Follow the prompts until the OPDS sensor initialization has been completed.

3. Turn the ignition switch to LOCK (0), then wait for 10 seconds.

NOTE: If the ODS unit fails to initialize after several attempts, replace the seat-back cover/pad equipped with an OPDS sensor, and retry. If the ODS unit continues to fail to initialize, replace the ODS unit.
