Rear Seat Armrest Removal and Installation

Rear Seat Armrest Removal and Installation

Removal

1. Rear Seat Armrest

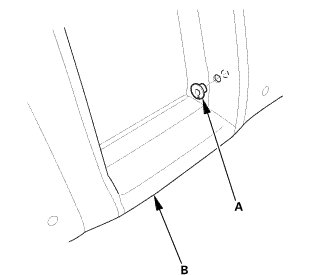

1. Remove the clip (A) from the pivot shaft (B).





2. Release the pivot shaft (A) from the collar (B).





3. Release the pivot shaft (A) from the collar (B), then remove the rear seat armrest (C).





4. Remove the collar (A) from the rear seat-back (B).

Installation

1. Rear Seat Armrest





1. Install the collar (A) to the rear seat-back (B).





2. Install the pivot shaft (A) to the collar (B).





3. Install the pivot shaft (A) to the collar (B).





4. Install the clip (A) to the pivot shaft (B).
