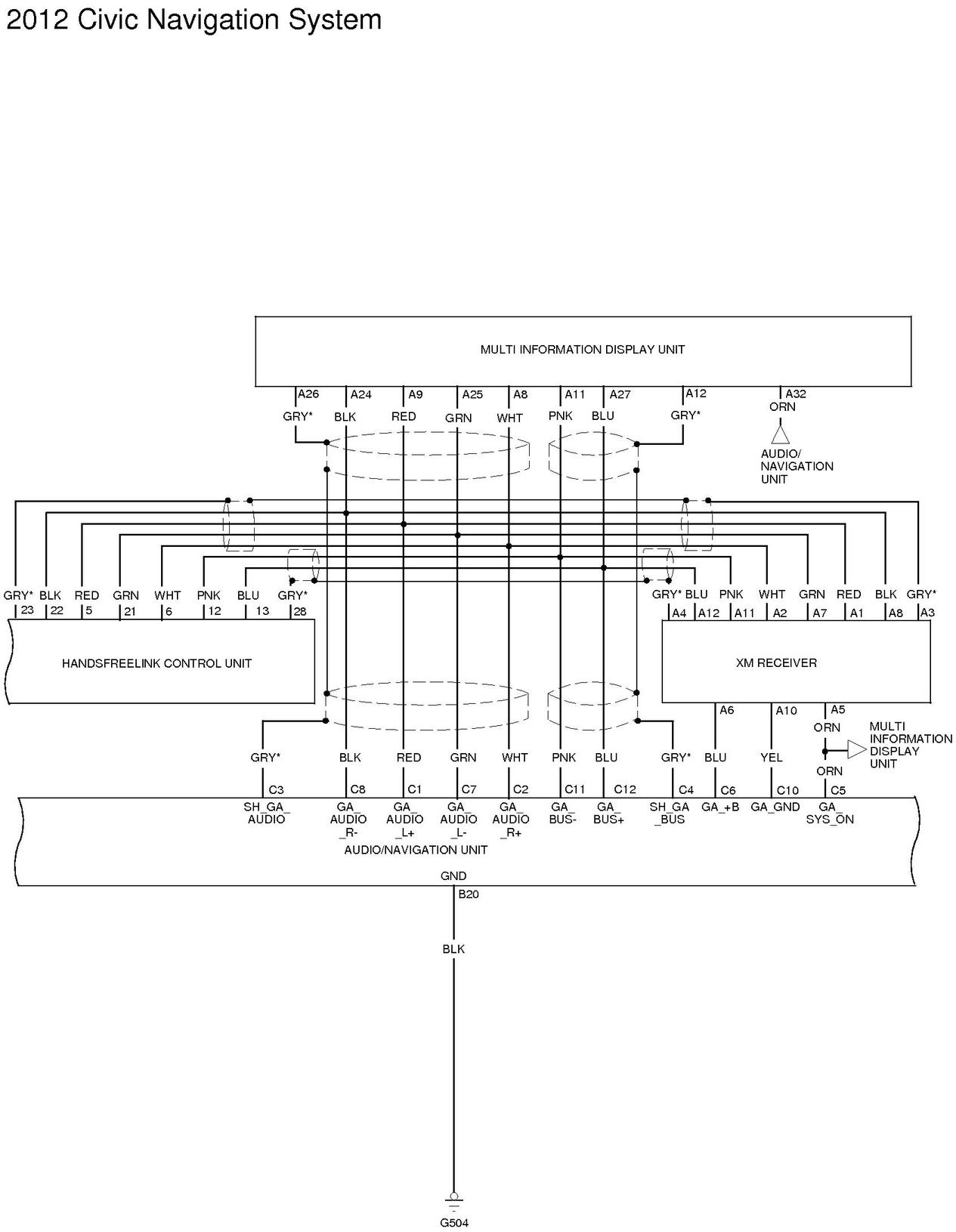

Navigation System Circuit Diagram (With Navigation)
Navigation System Circuit Diagram (With Navigation)
Navigation System
Circuit Diagram (With Navigation)
