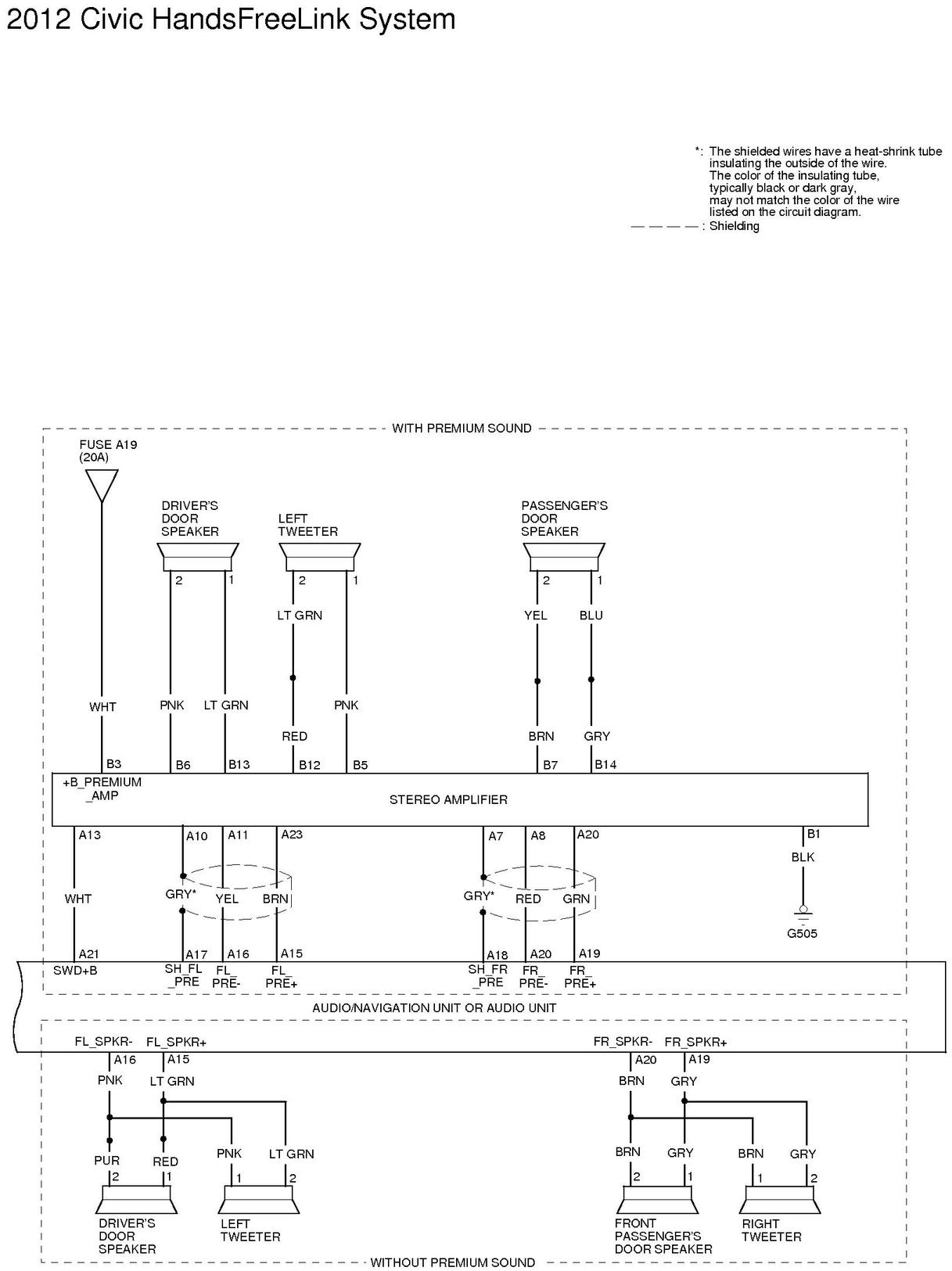

HFL System (HandsFreeLink System) Circuit Diagram (HFL)




HFL System (HandsFreeLink System) Circuit Diagram (HFL)
