Gauge Control Module (Speedo) Removal and Installation

Gauge Control Module (Speedo) Removal and Installation

Removal

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Driver's Dashboard Lower Cover





1. Remove the driver's dashboard lower cover (A).

2. Dashboard Subdisplay Visor





1. Remove the dashboard subdisplay visor (A).

3. Front Door Opening Seal as Needed





1. Remove the front door opening seal (A) as needed.

4. A-Pillar Trim Both





1. Pull out the A-pillar trim (A) to release the clips.





2. Put a shop towel (A) in the opening between the A-pillar trim (B) and the dashboard to prevent dropping the A-pillar clips.

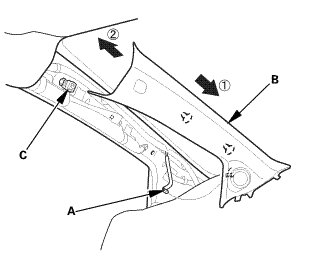

3. Disconnect the connector (A), then remove the A-pillar trim (B).

NOTE: The upper clip (C) will stay in the body.





4. Remove the upper clip (A) from the body.

5. Repeat on the opposite side.

5. Dashboard Meter Visor





1. Remove the dashboard meter visor (A).

6. Information Display Unit





1. Remove the information display unit (A).

2. Disconnect the connectors.

7. Multi-Information Display Unit





1. Remove the multi-information display unit (A).

2. Disconnect the connectors.

8. Gauge Control Module - Speedo





1. Remove the gauge control module (speedo) (A).

2. Disconnect the connector.

Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Gauge Control Module - Speedo





1. Connect the connector.

2. Install the gauge control module (speedo) (A).

2. Information Display Unit





1. Connect the connectors.

2. Install the information display unit (A).

3. Multi-Information Display Unit





1. Connect the connectors.

2. Install the multi-information display unit (A).

4. Dashboard Meter Visor





1. Install the dashboard meter visor (A).

5. A-Pillar Trim Both





1. Carefully install the new upper clip (A) to the A-pillar trim (B).





2. Connect the connector (A).

3. Fit the clips into the holes in the A-pillar.

4. Lightly push the A-pillar trim (B) into place, then install the trim.

NOTE:
* Make sure the side curtain airbag is not tucked under the clips or the trim ribs.
* Do not push too hard on the A-pillar trim. If you push too hard, the clip will be damaged, and it will not hold the trim properly.
* Gently tug on the A-pillar trim to verify that all clips are securely fastened.

5. Repeat on the opposite side.

6. Front Door Opening Seal as Needed





1. Install the front door opening seal (A).

7. Dashboard Subdisplay Visor





1. Install the dashboard subdisplay visor (A).

8. Driver's Dashboard Lower Cover





1. Install the driver's dashboard lower cover (A).
